1 st Point Scaled Value: The scaled value of the 1
2 nd Point Scaled Value: The scaled value of the 2
Scaled Unit: The unit of the scaled value (max. length = 8, "." is not allowed).
RTD Channel Settings

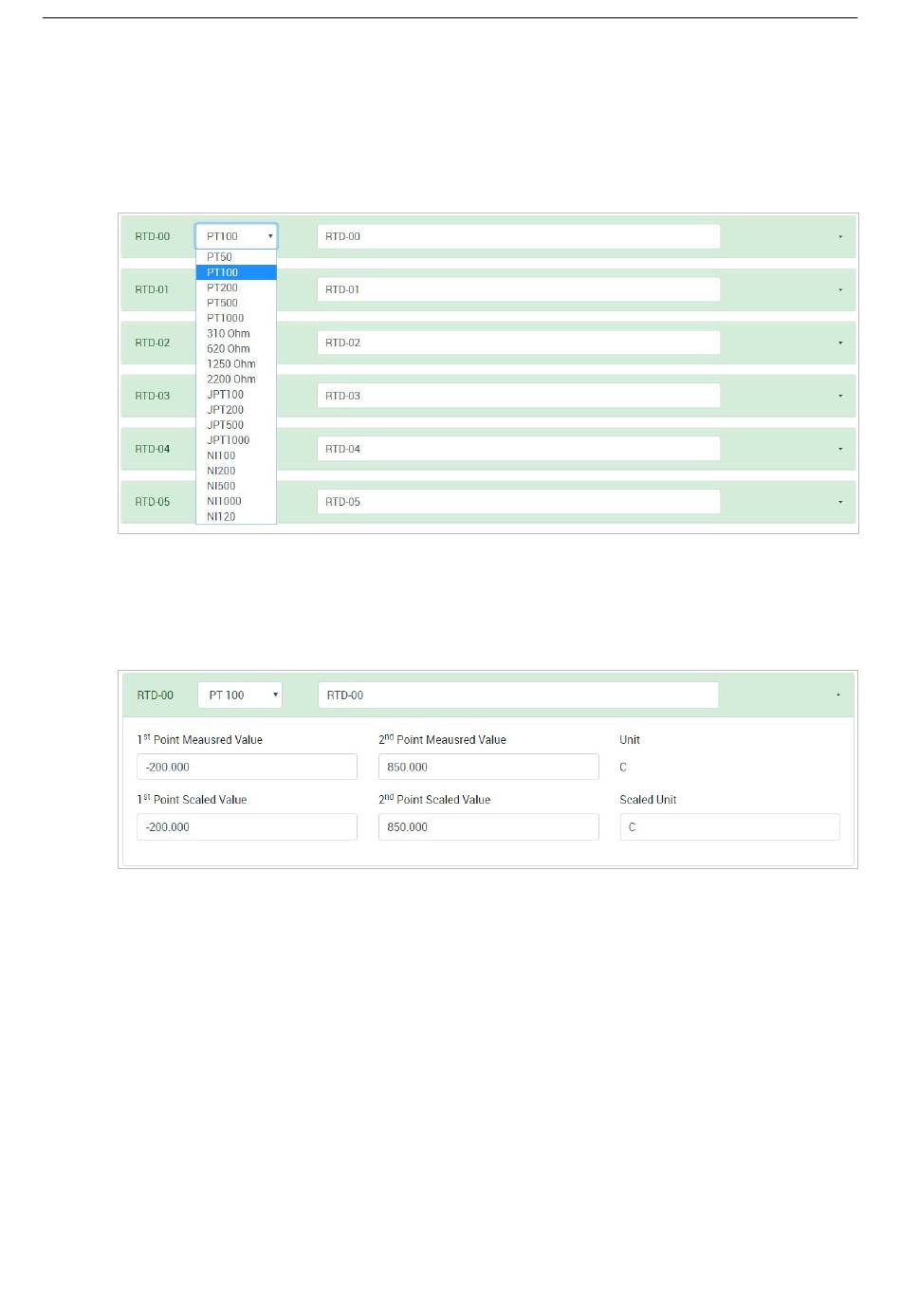

Sensor Type Drop-Down List: It lists all of the sensor types, which can be connected to this channel. Select
the sensor type for each channel (option: PT50, PT100, PT200, PT500, PT1000, 310 ohms, 620 ohms, 1250
ohms, 2200 ohms, JPT100, JPT200, JPT500, JPT1000, NI100, NI200, NI500, NI1000, or NI120).
Channel Name: The channel name is used for representing this channel (max. length = 16, "." is not allowed).
st
1 Point Measured Value: The 1
Scaled Value (acceptable input value depends on the type of sensor).
2 nd Point Measured Value: The 2
Scaled Value (acceptable input value depends on the type of sensor).
Unit: The unit of the measured value.
st
1 Point Scaled Value: The scaled value of the 1
nd
2 Point Scaled Value: The scaled value of the 2
Scaled Unit: The unit of the scaled value (max. length = 8, "." is not allowed).
st point (-4294967295 to 4294967295).
nd point (-4294967295 to 4294967295).
st
point value in the range of channel mode to be scaled to the 1st Point
nd point value in the range of channel mode to be scaled to the 2nd Point
st
point (-4294967295 to 4294967295).
nd
point (-4294967295 to 4294967295).
