Dashboard

The dashboard provides information about the system, modules, I/Os, and the connection status. It also allows
you to exit the safe mode status or to change the I/O status.

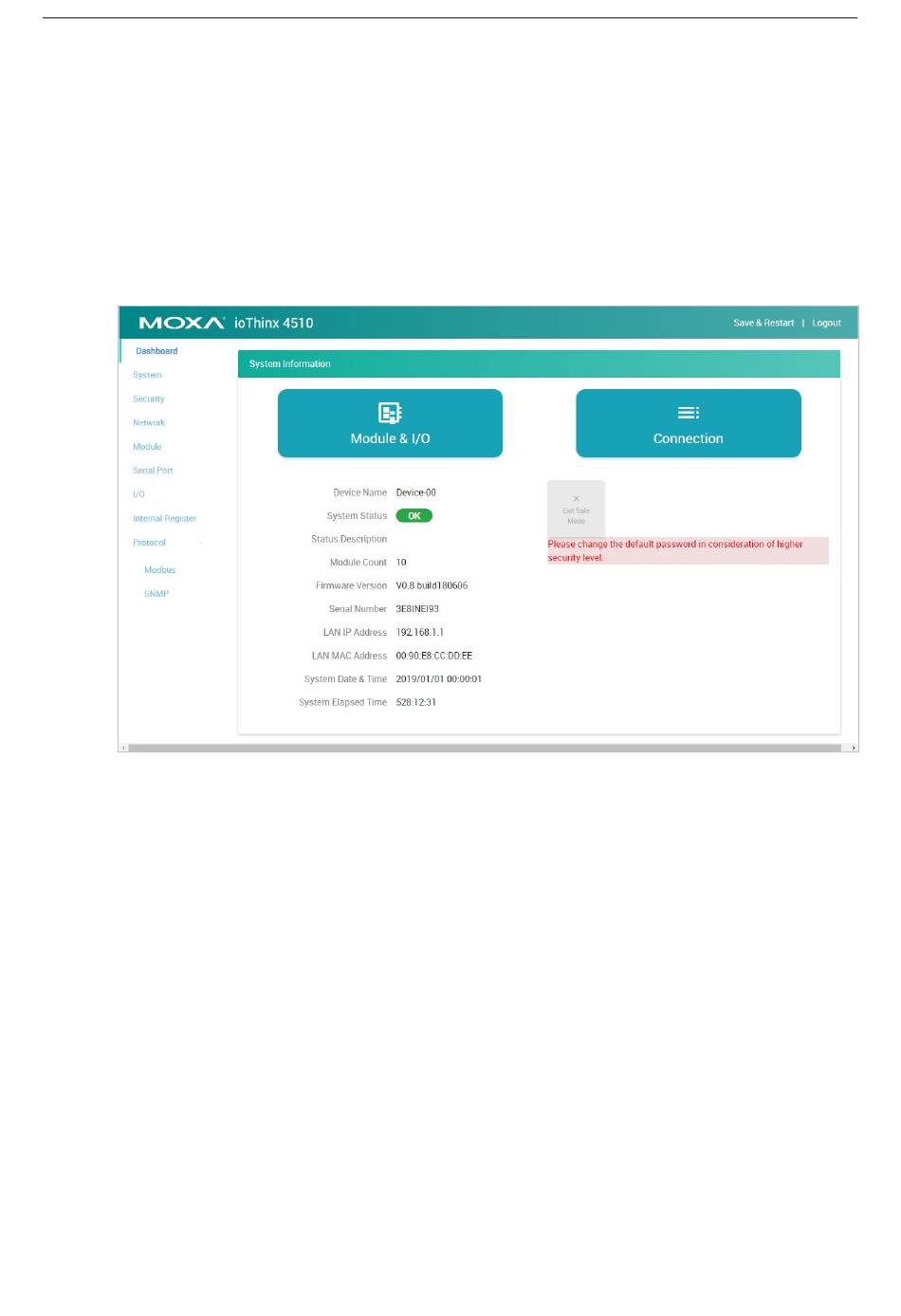

System Information
The one page system information provides detailed information for this device. For information regarding
modules and I/Os, click Module & I/O to get the detailed information. For the status of external connections,
click Connection to get the detailed information.
Exit Safe Mode: Manually exit the safe mode status of this device. Refer to the Security section for more
information about the Safe Mode function.
