ioThinx 4510 Series Software Tools

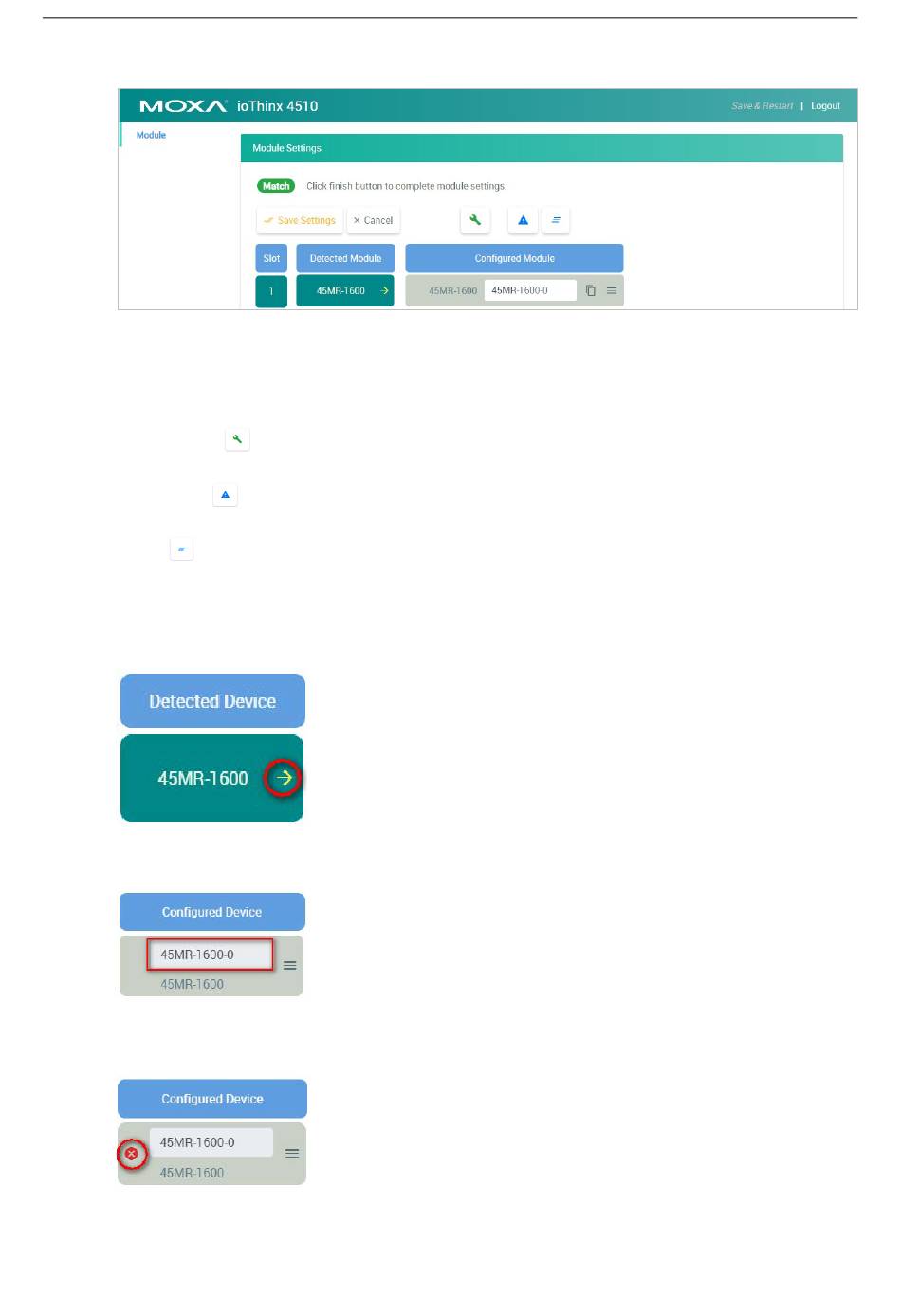

Edit: Click this button to enter edit mode.
Save Settings: This button only appears in edit mode. Click this button to finish module settings and exit edit
mode.
Cancel: This button only appears in edit mode. Click this button to cancel module settings and exit edit mode.
Auto Matching : Click this button to automatically match all configured modules with all detected modules.
Load Default : Click this button to load the default settings of all configured modules.
Reload : Click this button to reload the module settings before entering edit mode.
Slot: The slot position of the detected module.
Detected Module: The physical module detected by the system. The yellow arrow allows you to insert the
specific module into the configured module.
Configured Module: The module settings for the detected module. A unique module name is required in the
textbox (max. length = 16, "." is not allowed).
The delete icon appears when you place your mouse over the place indicated below. It allows you to delete the
configured module.
The drag icon allows you to drag the configured module and drop it to the position you need.
