ioThinx 4510 Series

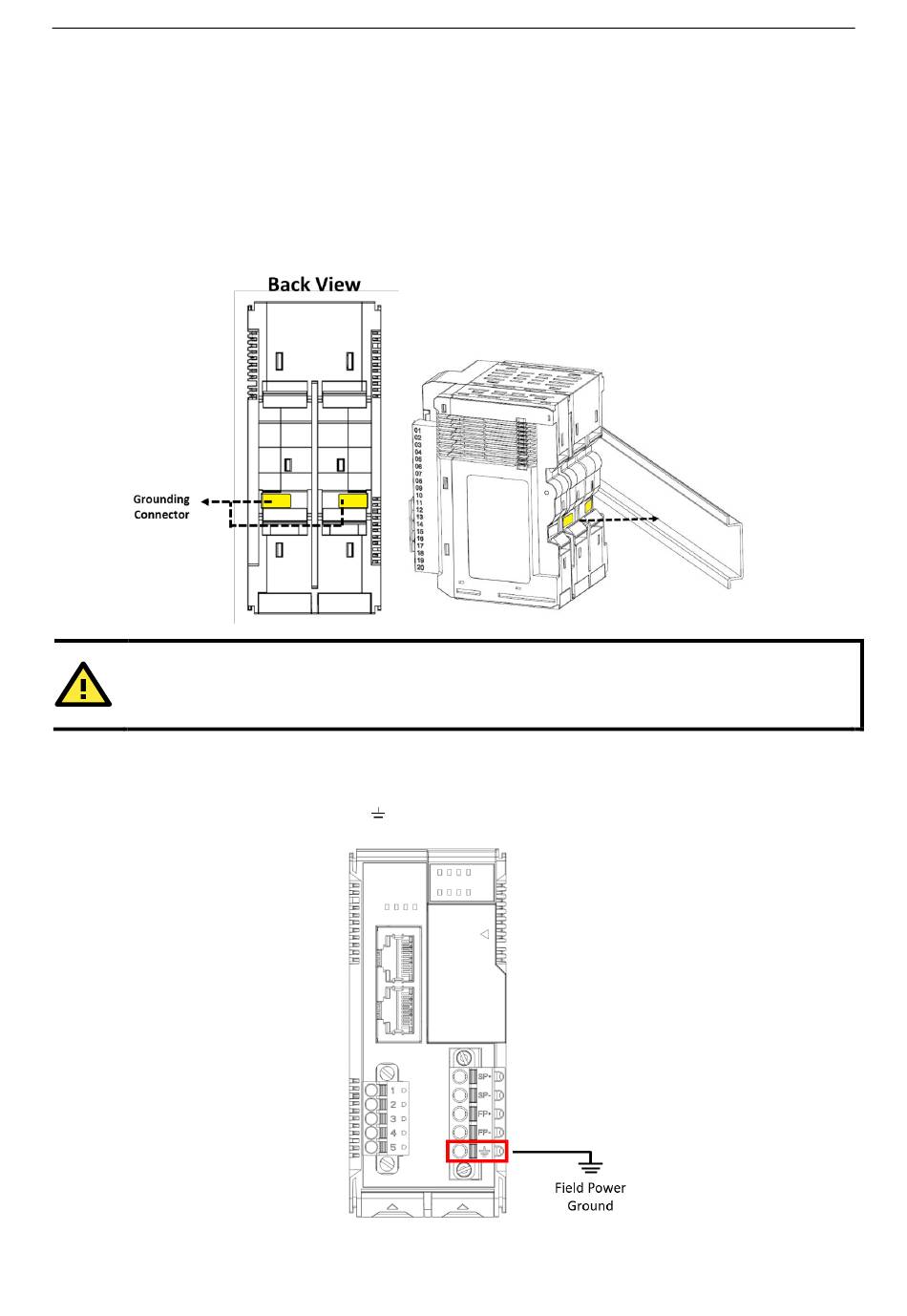

Grounding the Unit

This device has two ground pins. One pin is for system power and the other pin is for field power.

The system power ground connector is at the back of the unit. Once the device has been installed on a DIN rail,

the system power ground connector will connect to the DIN rail.

CAUTION

For surge protection, connect the DIN rail to earth ground.

Connect the field power ground pin (

) to your field power ground.

3-5

Hardware Installation
