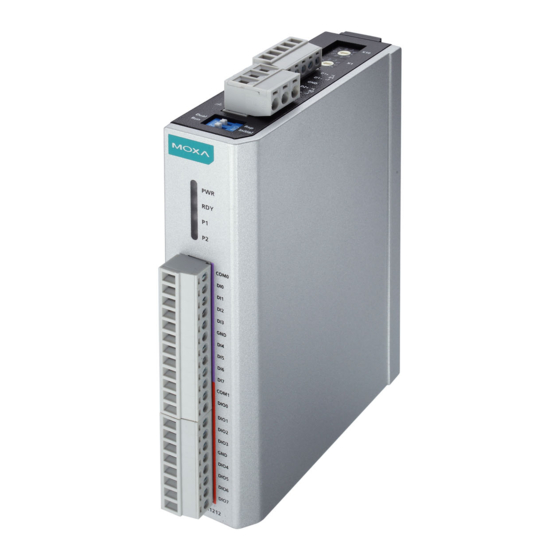

Moxa Technologies ioLogik R1200 Series Quick Start Manual

ioLogik R1200 Series
Quick Installation Guide
Second Edition, April 2015

Overview

The ioLogik R1200 comes with 2 RS-485 serial ports, which can be
used in one of two ways:
1. For backup or asset monitoring, or
2. As an RS-485 repeater.
The ioLogik R1200 has the industry's first all-in-one design and
provides Automatic Field Configuration via USB. No technical
background is needed, and maintenance is easy since users can
upload a device's configuration settings and firmware via USB,
without needing to take a PC to the field site.

Model Selection:

ioLogik DI DIO Relay AI AO
R1210 16 – – – –
R1212 8 8 – – –
R1214 6 – 6 – –
R1240 – – – 8 –
R1241 – – – – 4

Package Checklist

• 1 ioLogik R1200 series remote I/O product
• Documentation and software CD
• Quick installation guide (printed)

Specifications

System
Serial IO 2 x RS-485-2W: Data+, Data-, GND
(5-contact terminal block)
Protection 8 KV ESD, 1 KV surge, 3 KV EFT
Protocols Modbus/RTU
Power Input 24 VDC nominal, 12 to 48 VDC
Wiring I/O cable max. 14 AWG
Dimensions 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)
Weight under 200 g
Operating Temperature Standard Models: -10 to 75°C (14 to
167°F)
Wide Temperature Models: -40 to 85°C
(-40 to 185°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
P/N: 1802012002011
– 1 –
Ambient Relative 5 to 95% (non-condensing)
Humidity
Altitude Up to 2000 m
Note: Please contact Moxa if you require products guaranteed to
function properly at higher altitudes.
Standards and UL 508, CE, FCC Class A
Certifications
Warranty Period 5 years (excluding ioLogik R1214*)
Details See www.moxa.com/warranty
*Because of the limited lifetime of power relay, products that use
this component are covered by a 2-year warranty.
Communication Parameters (Initial mode)
Parity None, Even, Odd (default = None)
Data Bits 8
Stop Bits 1, 2 (default = 1)
Flow Control None, XON/XOFF (default = None)
Baudrate 1200 to 921.6 kbps (default = 9600)
Digital Input
Sensor Type NPN, PNP, and Dry contact
I/O Mode DI or Event Counter
Dry Contact • On: short to GND
• Off: open
Wet Contact • On: 10 to 30 VDC
(DI to COM) • Off: 0 to 3 VDC
Isolation 3K VDC or 2K Vrms
Counter/Frequency 2.5 kHz, power off storage
Digital Output
I/O Mode DO or Pulse Output
Pulse Wave 0.1 ms / 5 kHz
Width/Frequency
Over-voltage 45 VDC
Protection
Over-current Protection 2.6 A (4 channels @650 mA)
Over-temperature 175°C (typical), 150°C (min.)
Shutdown
Current Rating 200 mA per channel
Isolation 3K VDC or 2K Vrms
Relay Output
Type Form A (N.O.) relay outputs, 5A
Contact Rating 5 A @ 30 VDC, 5 A @ 250 VAC, 5 A @ 110
VAC
Inductance Load 2 A
Resistance Load 5 A
Breakdown Voltage 500 VAC
Relay On/Off Time 1500 ms (Max.)
Initial Insulation 1G min. @ 500 VDC
Resistance
– 2 –
Expected Life 100,000 times (Typical)
Initial Contact 30 milli-ohms (Max.)
Resistance
Pulse Output 0.3 Hz at rated load
Analog Input
Type Differential input
Resolution 16 bits
I/O Mode Voltage / Current
Input Range 0 to 10 VDC, 4 to 20 mA
Accuracy ± 0.1% FSR @ 25°C
± 0.3% FSR @ -10 and 60°C
± 0.5% FSR @ -40 and 75°C
Sampling Rate (all 12 samples/sec
channels)
Input Impedance 10M ohms (minimum)
Built-in Resistor for 120 ohms
Current Input
Analog Output
Resolution 12 bits
Output Range 0 to 10 VDC, 4 to 20 mA
Voltage Output 10 mA (Max.)
Accuracy ± 0.1% FSR @ 25°C
± 0.3% FSR @ -40 and 75°C
Load Resistor • Internal power: 400 ohms
• External 24V power: 1000 ohms

Installation

Power and Networking

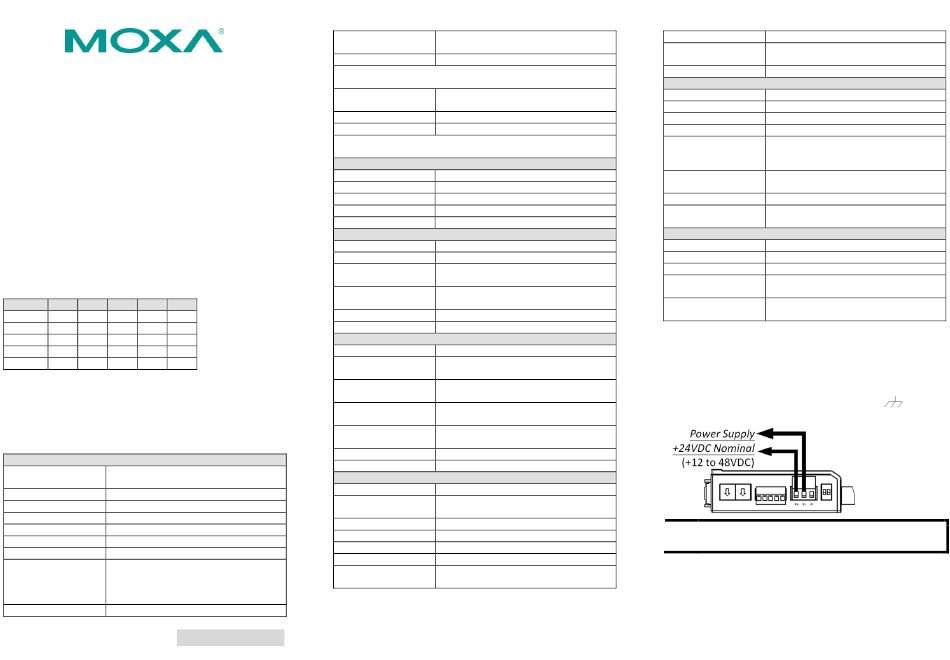

Connect the +12 to +48 VDC power line to the ioLogik R1200's
terminal block V+ terminal; connect the ground from the power
supply to the V- terminal. Connect the ground pin (
ground is available.
NOTE For safety reasons, the wires attached to the power should
be at least 2 mm (12 gauge) in diameter.
– 3 –
) if earth
