ioThinx 4510 Series

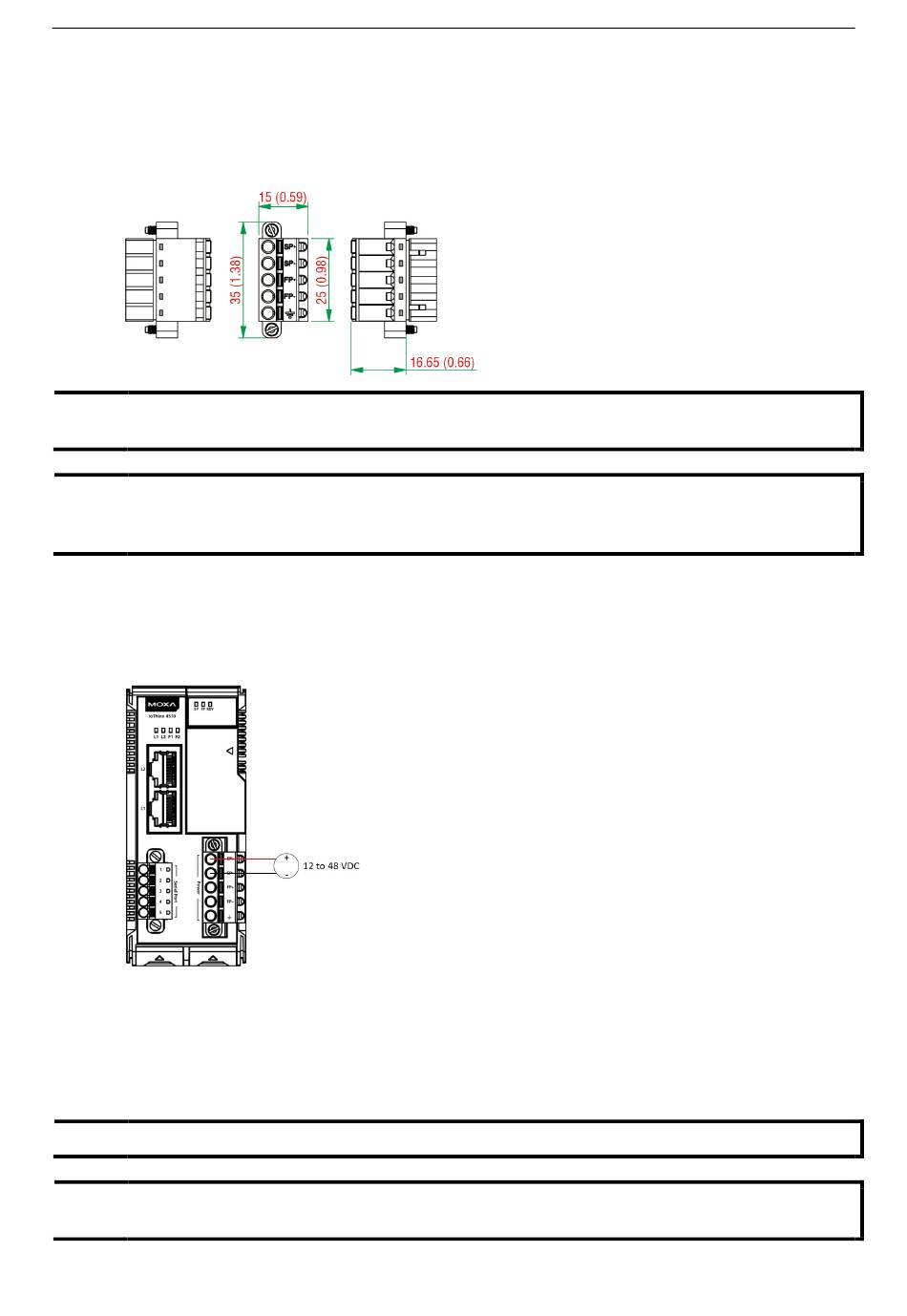

Wiring System and Field Power

Wire range: 12 to 26 AWG (Ferrule diameter: 2.0 to 0.4 mm)
Wire strip length: 10 mm
Unit: mm (in.)
NOTE Powering the unit requires connecting both the system and field power to the power supply. If only one of the
power sources is connected, the device may not work properly.
NOTE We recommended using different power supplies to ensure that the system power and field power are isolated
from each other. If using the same power supply for system power and field power, 3 KV or above isolation
between them is recommended.

System Power

This device requires a 12 to 48 VDC system power input. The system power powers this device and the
expansion modules via an internal bus, which is galvanically connected to the system power supply.
The amount of system current required to support an expansion module is 1 A. If more modules and more
power consumption is needed, an additional power module (45MR-7210) is required. Below is an example:
• 10 x 45MR-1600 (59.4 mA) = 594 mA
• 5 x 45MR-3810 (187 mA) = 935 mA
The total system current is 1.594 A, which is greater than 1 A. Therefore, an additional 45MR-7210 is needed.
NOTE Install the 45MR-7210 to the left hand side of the module where the power consumption would be exceeded.
NOTE
To avoid damaging your devices, reset all power supplies connected to this device and 45MR-7210 modules at
the same time.
