Watchdog

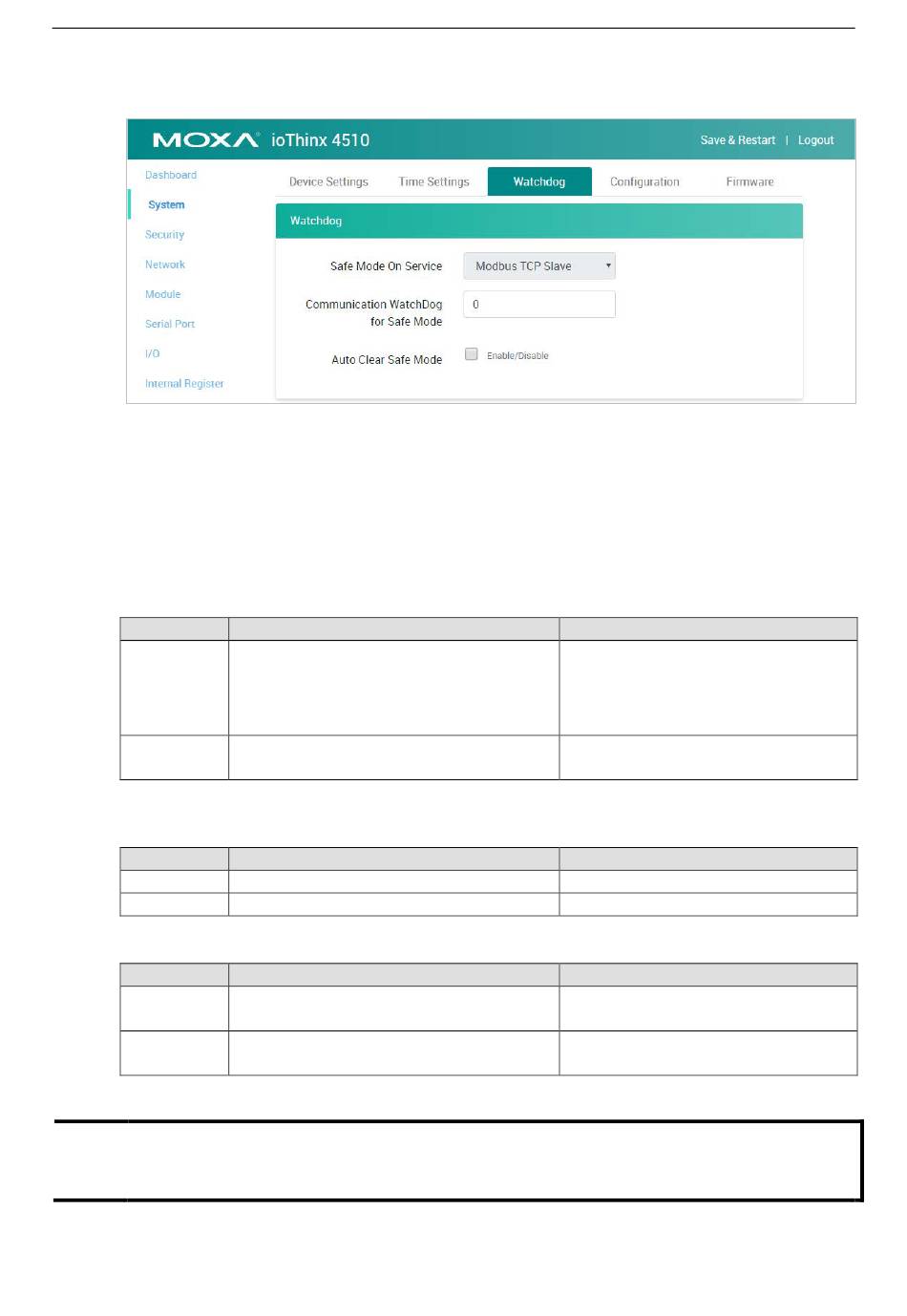

Safe Mode on Service: Select the service that you want to link the watchdog to in order to keep monitoring
the connection status (option: Modbus TCP Slave).
Communication Watchdog for Safe Mode: The timeout value when the master of Safe Mode on Service
is disconnected (unit: sec(s), 0 to 65535, 0 is disable).
Auto Clear Safe Mode: Click the checkbox to enable or disable automatically clearing the safe mode status.
Once the communication watchdog is timeout, the safe mode will be enabled. The behavior of ioThinx 4510 and
45MR modules are listed below:
Behavior
LED status
Once the connection is recovered, the behavior of the ioThinx 4510 and 45MR modules are listed below.
1. Auto Clear Safe Mode: Enabled
Behavior
LED status
2. Auto Clear Safe Mode: Disabled
Behavior
LED status
NOTE To exit the safe mode status, click the "Exit Safe Mode" button on the dashboard or type "0" to the
"watchdogAlarmFlagClear" register through Modbus. Otherwise, output channels cannot be controlled via any
access e.g. RESTful API or web console.
ioThinx 4510
• Wait for Modbus/TCP Master's re-connection
• Output channels cannot be controlled via any
access e.g. RESTful API or web console
RDY: Red fast blinking
ioThinx 4510
Recovered to normal status
RDY: Green
ioThinx 4510
Status will remain on safe mode until the safe
mode flag is cleared.
RDY: Red fast blinking until the error flag is
cleared manually
45MR modules
• Input channels: no change
• Output channels: set the channel status
according to pre-defined safe mode
settings
Status: Red fast blinking (applied to the
modules which have output channels only)
45MR modules
Recovered to normal status
Status: Green
45MR modules
Status will remain on safe mode until the
safe mode flag is cleared.
Status: Red fast blinking until the error flag
is cleared manually
