Jumper Settings

Pin description

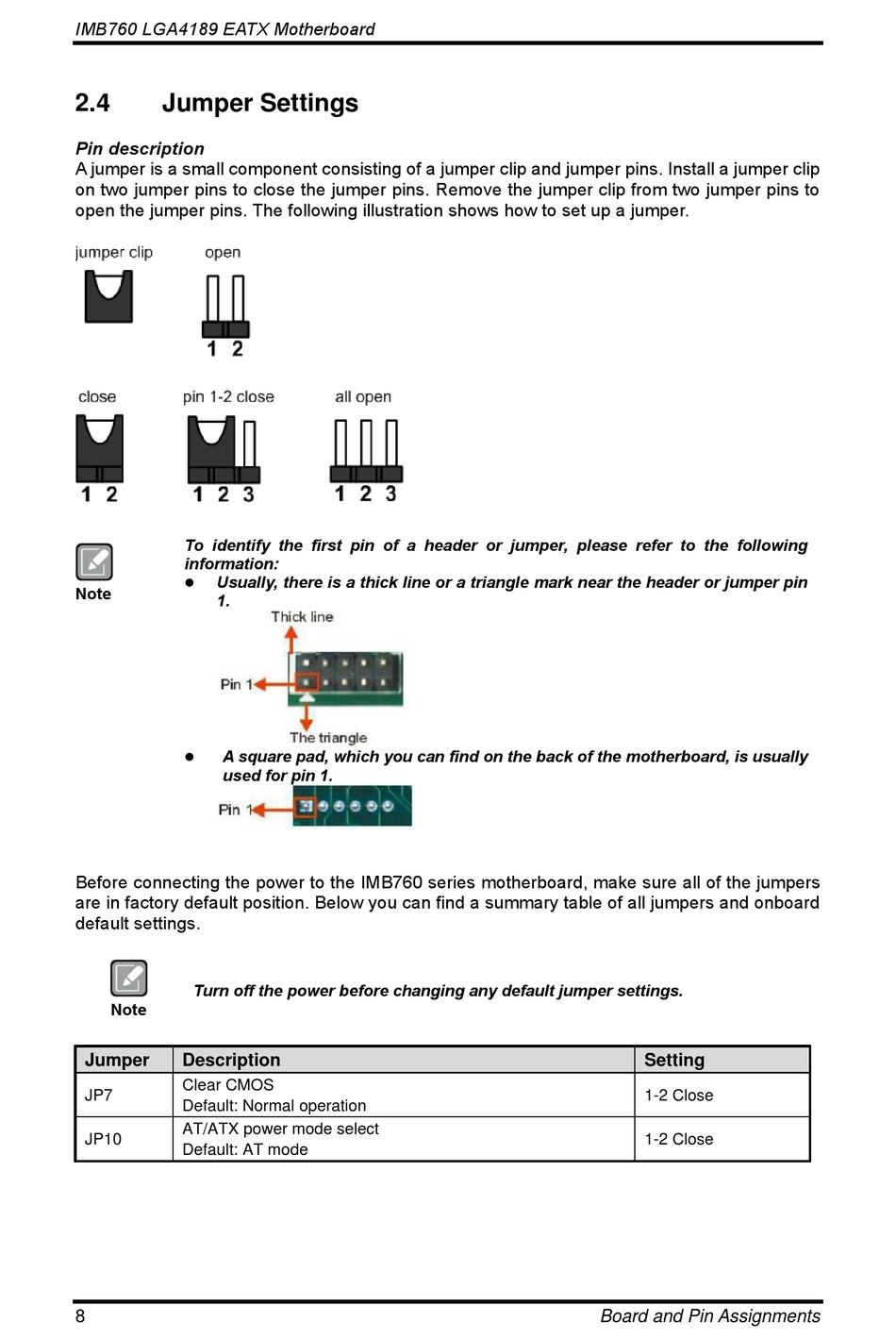

A jumper is a small component consisting of a jumper clip and jumper pins. Install a jumper clip
on two jumper pins to close the jumper pins. Remove the jumper clip from two jumper pins to
open the jumper pins. The following illustration shows how to set up a jumper.
To identify the first pin of a header or jumper, please refer to the following
information:
Usually, there is a thick line or a triangle mark near the header or jumper pin
⚫
Note
1.
A square pad, which you can find on the back of the motherboard, is usually
⚫
used for pin 1.
Before connecting the power to the IMB760 series motherboard, make sure all of the jumpers
are in factory default position. Below you can find a summary table of all jumpers and onboard
default settings.
Turn off the power before changing any default jumper settings.
Note
Jumper Description
Clear CMOS
JP7
Default: Normal operation
AT/ATX power mode select
JP10
Default: AT mode
8
Setting
1-2 Close
1-2 Close
