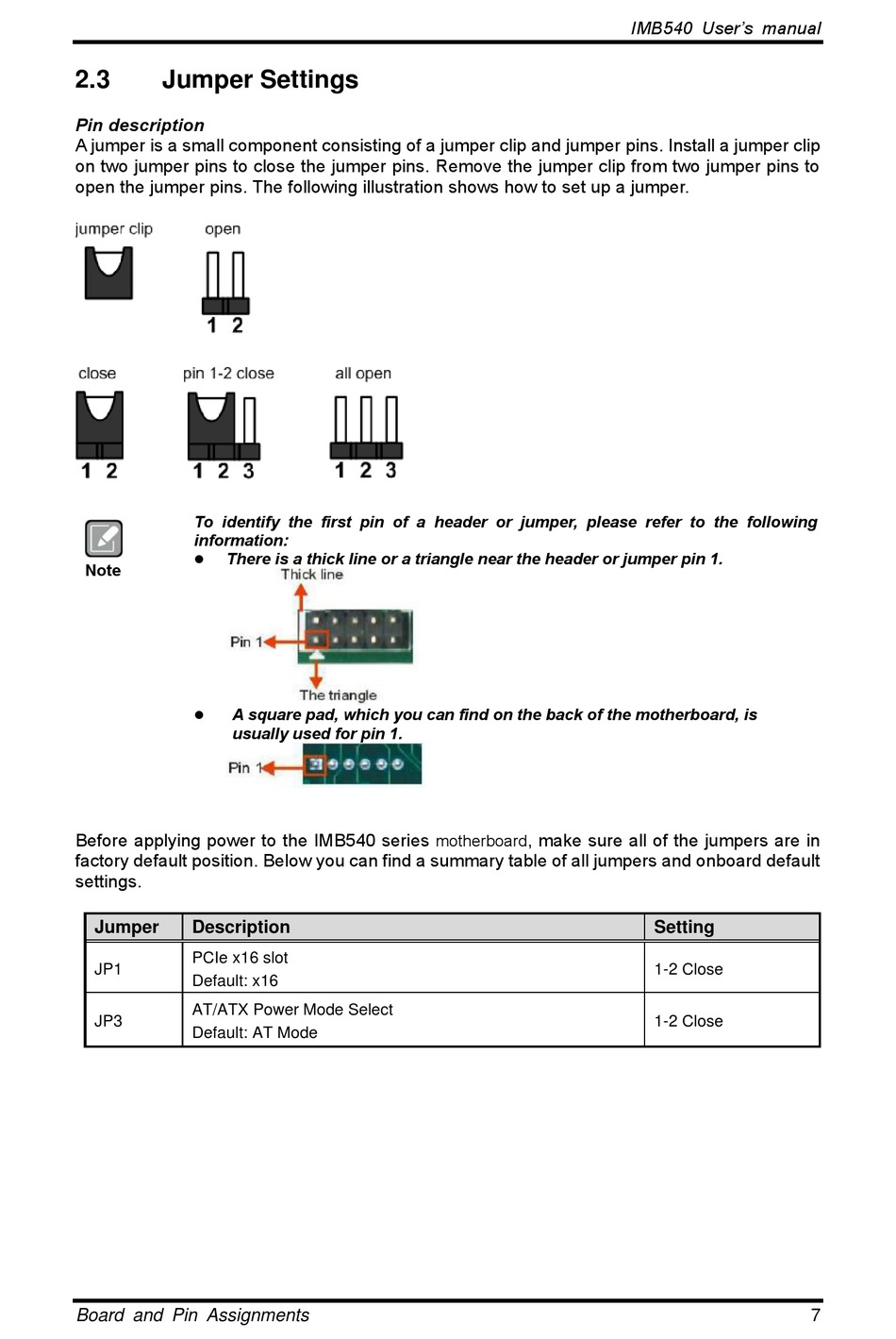

2.3

Jumper Settings

Pin description
A jumper is a small component consisting of a jumper clip and jumper pins. Install a jumper clip
on two jumper pins to close the jumper pins. Remove the jumper clip from two jumper pins to
open the jumper pins. The following illustration shows how to set up a jumper.
To identify the first pin of a header or jumper, please refer to the following
information:
There is a thick line or a triangle near the header or jumper pin 1.
⚫
Note
A square pad, which you can find on the back of the motherboard, is
⚫
usually used for pin 1.
Before applying power to the IMB540 series
factory default position. Below you can find a summary table of all jumpers and onboard default
settings.
Jumper Description
PCIe x16 slot
JP1
Default: x16
AT/ATX Power Mode Select
JP3
Default: AT Mode
Board and Pin Assignments
, make sure all of the jumpers are in
motherboard
IMB540 User's manual
Setting
1-2 Close
1-2 Close
7
