9.1 wxPropView
Note
The image height depends on the trigger frequency.
1. trigger period
2. trigger period
ately without loss of lines)
9.1.2.7.4 TriggerDelay
With TriggerDelay it is possible to specify a delay after the trigger start event.
To use TriggerDelay, in wxPropView (p. 48) you have to
• set in "CameraDescriptions" the "Y" parameter of "ActiveVideoAoi",
Using line scan cameras, the "Y" position specifies the trigger acquisition delay in lines.
MATRIX VISION GmbH
frame period - image height complete
frame period - image height reduced (line synchronous; next request starts immedi-

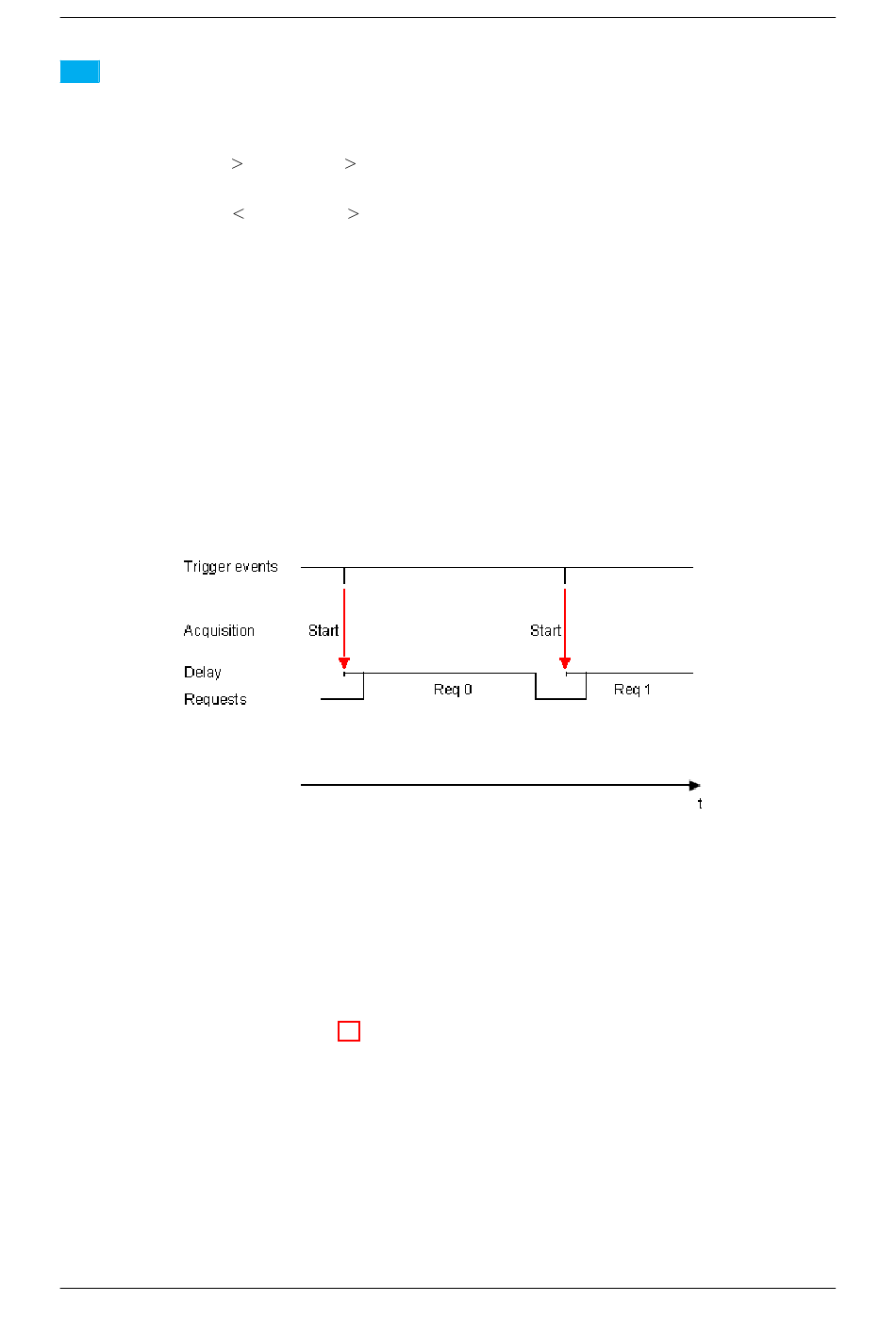

Figure 51: TriggerDelay
