17.7 Synchronous acquisition with different camera settings
3. Now, you can create a HRTC program in "Digital I/O -
Figure 3: wxPropView - Digital I/O - HardwareRealTimeController - HRTC program
The HRTC program consist of 5 steps:
(a) Wait for an "Off" signal at the digital input (in this sample at position 9 which is DigIn0; Figure 4).
(b) Wait for an "On" signal at the digital input (in this sample at position 9 which is DigIn0; Figure 4).
MATRIX VISION GmbH

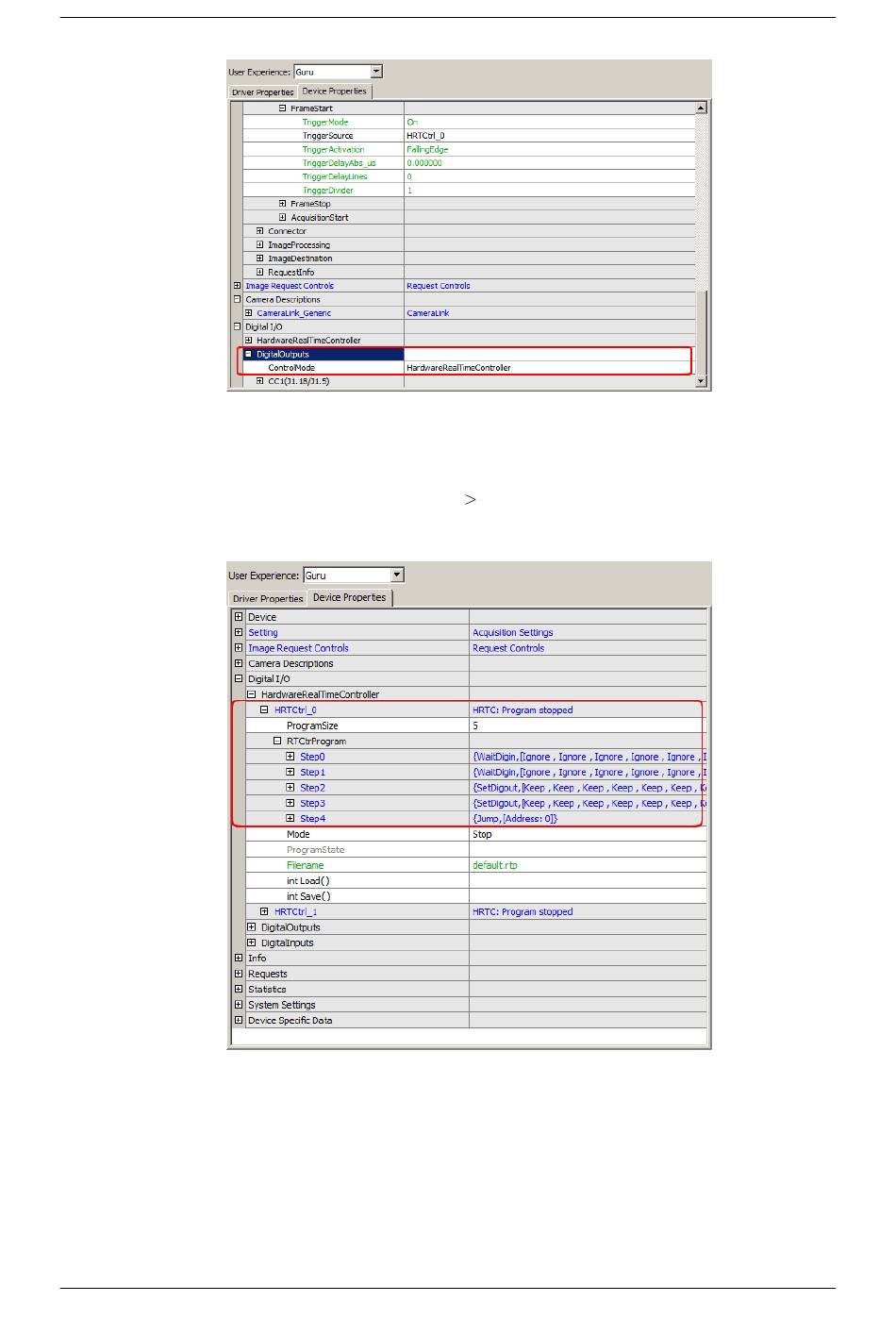

Figure 2: wxPropView - Digital I/O - ControlMode
HardwareRealTimeController".
