144
Now, if all two capture settings for both cameras have
• the "TriggerSource" set to "HRTCtrl_0",
• the "TriggerMode" to "On" and
• the "TriggerActivation" set to "FallingEdge",
as shown in Figure 2 for the "Base" setting, both cameras will capture an image at the same time.

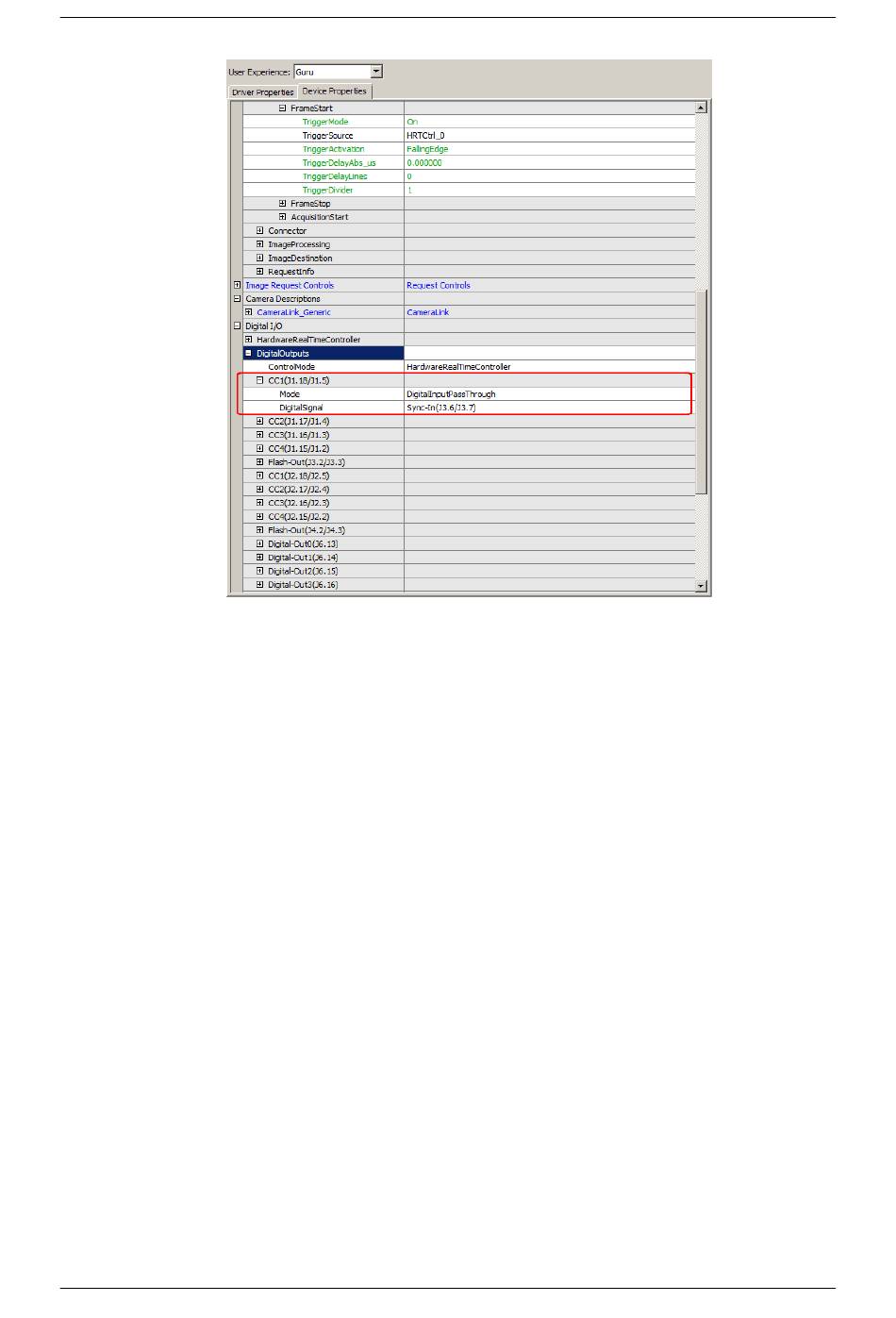

Figure 6: wxPropView - Digital I/O - Pass-through of a digital signal
