17.7 Synchronous acquisition with different camera settings 143

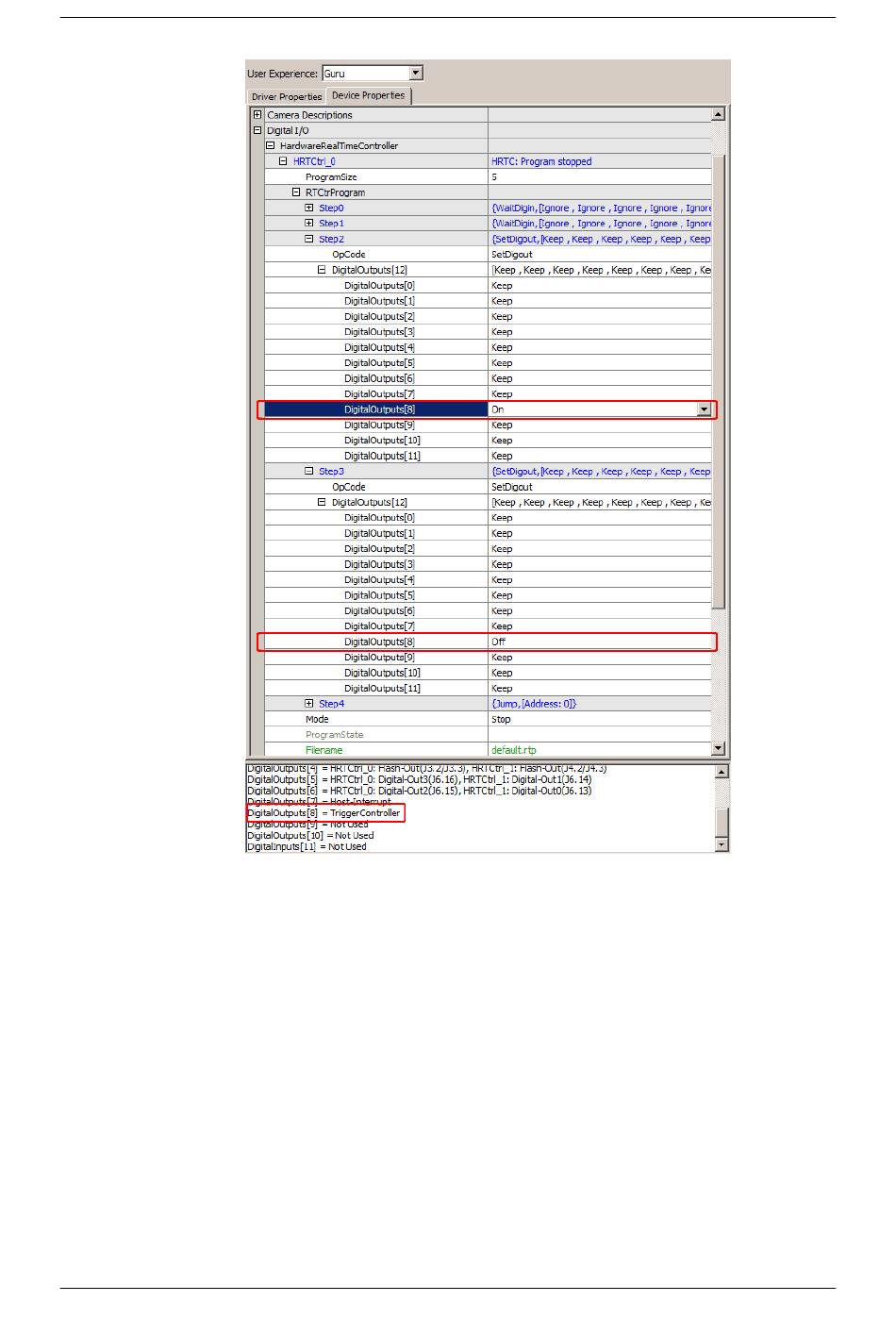

Figure 5: wxPropView - Digital I/O - HardwareRealTimeController
(e) Finally, the program jumps back to step 0.
4. Now, if you have a rotary encoder and you have connected the signal A to the "Sync-In", you can bypass this
signal, for example, to CC1:
