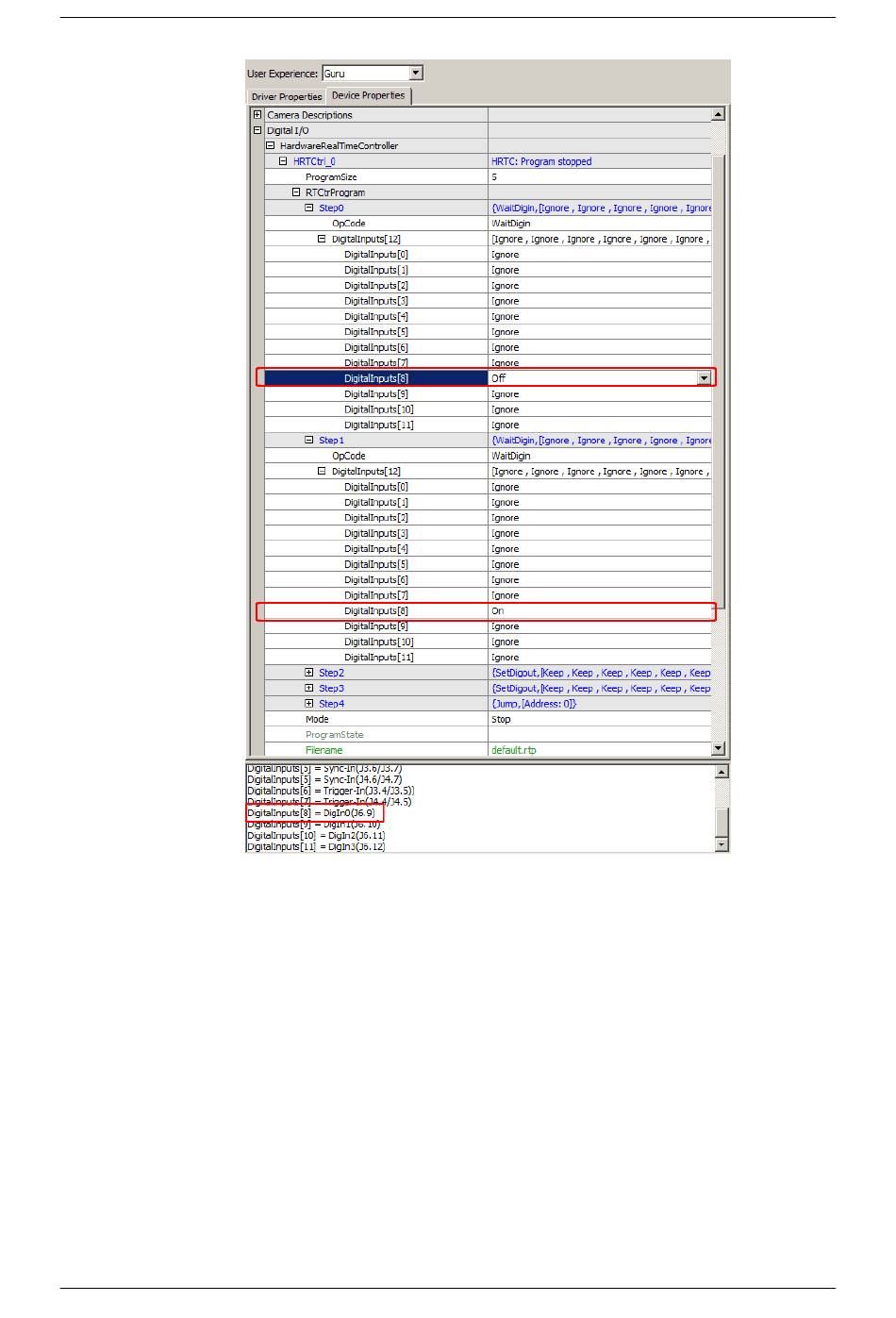

Figure 4: wxPropView - Digital I/O - HardwareRealTimeController
(c) Then, a pulse signal is set to "On" at the "TriggerController" (in this sample at position 9 which is shown
in the help window).
(d) Afterwards, the pulse signal is "Off" again.
