17 Use cases
17.1 scanCameras Working with line scan cameras
There are several use cases concerning line scan camera:
• "Camera synchronization issues" :
– Pass-through of digital input signals (p. 122)
– Working with pulse start events (p. 123)
– Working with an rotary encoder (p. 124)
– Working with a Basler Sprint line scan color camera (p. 127)
• "Trigger issues" :
– Working with trigger events (p. 135)
– Synchronous acquisition with different camera settings (p. 140)
17.2 Pass-through of digital input signals
The mvHYPERION offers input and output signals which do not have anything in common electrically. In some
cases it could be necessary to link them electrically, e.g. CC1 with Sync-In (J3).
If someone puts e.g. a periodical digital signal at the Sync-In input, this signal will be bypassed to CC1. The
following Figure shows how this will look like using wxPropView (p. 48) :

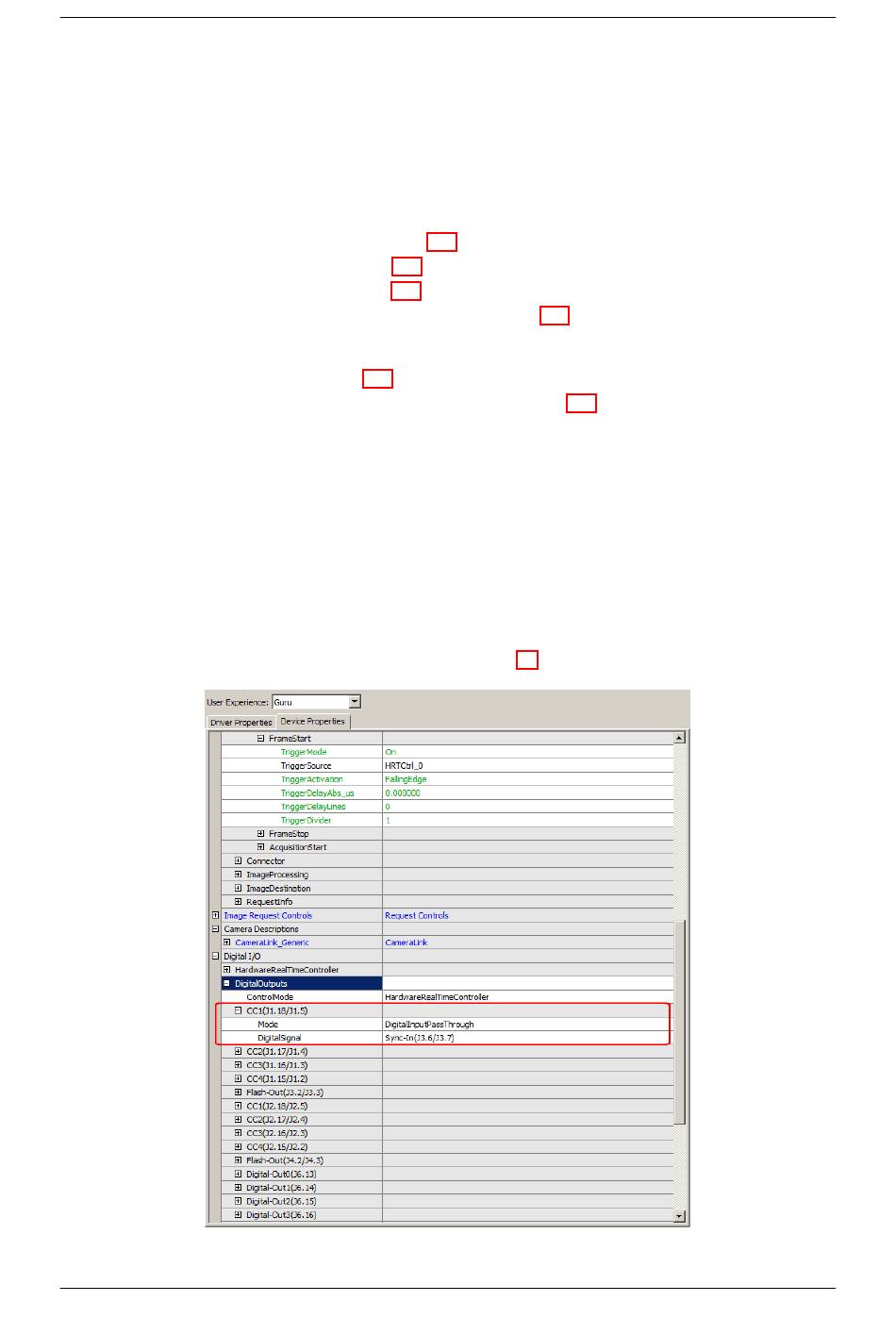

Figure 1: wxPropView - Digital I/O - Pass-through of a digital signal
