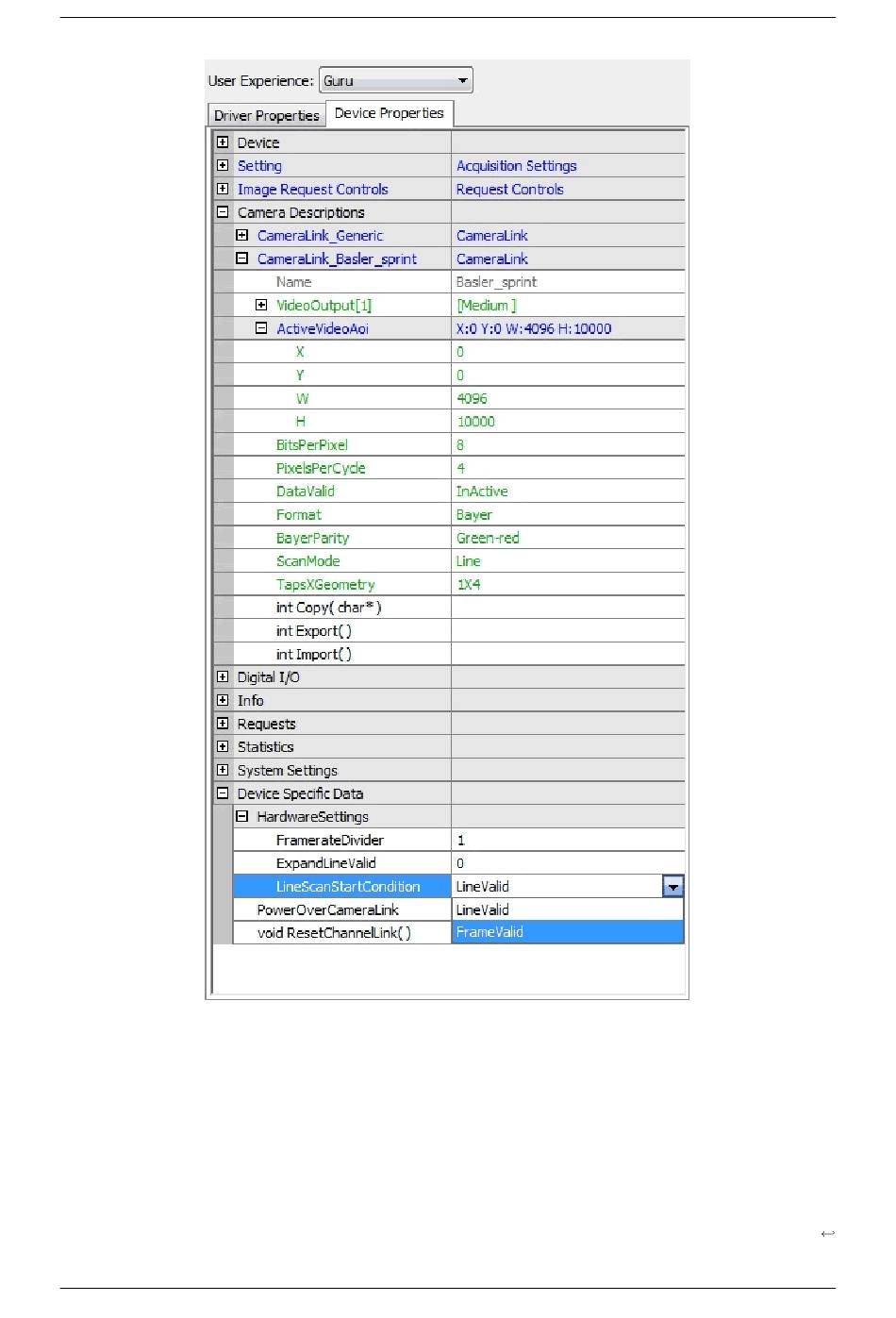

Figure 3: wxPropView - Height (H), Format Bayer, BayerParity, ScanMode, line scanStartCondition
Although we defined a line scan camera in the ScanMode, the mvHYPERION has to handle the FrameValid syn-
chronization. With line scanStartCondition the mvHYPERION runs in a mode, which waits for a FrameValid signal
when the image starts. All further FrameSync signals are ignored. This mode is required with Basler's sprint
cameras.
The camera line synchronization in this sample is a FallingEdge at Sync-In. Afterwards using PulseStart
Configuration0, a FallingEdge SinglePulse signal is generated at digital out CC1:
