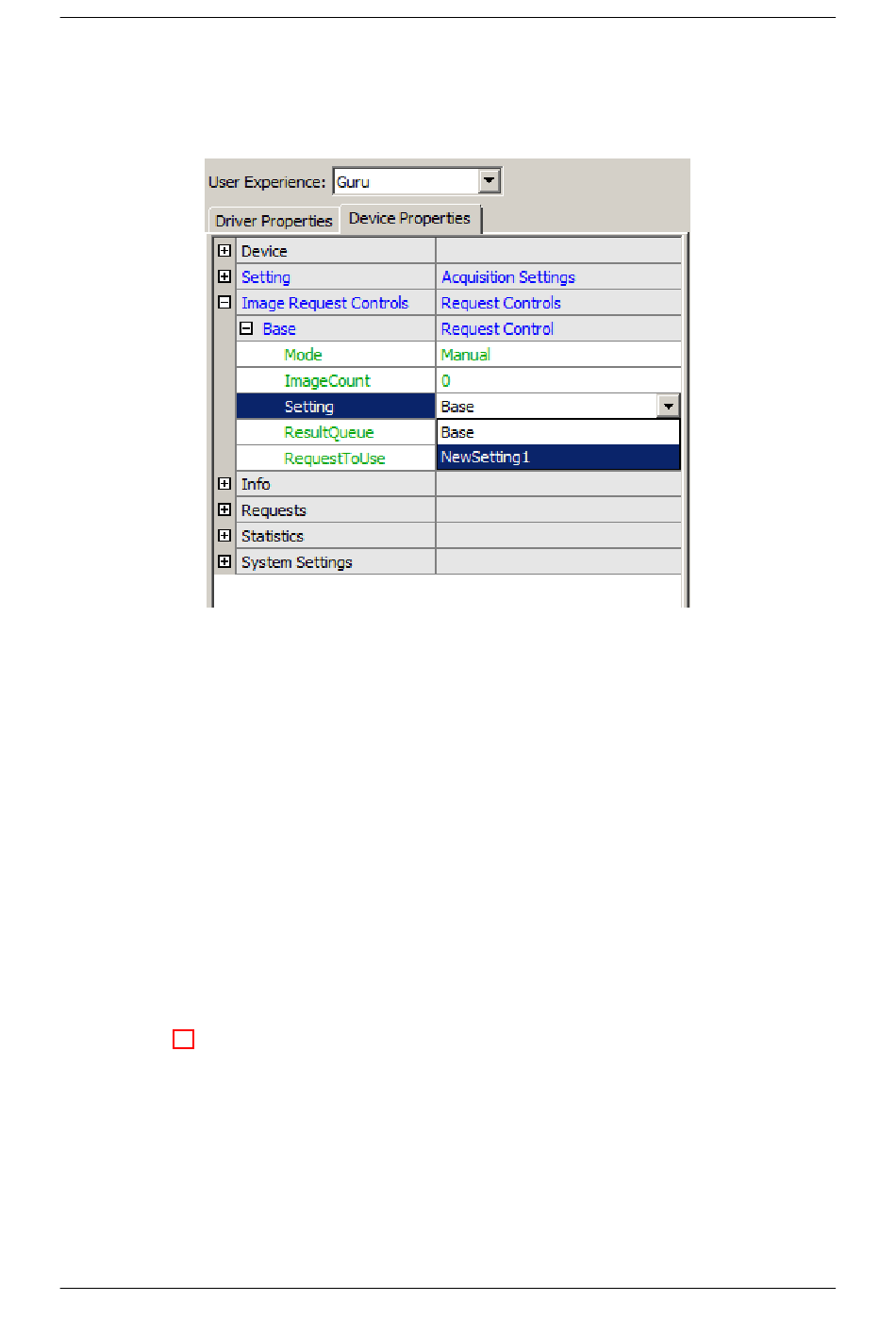

Figure 27: Manual Setting Usage Mode
This can even be changed during a running acquisition.
9.1.1.9 Bit-shifting an image
wxPropView (p. 48) shows snapped or live images in the display area of the GUI. The area, however, shows the
most significant bits (msb) of the image in the 8 bit display.
The following image shows how a mid-grey 12 bit pixel of an image is displayed with 8 bit. Additionally, two shifts
are shown.
