- Page 1 AY-V12B Multi-Reader Installation Manual...
- Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction ..............7 Technical Specifications ..........8 Installation ..............9 Installation Kit ................. 9 Installing the AY-V12B ............9 Wiring Instructions ........... 11 Operation Instructions ..........12 Limited Warranty ............13 AY-V12B Installation Manual... - Page 4 List of Figures List of Figures Figure 2: Removing the Top Cover ..............9 AY-V12B Installation Manual...
- Page 5 List of Tables List of Tables Table 1: Wiring Colors ..................11 AY-V12B Installation Manual...
- Page 6 ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document.
-
Page 7: Introduction

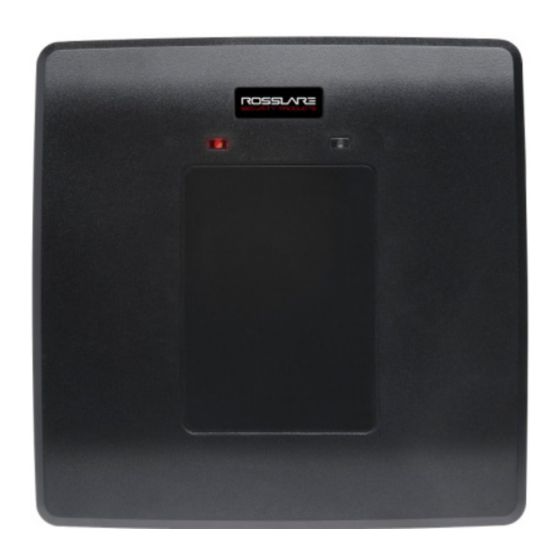

Introduction Introduction The AY-V12B Multi-Reader is an RFID proximity card reader, utilized with access control systems. The reader is compatible with standard and passive EM-type cards and tags, and features an output format of standard Wiegand 26-Bit. The reader also contains two LED indicators that show the unit’s status upon power up and the status for card reading attempts. -
Page 8: Technical Specifications
Dimensions (H x W x D) 125 x 125 x 21 mm (4.9 x 4.9 x 0.8 in.) Weight 285 g (10.1 oz) * Measured using a Rosslare proximity card or equivalent. Range also depends on electrical environment and proximity to metal. AY-V12B Installation Manual... -
Page 9: Installation
Two pan head screws and wall plugs One L-shaped security screw tool Two security screws Installing the AY-V12B When installing the reader, you must remove the snap-off cover to access the screw holes (Figure 1). Figure 1: Removing the Top Cover AY-V12B Installation Manual... - Page 10 5. Route the interface cable from the reader to the controller. A linear type power supply is recommended. The reader can also be mounted using strong epoxy glue. After application, the reader should be firmly held in place until the glue dries. AY-V12B Installation Manual...
-
Page 11: Wiring Instructions
Wiring Instructions Wiring Instructions The AY-V12B is supplied with a 46-cm (18”) pigtail, comprising a 6- conductor cable. To connect the reader to the controller: 1. Prepare the reader cable by cutting the cable jacket back 3.2 cm (1¼”) and stripping the wire 1.3 cm (½”). -
Page 12: Operation Instructions
The reader transmits the card's data to the controller. The controller checks the data and if it is valid, the LED changes momentarily to green. It then returns to its idle state (red). AY-V12B Installation Manual... -
Page 13: Limited Warranty
The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AY-V12B Installation Manual... - Page 14 +86 755 8610 6842 Fax: +86 755 8610 6101 Rosslare Security Products, Inc. support.cn@rosslaresecurity.com Southlake, TX, USA Toll Free: +1-866-632-1101 India Local: +1-817-305-0006 Rosslare Electronics India Pvt Ltd. Fax: +1-817-305-0069 Tel/Fax: +91-20-40147830 support.na@rosslaresecurity.com Mobile: +91-9975768824 Europe sales.in@rosslaresecurity.com Rosslare Israel Ltd.
