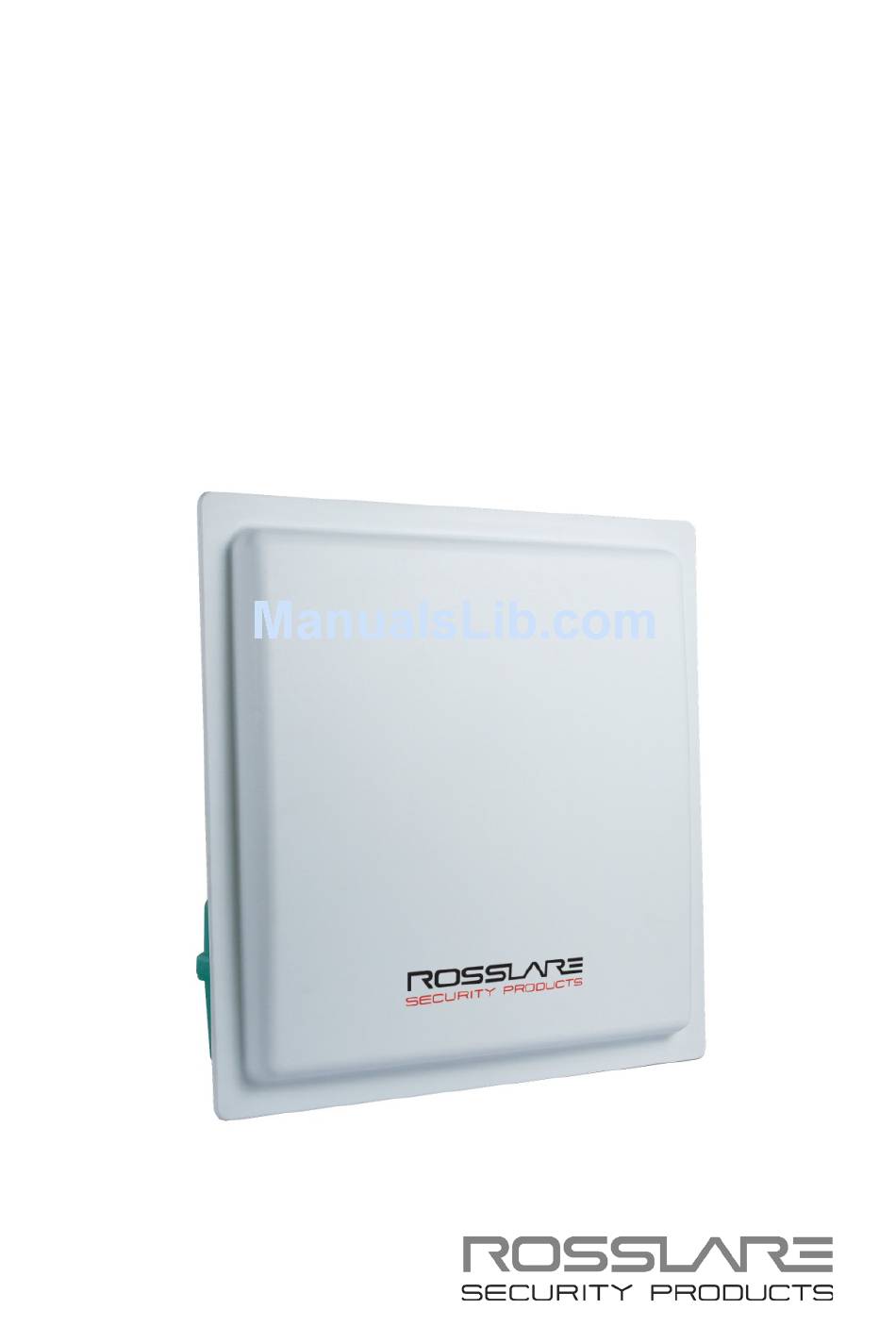

- Page 1 AY-U910 UHF Integrated Long-Range Reader Installation and User Manual...
- Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
-
Page 3: Table Of Contents
6.3.4 Data Output Setting .................. 17 6.3.5 Read Mode ....................17 7. UHF Credential Programming ........18 Installing the Card Programming Software ........18 Programming a UHF Credential ............20 A. Limited Warranty ............22 AY-U910 Installation and User Manual... - Page 4 Figure 1: Reader Components ................ 8 Figure 2: Reader Fixing Mode ................. 9 Figure 3: Antenna Angle Top View ............... 10 Figure 4: Antenna Angle Side View .............. 10 Figure 5: Interfaces ..................11 Figure 6: Wiring ................... 11 AY-U910 Installation and User Manual...
- Page 5 ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document. ...
-
Page 6: Introduction

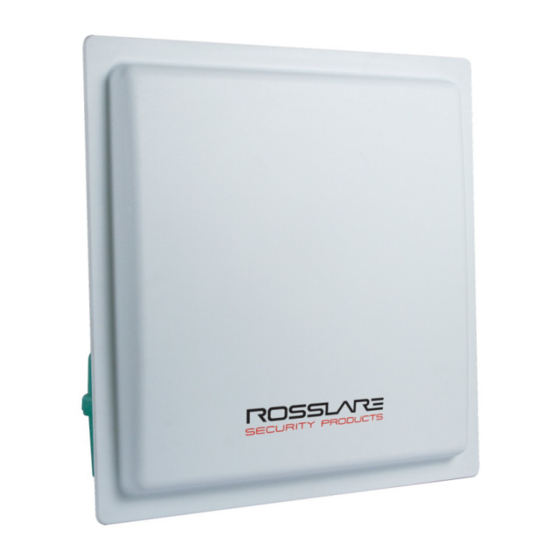

Introduction Introduction The AY-U910 is a UHF reader that is compatible with multiple protocols and can read multiple tag formats. The reader is waterproof and is suitable for use in a wide range of RFID applications, such as transport management, vehicle management, car parking, production process control, and access control. -
Page 7: Technical Specifications
Suitable for outdoor use (IP 54) Physical Characteristics Height x Width x Depth 44.5 x 44.5 x 6.7 cm (17.5 x 17.5 x 2.6 in.) Weight 3.4 kg (7.5 lb) * Measured using a Rosslare proximity card or equivalent. AY-U910 Installation and User Manual... -
Page 8: Installation
Figure 1 shows the structure of the reader. Figure 1: Reader Components Installed Fixture Upright Post There are two ways to install the stand-bracket of the AY-U910 reader as shown in Figure 2: 1-shaped stand bracket side-loaded L-shaped stand bracket loaded... -
Page 9: 1-Shaped Stand Bracket Side-Loaded
3.1.1 1-Shaped Stand Bracket Side-Loaded In this method, the stand pole installed to the AY-U910 reader should have a diameter of between 50 and 60 mm and the length of 2.2 m. The pole should be made of stainless steel with a thickness of more than 1.20 mm. -
Page 10: Adjusting The Azimuth Angle Of Antenna
60° to 75°, while the deviation angle of the antenna should be biased towards the lane direction (Figure 3). Figure 3: Antenna Angle Top View Barrier Gate 30–40° Figure 4: Antenna Angle Side View Reader 60–75° 2.0–2.2 m AY-U910 Installation and User Manual... -
Page 11: Wiring
The DB-15 with RS-232 cable serial connection is used to configure the reader through the included software (see Chapter 6). The functions and wiring instructions for the interface are shown in Figure 6. Figure 6: Wiring AY-U910 Installation and User Manual... -
Page 12: Operation Instructions
Operation Instructions After wiring the unit to a power supply and a controller (Wiegand output, D0, D1, GND), you should test the AY-U910 long-range UHF reader. To test the reader: Power up the reader. One beep is emitted and then it begins an auto- calibration procedure. -
Page 13: Uhf Reader Application
The UHF Reader Setup Application is used to configure the reader. To install the UHF Reader Setup Application: Download the installation setup file from the Rosslare site. Double-click the setup file. The installation package extracts the installation files. After the files are extracted, the welcome screen to the UHF Reader Application setup opens. - Page 14 UHF Reader Application Select Installation Folder screen opens. Select the required installation location by clicking Change or click Next to use the default destination. Click Next. Ready to Install Program screen opens. AY-U910 Installation and User Manual...
-
Page 15: Connecting The Reader
Connect the UHF reader to the PC using a DB-15 with RS-232 with cable. UHF Reader Setup Click the icon on the desktop or select the program from the Rosslare folder in the Start menu. AY-U910 Installation and User Manual... -
Page 16: Configuring The Reader
6.3.1 Tag Type Select one of the two types of credentials: ISO 18000-6B EPC GEN2 (ISO 18000-6C 6.3.2 Reader Power Move the slider to choose a power level between 0 and 30 dBm. AY-U910 Installation and User Manual... -
Page 17: Rf Frequency
(trigger) and a black wire (ground) at a reading rate according to the interval time in Section 6.3.4.1. The reader stops after the indicated time as set in the Read Time spin box. The default value is 1 and the range is 0 to 255. AY-U910 Installation and User Manual... -
Page 18: Uhf Credential Programming
UHF Credential Programming UHF Credential Programming UHF Card The AY-U910 can be used to program UHF credentials using the Programmer application. Installing the Card Programming Software To install the UHF Card Programmer softw are: Download the installation setup file from the Rosslare site. - Page 19 UHF Credential Programming Destination Folder screen opens. Select the required installation location by clicking Change or click Next to use the default destination. Click Next. Ready to Install Program screen opens. AY-U910 Installation and User Manual...
-
Page 20: Programming A Uhf Credential
InstallShield Wizard Completed Click Install. After a few moments, the screen opens. Click Finish. Programming a UHF Credential The UHF Card Programmer GUI consists of three areas: Comm port setting EPC GEN2 Display area AY-U910 Installation and User Manual... - Page 21 If the credential is read successfully, the software displays a success message followed by the card ID in the display area. If the credential is read unsuccessfully, the software displays a failure message in the display area. When finished reading, click Disconnect. AY-U910 Installation and User Manual...
-
Page 22: Limited Warranty
The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AY-U910 Installation and User Manual... - Page 23 Fax: +86 755 8610 6101 Southlake, TX, USA support.cn@rosslaresecurity.com Toll Free: +1-866-632-1101 Local: +1-817-305-0006 India Fax: +1-817-305-0069 support.na@rosslaresecurity.com Rosslare Electronics India Pvt Ltd. Tel/Fax: +91 20 40147830 Europe Mobile: +91 9975768824 sales.in@rosslaresecurity.com Rosslare Israel Ltd. Rosh HaAyin, Israel Tel: +972 3 938-6838 Fax: +972 3 938-6830 support.eu@rosslaresecurity.com...
