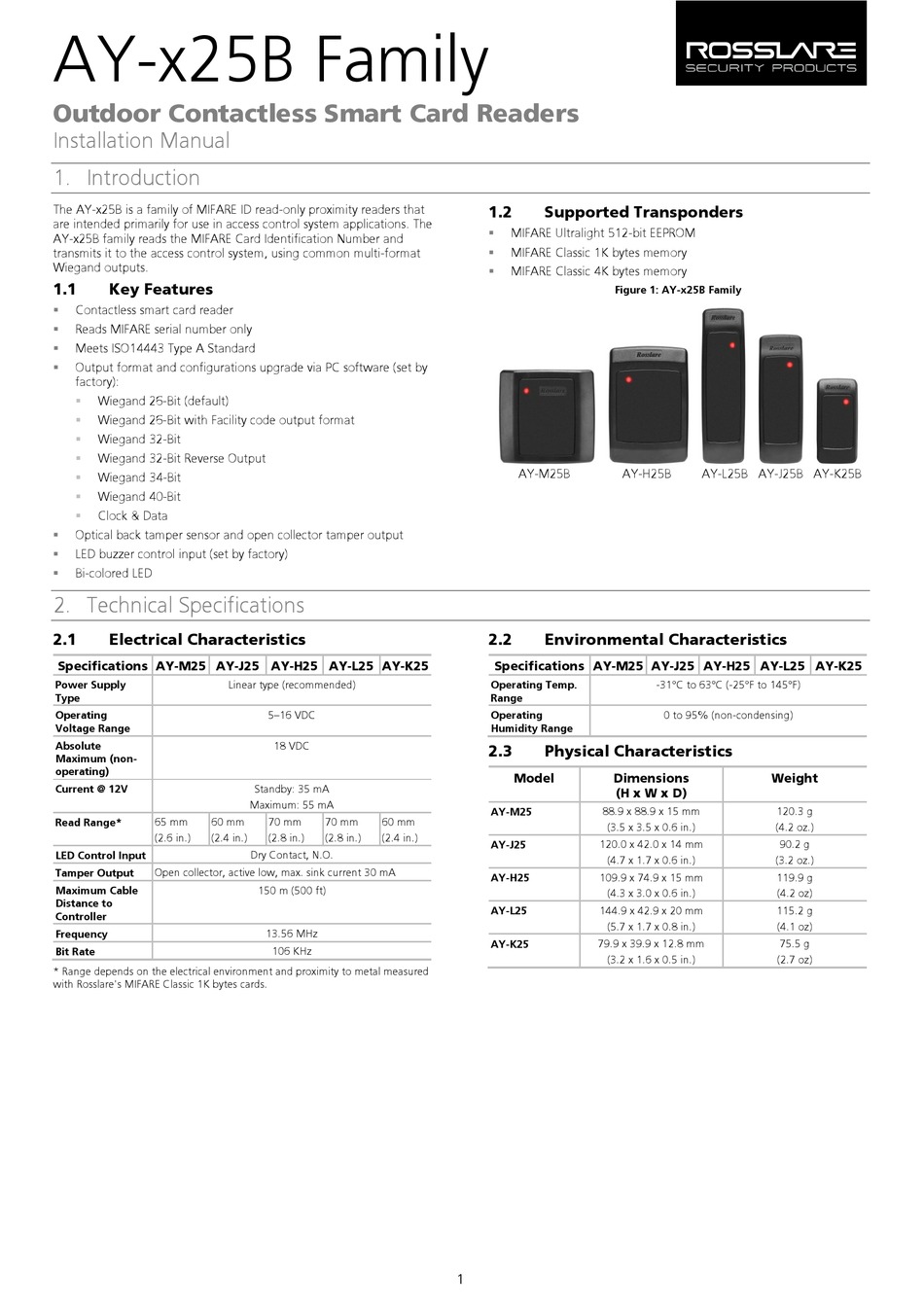

Rosslare AY-x25B Series Installation Manual

AY-x25B Family
Outdoor Contactless Smart Card Readers

Installation Manual

1. Introduction
The AY-x25B is a family of MIFARE ID read-only proximity readers that
are intended primarily for use in access control system applications. The
AY-x25B family reads the MIFARE Card Identification Number and
transmits it to the access control system, using common multi-format
Wiegand outputs.
1.1

Key Features

 Contactless smart card reader
 Reads MIFARE serial number only
Meets ISO14443 Type A Standard

 Output format and configurations upgrade via PC software (set by
factory):
Wiegand 26-Bit (default)

 Wiegand 26-Bit with Facility code output format
 Wiegand 32-Bit
 Wiegand 32-Bit Reverse Output
 Wiegand 34-Bit
Wiegand 40-Bit

 Clock & Data
 Optical back tamper sensor and open collector tamper output
 LED buzzer control input (set by factory)
 Bi-colored LED

2. Technical Specifications

2.1 Electrical Characteristics
Specifications AY-M25 AY-J25 AY-H25 AY-L25 AY-K25
Power Supply
Type
Operating
Voltage Range
Absolute
Maximum (non-
operating)
Current @ 12V
Read Range* 65 mm 60 mm
(2.6 in.) (2.4 in.)
LED Control Input
Tamper Output Open collector, active low, max. sink current 30 mA
Maximum Cable
Distance to
Controller
Frequency
Bit Rate
* Range depends on the electrical environment and proximity to metal measured
with Rosslare's MIFARE Classic 1K bytes cards.
Linear type (recommended)
5–16 VDC
18 VDC
Standby: 35 mA
Maximum: 55 mA
70 mm 70 mm 60 mm
(2.8 in.) (2.8 in.) (2.4 in.)
Dry Contact, N.O.
150 m (500 ft)
13.56 MHz
106 KHz
1.2 Supported Transponders
 MIFARE Ultralight 512-bit EEPROM
 MIFARE Classic 1K bytes memory
 MIFARE Classic 4K bytes memory

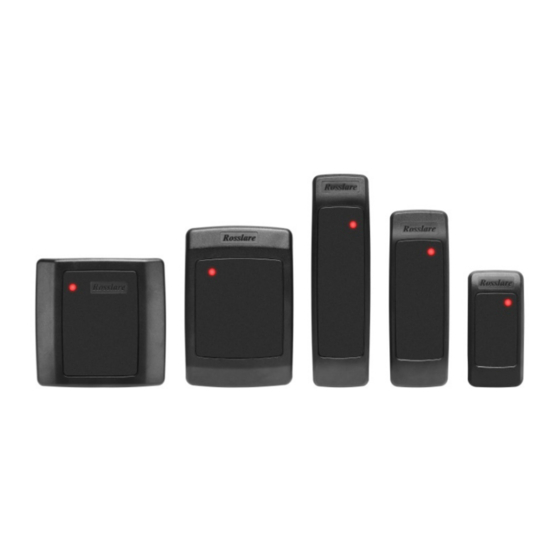

Figure 1: AY-x25B Family
AY-M25B AY-H25B
2.2 Environmental Characteristics
Specifications AY-M25 AY-J25 AY-H25 AY-L25 AY-K25
Operating Temp.
Range
Operating
Humidity Range
2.3 Physical Characteristics
Model Dimensions
(H x W x D)
AY-M25 88.9 x 88.9 x 15 mm
(3.5 x 3.5 x 0.6 in.)
AY-J25 120.0 x 42.0 x 14 mm
(4.7 x 1.7 x 0.6 in.)
AY-H25 109.9 x 74.9 x 15 mm
(4.3 x 3.0 x 0.6 in.)
AY-L25 144.9 x 42.9 x 20 mm
(5.7 x 1.7 x 0.8 in.)
AY-K25 79.9 x 39.9 x 12.8 mm
(3.2 x 1.6 x 0.5 in.)
1
AY-L25B AY-J25B AY-K25B
-31°C to 63°C (-25°F to 145°F)
0 to 95% (non-condensing)
Weight
120.3 g
(4.2 oz.)
90.2 g
(3.2 oz.)
119.9 g
(4.2 oz)
115.2 g
(4.1 oz)
75.5 g
(2.7 oz)
