1.2

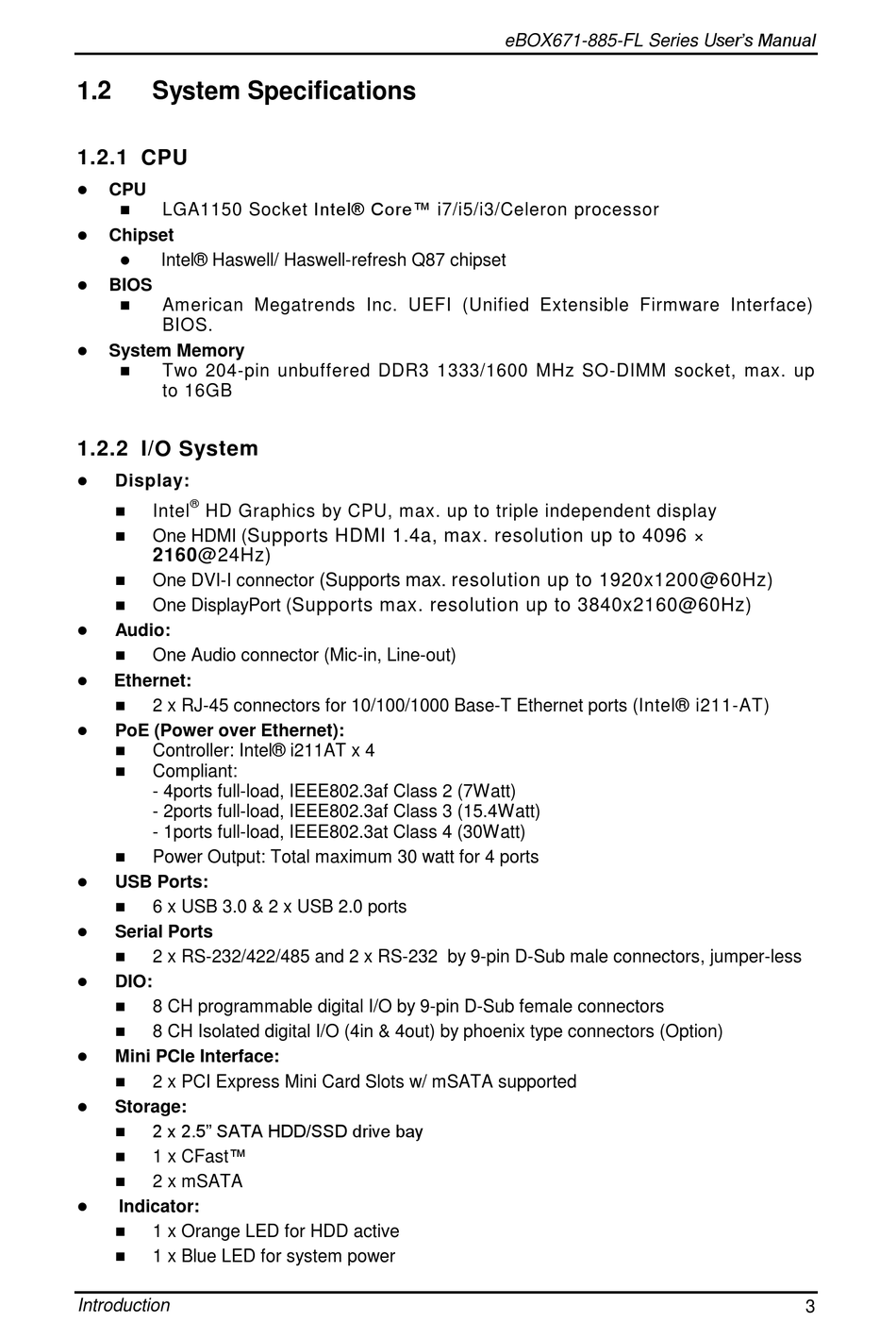

System Specifications

1.2.1 CPU


CPU
LGA1150 Socket Intel® Core™ i7/i5/i3/Celeron processor

 Chipset

Intel® Haswell/ Haswell-refresh Q87 chipset
 BIOS
 American Megatrends Inc. UEFI (Unified Extensible Firmware Interface)
BIOS.
 System Memory
 Two 204-pin unbuffered DDR3 1333/1600 MHz SO-DIMM socket, max. up
to 16GB

1.2.2 I/O System

 Display:
®
 Intel HD Graphics by CPU, max. up to triple independent display
 One HDMI (
2160@24Hz)
 One DVI-I connector
 One DisplayPort (
 Audio:
 One Audio connector (Mic-in, Line-out)
 Ethernet:
 2 x RJ-45 connectors for 10/100/1000 Base-T Ethernet ports (Intel® i211-AT)
 PoE (Power over Ethernet):
 Controller: Intel® i211AT x 4
 Compliant:
- 4ports full-load, IEEE802.3af Class 2 (7Watt)
- 2ports full-load, IEEE802.3af Class 3 (15.4Watt)
- 1ports full-load, IEEE802.3at Class 4 (30Watt)
 Power Output: Total maximum 30 watt for 4 ports
 USB Ports:
 6 x USB 3.0 & 2 x USB 2.0 ports
 Serial Ports
 2 x RS-232/422/485 and 2 x RS-232 by 9-pin D-Sub male connectors, jumper-less
 DIO:
 8 CH programmable digital I/O by 9-pin D-Sub female connectors
 8 CH Isolated digital I/O (4in & 4out) by phoenix type connectors (Option)

Mini PCIe Interface:
 2 x PCI Express Mini Card Slots w/ mSATA supported
 Storage:
2 x 2.5" SATA HDD/SSD drive bay

 1 x CFast™
 2 x mSATA

Indicator:
 1 x Orange LED for HDD active
 1 x Blue LED for system power
Introduction
Supports HDMI 1.4a, max. resolution up to 4096 ×
(Supports max. resolution up to 1920x1200@60Hz)
Supports max. resolution up to 3840x2160@60Hz)
