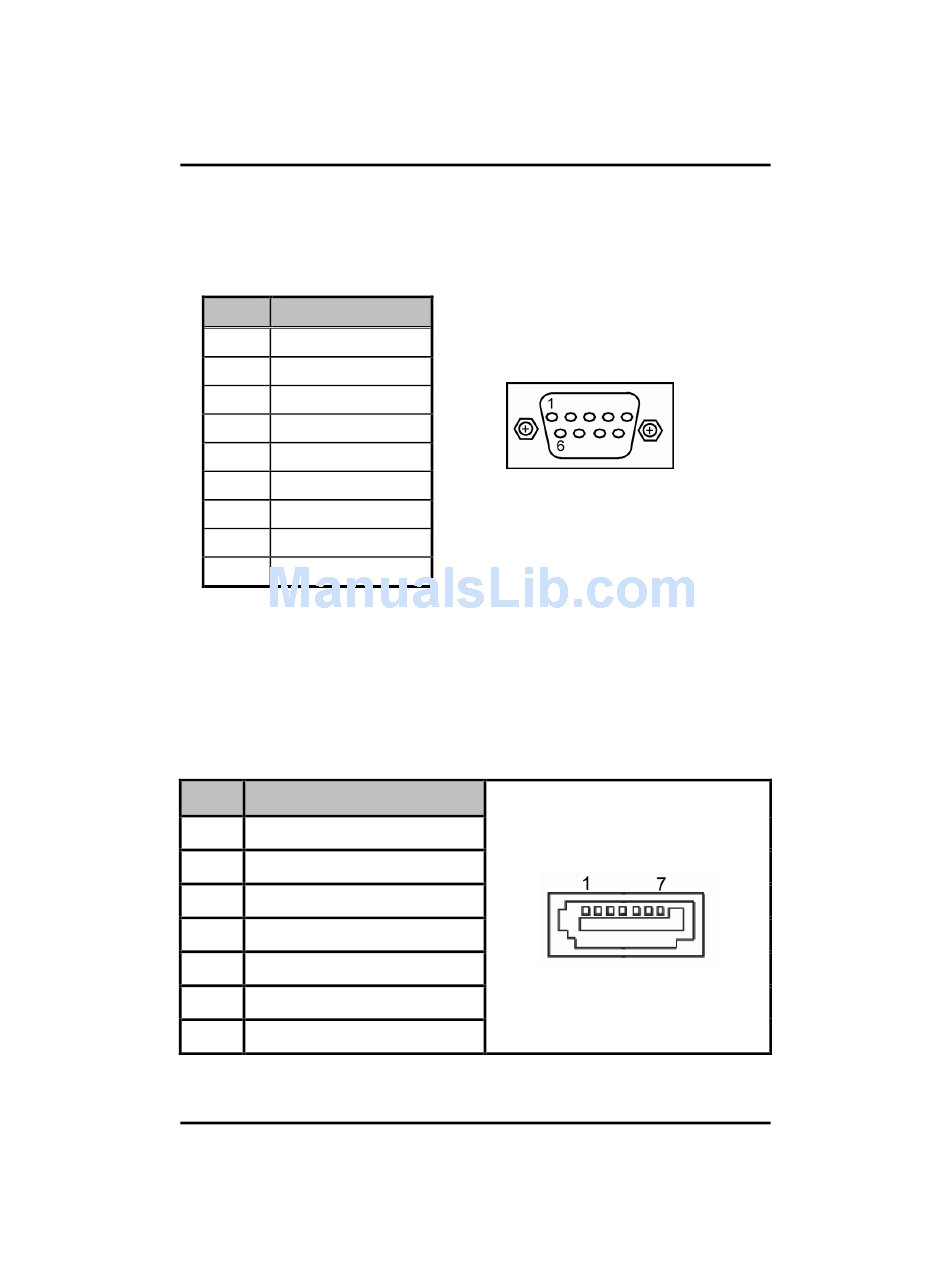

3.3.9 CANBUS Connector

The system supports a CANBUS interface, the connector is a 9-pin
D-sub connector. It supports CAN 2.0A and 2.0B standard.
Pin Description
1 NC
2 CAN_L
3 CAN_GND
4 NC
5 NC
6 CAN_GND
7 CAN_H
8 NC
9 NC

3.3.10 SATA Connector

The SATA connector is for high-speed SATA interface ports and
they can be connected to hard disk devices.
Pin Signal
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND
