Conclusion
Conclusion
2–18
DSP Development Kit, Stratix II Edition Getting Started User Guide
The plotted graph noise floor average is below 65 db. A normalized FFT
plot of ADC A output is shown in

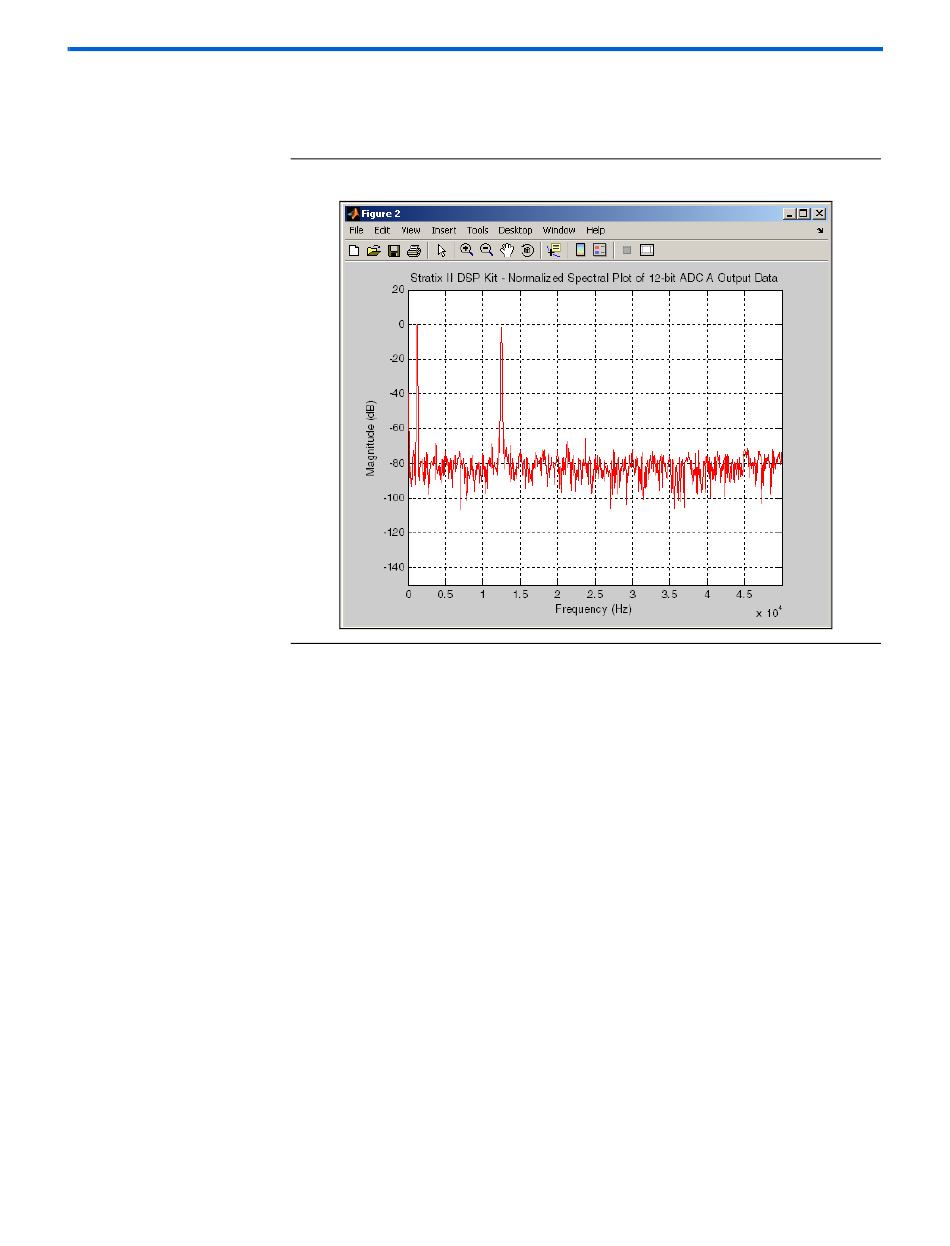

Figure 2–10. Normalized Spectral Plot of The 12-bit ADC A Output Data
You have successfully completed the Getting Started steps for the DSP
Development Kit, Stratix II Edition.You are now ready to begin building
custom designs or explore the reference designs included in the DSP
Development Kit, Stratix II Edition CD-ROM.
Development Kit Version 1.1.0
Figure 2–10.
