Getting Started

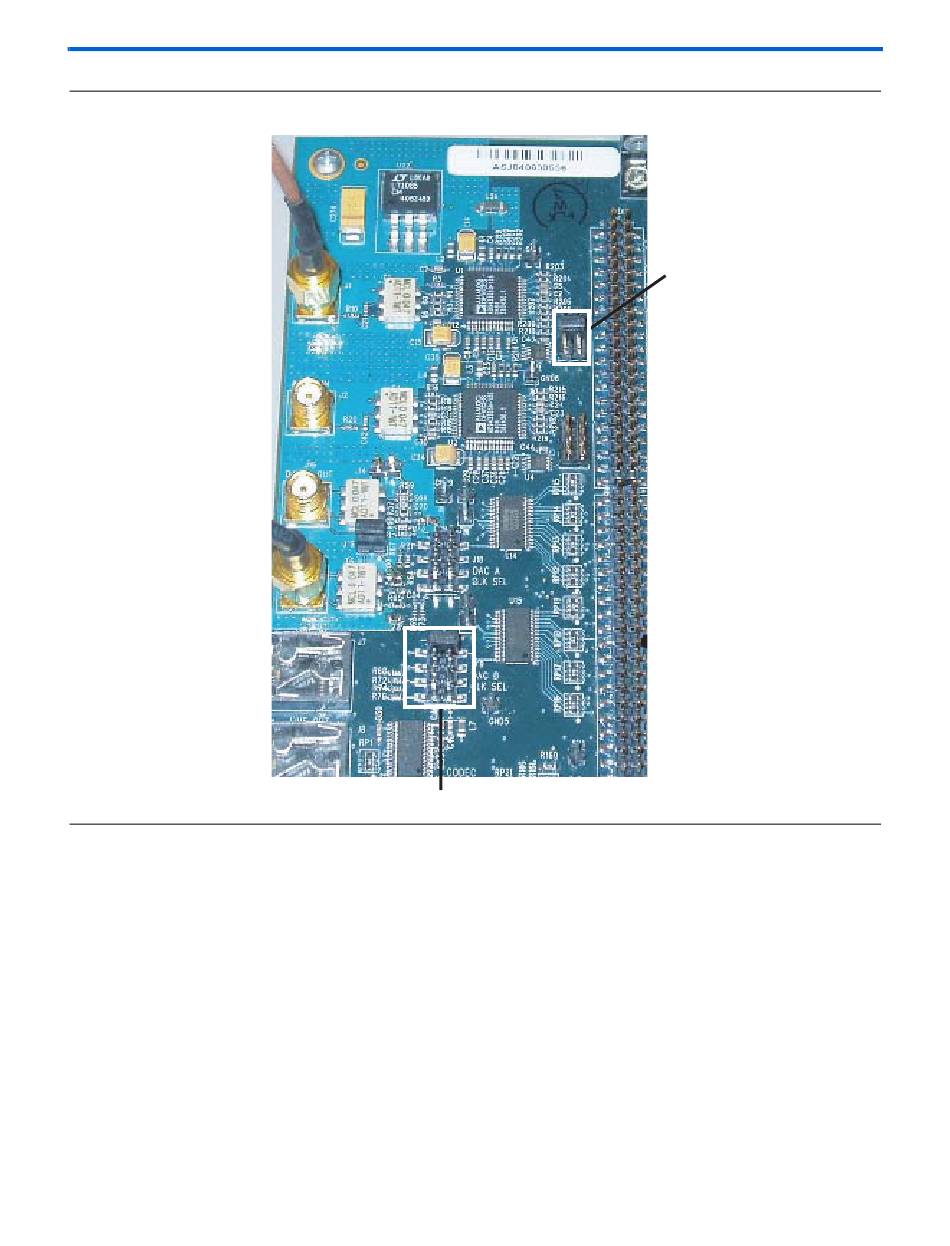

Figure 2–7. Locations of J3 and J19
Altera Corporation
May 2005
J19
4. Start the Quartus II software.
5. In the Quartus II software, open the sines project at
<path>\StratixII_DSP_Kit-v1.1.0\Examples\HW\FactoryDesign\
sines.qpf where <path> is the directory where the DSP Development
Kit, Stratix II Edition Version 1.1.0 CD-ROM is installed.
6. The Signal Tap II file (.stp) provided with the design, sines.stp, is
opened automatically when you open the sines project. To bring it
to the front, choose sines.stp (Window menu).
sines.stp displayed in the SignalTap II logic analyzer.
Development Kit Version 1.1.0
DSP Development Kit, Stratix II Edition Getting Started User Guide
J3
Figure 2–8 shows
