Software Installation

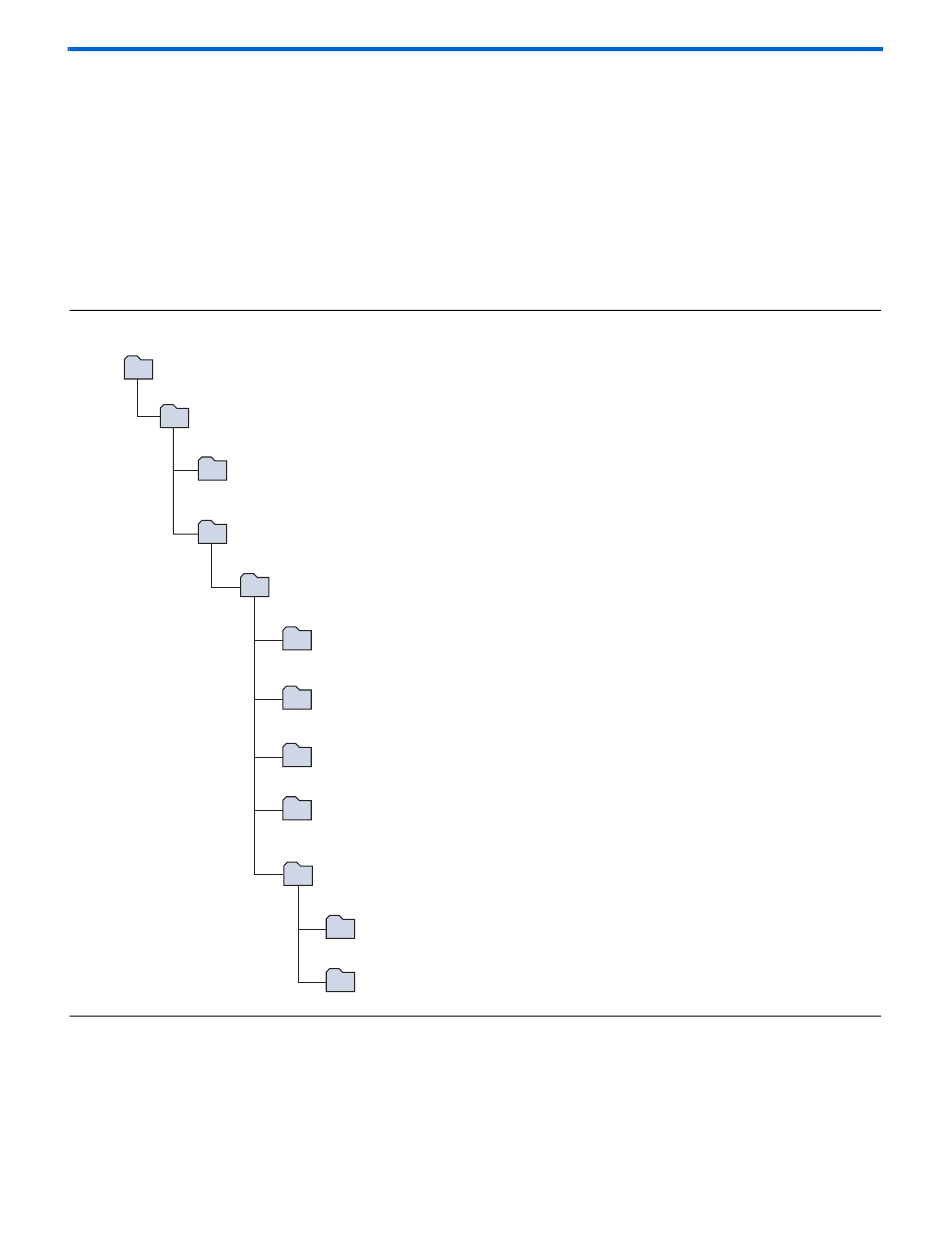

Figure 2–1. DSP Development Kit Directory Structure
<path>
StratixII_DSP_Kit-v1.1.0
Docs
Contains all DSP Development Kit, Stratix II Edition documentation, including board
design files and this user guide.
Examples
2–6
DSP Development Kit, Stratix II Edition Getting Started User Guide

Installing the Reference Designs and Lab

To install the reference designs and lab, insert the DSP Development Kit,
Stratix II Edition Version 1.1.0 CD-ROM into your CD-ROM drive. The
installation program runs automatically.
Figure 2–1 shows the DSP Development Kit, Stratix II Edition directory
structure, where <path> is the DSP Development Kit, Stratix II Edition
installation directory.
H/W
Board_diag_DSP
Contains a board diagnostic program based on the Nios II processor.
FactoryDesign
Contains the sines Quartus II project discussed on page 2-13 of this user guide.
Labs
Contains a basic Stratix II filtering lab.
Nios II
Contains Nios II example designs.
ReferenceDesigns
emif_ref_design_FFT
Contains an FFT co-processor reference design.
Imaging
Contains an edge detection reference design.
