Getting Started
Altera Corporation
May 2005
2. Choose Create SignalTap II List File (File > Create / Update menu)
The Quartus II software generates the file
sines_auto_signaltap_0.txt in the project directory.
Analyzing the Data in the MATLAB Software
To analyze the a2db data from sines_auto_signaltap_0.txt in MATLAB,
perform the following steps:
1. Start the MATLAB software.
2. At the MATLAB command prompt, type the following:
nstp_plot('sines_auto_signaltap_0.txt') r
The MATLAB software displays a normalized plot of DAC B input
similar to Figure 2–9.

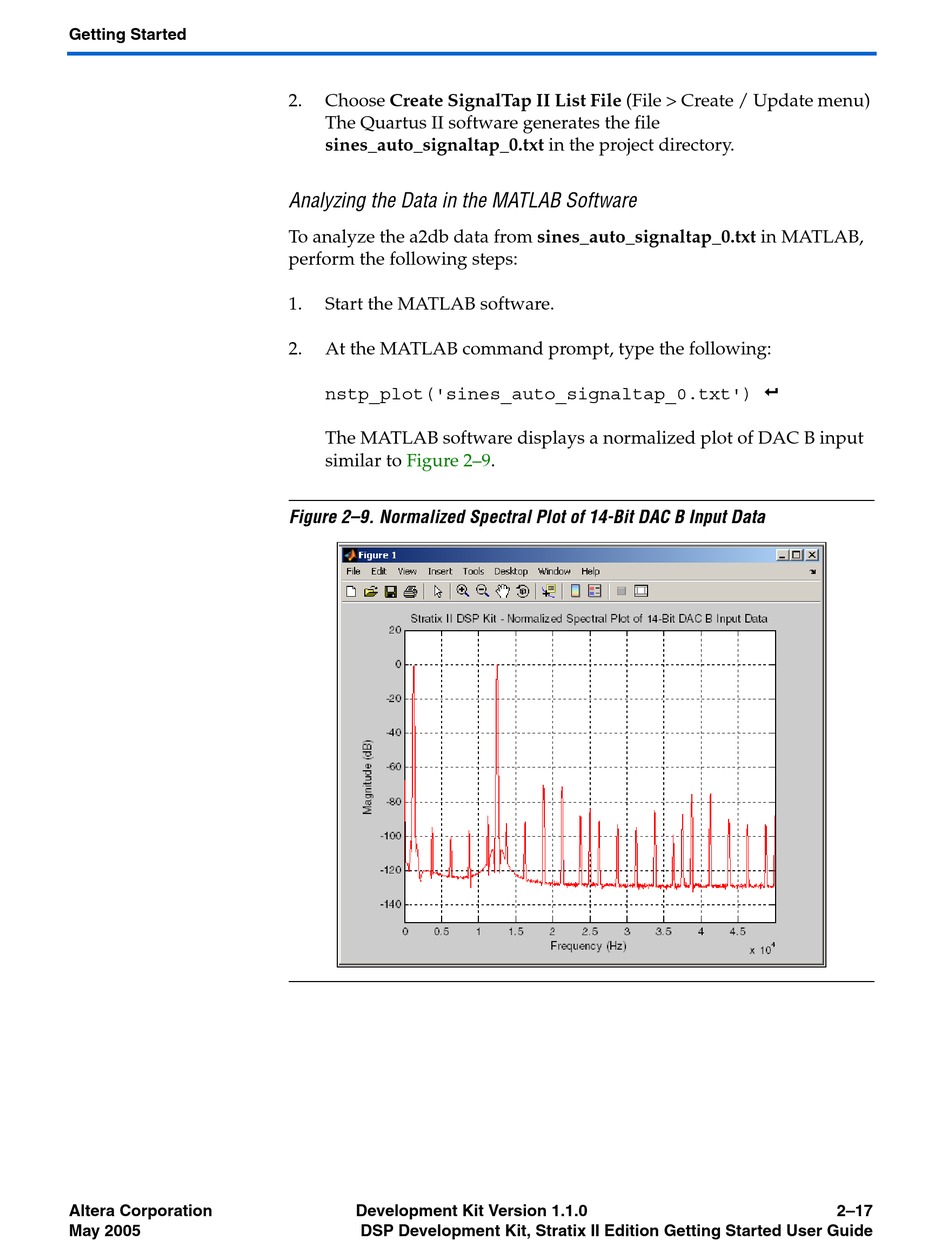

Figure 2–9. Normalized Spectral Plot of 14-Bit DAC B Input Data
Development Kit Version 1.1.0
DSP Development Kit, Stratix II Edition Getting Started User Guide
2–17
