Attach Monitors

Warning! Attaching the Monitors is a two-person job. Do not attempt to complete
this task by yourself.
To accommodate different Monitor designs, the ARMBARDUOG comes with two sets
of Screws that are different lengths and diameters.
To select the appropriate Screws for the type of Monitors that you're using, complete
the following:
• Determine whether the back of the Monitors are flush or inset.
• Determine the depth of the mounting holes on the Monitors.
• Determine the diameter of the mounting holes on the Monitors.
1. Position one of the VESA Adapters over the mounting holes on the back of one of
the Monitors.
Note: Make sure that you position the VESA Adapter so that the adjustment
thumbscrew on the VESA Adapter is facing towards the top of the Monitor.
2. Position four of the Flat Washers over the holes on the VESA Adapter.
3. Insert four of the M4x14 mm Screws or the M5x14 mm Screws through the
Washers, the VESA Adapter, and into the Monitor. (Figure 17)
4. Use a Phillips Screwdriver to tighten the Screws.
Warning! Do not over-tighten the Screws. If you encounter resistance while you're
tightening the Screws, stop tightening. Failure to do so could result in damage to the
Monitor.

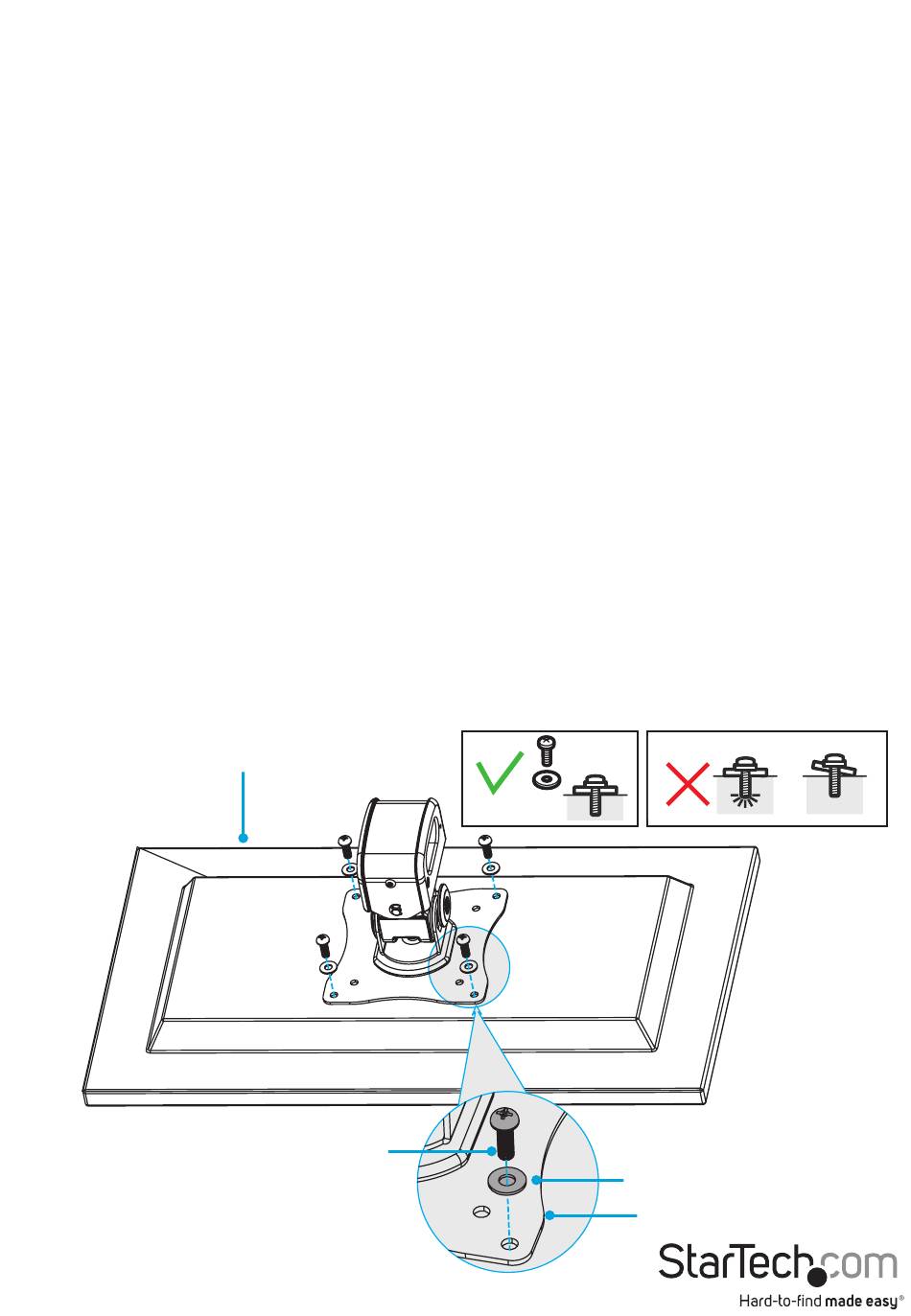

Figure 17
Top of monitor
User Manual
M4x14 mm Screw
OR
M5x14 mm Screw
14
Flat Washer
VESA Adapter
