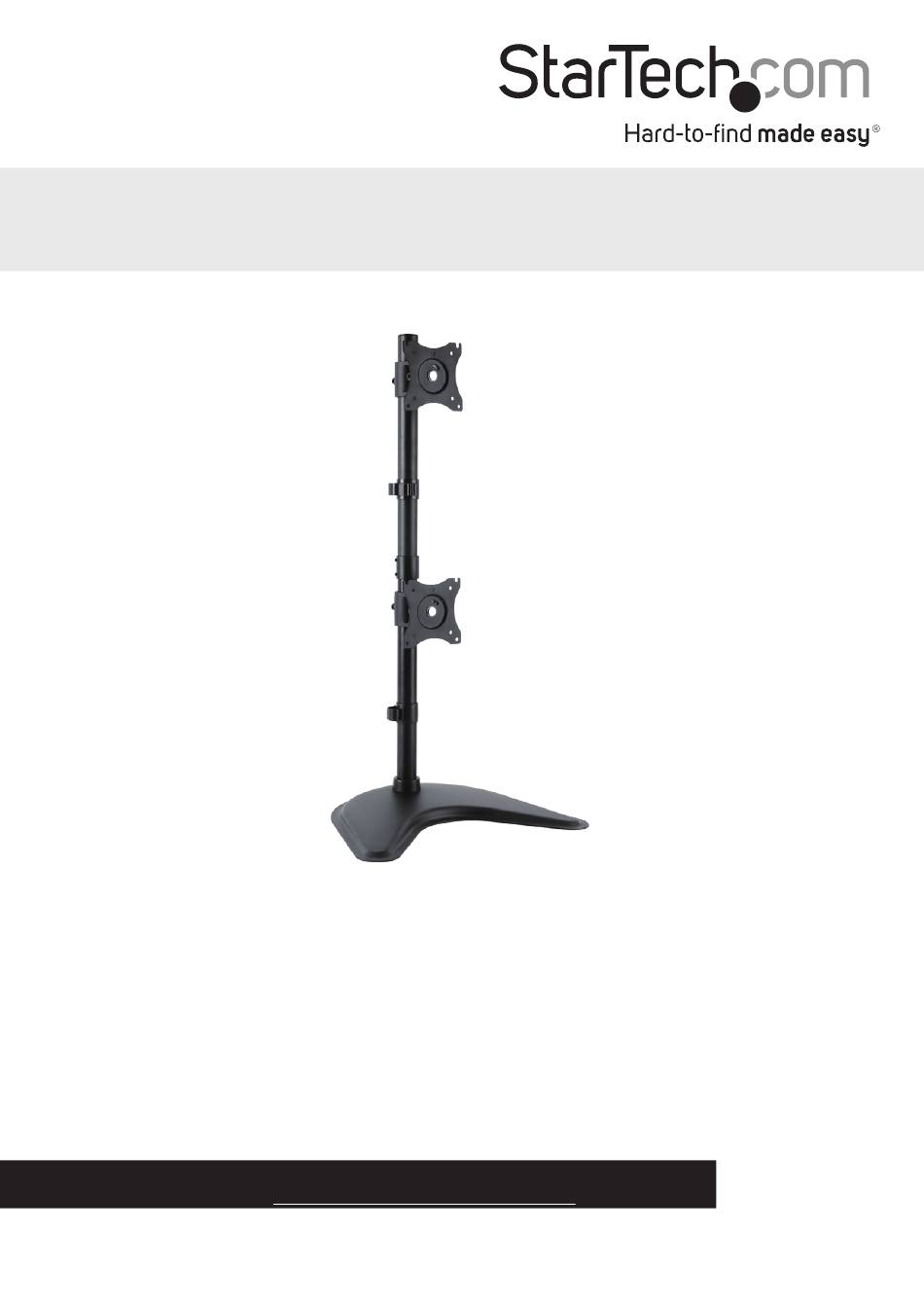

Dual-Monitor Stand - Vertical
ARMBARDUOV
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/ARMBARDUOV.
Manual Revision: 12/04/2018
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com ARMBARDUOV
Summary of Contents for StarTech.com ARMBARDUOV
- Page 1 Dual-Monitor Stand - Vertical ARMBARDUOV *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com For the latest information, technical specifications, and support for this product, please visit www.StarTech.com/ARMBARDUOV.
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
- Page 3 Warning statements Make sure to assemble this product according to the instructions. Failure to do so might result in personal injury or property damage. Make sure that the weight of the monitors doesn’t exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the equipment.
-
Page 4: Table Of Contents
Table of Contents Warnings ..............................i Introduction ....................1 Product diagram ............................1 Product dimensions ..........................2 Technical specifications .......................... 3 Package contents ............................4 Requirements ............................. 6 Assembly ....................7 Assemble the lower pole ........................7 Attach a VESA monitor mount......................8 Attach the upper pole .......................... -
Page 5: Introduction

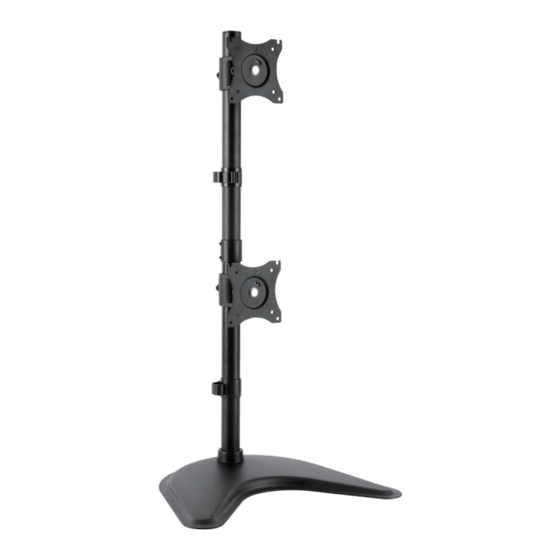

Introduction Product diagram VESA monitor mount Upper pole Cable-management clip Pole connector VESA monitor mount Cable-management clip Lower pole Baseplate Instruction manual... -
Page 6: Product Dimensions
Product dimensions ±45° ±45° 360° Instruction manual... -
Page 7: Technical Specifications
Technical specifications Type of measurement Measurement VESA mounting hole pattern 75x75 100x100 Weight capacity Up to 10 kg (22 lb.) per monitor mount Tilt +450 to -450 Screen size Between 330 mm and 686 mm (13 in. and 27 in.) Rotate 3600 Swivel... -
Page 8: Package Contents
Package contents Baseplate Lower pole Qty: One Qty: One Upper pole Pole connector Qty: One Qty: One VESA monitor mounts Cable-management clips Qty: Two Qty: Two Instruction manual... - Page 9 3 mm hex key Qty: One Qty: One 5 mm hex key 6 mm hex key Qty: One Qty: One M4x12 mm screws M5x12 mm screws Qty: Eight Qty: Eight Instruction manual...
-
Page 10: Requirements
Qty: Eight Qty: One Requirements • Two monitors or displays that are compatible with one of the mounting hole patterns that ARMBARDUOV supports • A Phillips screwdriver Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/ARMBARDUOV. Instruction manual... -
Page 11: Assembly
Assembly Warning! Make sure that the weight of the monitors does not exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the product. This product can support the following weight: Up to 22 lb. (10 kg). Assemble the lower pole 1. -
Page 12: Attach A Vesa Monitor Mount
Attach a VESA monitor mount 1. Slide one of the VESA monitor mounts down the lower pole. (figure 3) figure 3 VESA monitor mounts Lower pole 2. When the VESA monitor mount is at the desired height, use the 5 mm hex key to tighten the screw at the back of the VESA monitor mount. -
Page 13: Attach The Upper Pole
Attach the upper pole 1. Screw the pole connector onto the lower pole. 2. Attach the other cable-management clip to the upper pole. 3. Screw the upper pole into the pole connector. (figure 5) figure 5 Upper pole Cable-management clip Pole connector Lower pole 4. -
Page 14: Attach The Second Vesa Monitor Mount
Attach the second VESA monitor mount 1. Slide the other VESA monitor mount down the upper pole. (figure 7) figure 7 VESA monitor mount Upper pole 2. When the VESA monitor mount is at the desired height, use the 5 mm hex key to tighten the screw at the back of the VESA monitor mount. -
Page 15: Attach Monitors To The Vesa Monitor Mounts
A second person is required to keep the ARMBARDUOV upright as you attach the monitors. ARMBARDUOV is designed to be used with monitors that are the same size and weight. If you attach monitors that are different sizes and weights to the ARMBARDUOV, you... - Page 16 3. Carefully hook the screws into the top two slots on the VESA monitor mount on the upper pole. (figure 10) figure 10 Monitor M4x12 mm screw M5x12 mm screw VESA monitor mount 4. Use a Phillips screwdriver to tighten the screws. (figure 11) Caution! If the VESA monitor mount starts to slip down the upper pole when you add the weight of the monitor, remove the monitor and use the 5 mm hex key to tighten the screw in the side of the VESA monitor mount.
- Page 17 5. Place two washers over the mounting holes in the VESA monitor mount. 6. Insert two M4x12 mm screws or M5x12 mm screws through the washers, the mounting holes in the VESA monitor mount, and into the back of the monitor. (figure 12) Warning! Do not over-tighten the screws.
- Page 18 Use the 75x75 VESA mounting hole pattern to attach a monitor To accommodate different monitor sizes, the ARMBARDUOV comes with two sets of screws that are different lengths and diameters. To select the appropriate screws for the type of monitor that you’re using, complete the following: •...
-
Page 19: Adjust The Tilt Angle Of Your Monitor
Adjust the tilt angle of your monitor 1. To change the angle that a monitor is tilted at, use the 6 mm hex key to turn the screw in the side of the VESA monitor mount counterclockwise. 2. When the screw is loose, position the monitor at the angle that works best for you. 3. -
Page 20: Adjust The Monitors
Adjust the monitors +45° -45° 360° -45° +45° 360° Instruction manual... -
Page 21: Technical Support
Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 22 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
