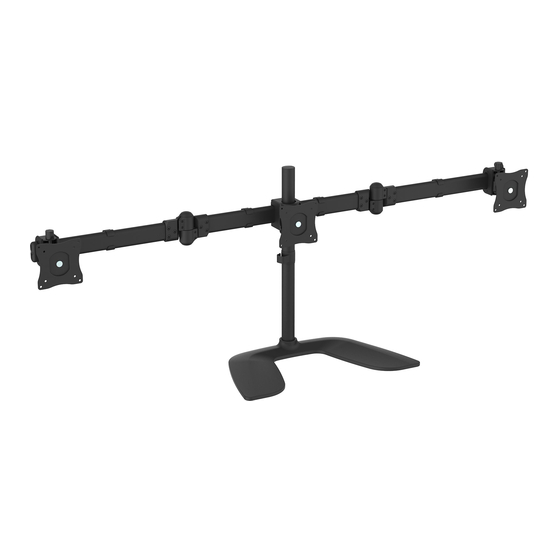

Triple-Monitor Stand
ARMBARTRIO2
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/ARMBARTRIO2.
Manual Revision: 07/05/2017
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com ARMBARTRIO2
Summary of Contents for StarTech.com ARMBARTRIO2
- Page 1 Triple-Monitor Stand ARMBARTRIO2 *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com For the latest information, technical specifications, and support for this product, please visit www.StarTech.com/ARMBARTRIO2.
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
- Page 3 Warning statements Mensagens de aviso Make sure that you assemble this product according to the instructions. Certifique-se de que monta este produto de acordo com as instruções. Read the entire manual and make sure that you understand the instructions before you start to Leia todo o manual e certifique-se de que entende as instruções antes de começar a montar e a assemble and use this product.
-
Page 4: Table Of Contents
Table of Contents Warnings ..............................i Product diagram ..................1 Product dimensions ................1 Technical specifications ................2 Package contents ...................3 Requirements ..................5 Assembling the triple-monitor stand ..........6 Assemble the base ............................ 6 Attach a monitor to the crossbar ......................7 Attach the VESA monitor mounts ....................... 8 Attach the monitors to the monitor arms .................. -
Page 5: Product Diagram
Product diagram VESA monitor mount VESA monitor mount Crossbar VESA monitor mount Right monitor arm Pole Left monitor arm Baseplate Product dimensions Instruction manual... -
Page 6: Technical Specifications
Technical specifications Type of measurement Measurement 75x75 100x100 VESA 17.6 lb. (8 kg) per monitor RATED LOAD 3600 ROTATION -300 to +300 TILT Up to 686 mm (27 in.) SCREEN -300 to +300 SWIVEL Instruction manual... -
Page 7: Package Contents
Package contents Crossbar VESA monitor mounts Qty: One Qty: Two Left monitor arm Right monitor arm Qty: One Qty: One Arm caps Pole Qty: Two Qty: One Instruction manual... - Page 8 Baseplate End caps Qty: One Qty: Two Cable-management clips Thumbscrews Qty: Four Qty: Two 3 mm hex key 5 mm hex key Qty: One Qty: One Instruction manual...
-
Page 9: Requirements
Qty: Twelve Qty: One Requirements • Three monitors that are compatible with one of the VESA mounting hole patterns that ARMBARTRIO2 supports • A Phillips type screwdriver Requirements are subject to change. For the latest requirements, please visit www.StarTech.com.ARMBARTRIO2. Instruction manual... -
Page 10: Assembling The Triple-Monitor Stand
Assembling the triple-monitor stand Assemble the base 1. Screw the pole into the baseplate. (figure 1) figure 1 Pole Baseplate 2. Use the 3 mm hex key to tighten the set screws to secure the pole to the baseplate. (figure 2) figure 2 Pole Baseplate... -
Page 11: Attach A Monitor To The Crossbar
This product can support up to 17. 6 lb. (8 kg) per monitor. 1. To accommodate different monitor designs, the ARMBARTRIO2 comes with two sets of screws that are different lengths and diameters. To select the appropriate screws for the type of monitors that you’re using, determine the depth and diameter of the... -
Page 12: Attach The Vesa Monitor Mounts
Attach the VESA monitor mounts Warning! Make sure that the weight of the monitors that you are using does not exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the product. This product can support up to 17.6 lb. -
Page 13: Attach The Monitors To The Monitor Arms
Attach the monitors to the monitor arms 1. Slide the left monitor arm through the VESA monitor mount attached to one of the monitors. 2. Slide the right monitor arm through the VESA monitor mount attached to the other monitor. (figure 5) figure 5 Right monitor arm VESA monitor mount... - Page 14 4. Insert a thumbscrew through the hole in each of the end caps and into the monitor arms, and tighten the thumbscrews in place. (figure 7) figure 7 End caps Thumbscrew Instruction manual...
-
Page 15: Attach The Crossbar And Monitor Arms
Attach the crossbar and monitor arms Warning! Attaching the crossbar and monitor arms is a two-person job. Do not attempt to complete this task by yourself. 1. Use the 3 mm hex key to loosen the screw in the collar on the pole. 2. - Page 16 4. Use the 5 mm hex key to tighten the four screws at the back of the crossbar. (figure 10) figure 10 5 mm hex key 5. Carefully place the left and right monitor arms over the projections on each end of the crossbar.
- Page 17 Arm cap Arm joint Arm joint 7. If you’re assembling the ARMBARTRIO2 for the first time, you need to tighten the two screws in the monitor arm joints. Use the 5 mm hex key to tighten the screws. (figure 13)
-
Page 18: Attach The Cable-Management Clips
Attach the cable-management clips 1. Snap the four cable-management clips over both of the monitor arms and the crossbar. (figure 14) figure 14 Cable-management clip 2. Route the monitor cables through the cable-management clips on the monitor arms and crossbar, down the pole, and through the cable-management clip on the pole. -
Page 19: Adjust The Position Of The Monitors
Warning! The most stable configuration of the ARMBARTRIO2 is in the “flat” position with all three of the monitors positioned in a straight line. ARMBARTRIO2 can become unstable depending on how you position the monitors. If you adjust the position of the monitors, you should exercise caution and test the stability of the ARMBARTRIO2 before you use it in the adjusted configuration. - Page 20 +300 to -300 +300 to -300 +300 -300 +300 3600 3600 3600 -300 1. To position the monitors in the way that works best for your setup, complete any of the following: • To adjust the angle of the left and right monitor arms, use the 5 mm hex key to loosen the two screws at each of the monitor arm joints.
- Page 21 • To adjust the tilt angle of the left and right monitors, use the 5 mm hex key to loosen the screw in the sides of the VESA monitor mounts. Position the monitors at the angle that you want them in, and use the 5 mm hex key to tighten the screws.
- Page 22 • To move the monitors along the monitor arms, use a Phillips screwdriver (not provided) to loosen the screw located on the underside of each of the VESA monitor mounts. Move the monitors left or right on the monitor arms, and tighten each of the screws when the monitors are in the locations that you want them in.
-
Page 23: Technical Support
Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 24 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
