Attach monitors to the VESA monitor mounts

Warning! Attaching a monitor is a two-person job. Do not attempt to complete this
task by yourself.
Tipping hazard! The ARMBARDUOV is free-standing and when you attach monitors
to it, you increase the tipping hazard. A second person is required to keep the
ARMBARDUOV upright as you attach the monitors.
ARMBARDUOV is designed to be used with monitors that are the same size and weight.
If you attach monitors that are different sizes and weights to the ARMBARDUOV, you
do so at your own risk
Use the 100x100 VESA mounting hole pattern to attach a monitor
To accommodate different monitor sizes, the ARMBARDUOV comes with two sets of
screws that are different lengths and diameters.
To select the appropriate screws for the type of monitor that you're using, complete
the following:
• Determine the depth of the mounting holes on the monitor.
• Determine the diameter of the mounting holes on the monitor.
1. Place two of the washers over the top two mounting holes on the back of the
monitor.
2. Insert two of the M4x12 mm screws or M5x12 mm screws through the washers
and into the back of the monitor. (figure 9)
Caution! At this point in the assembly, do not tighten the screws so that they are flush
against the monitor. To attach the monitor to the VESA monitor mount, you need to
leave a small gap between the screws and the monitor.

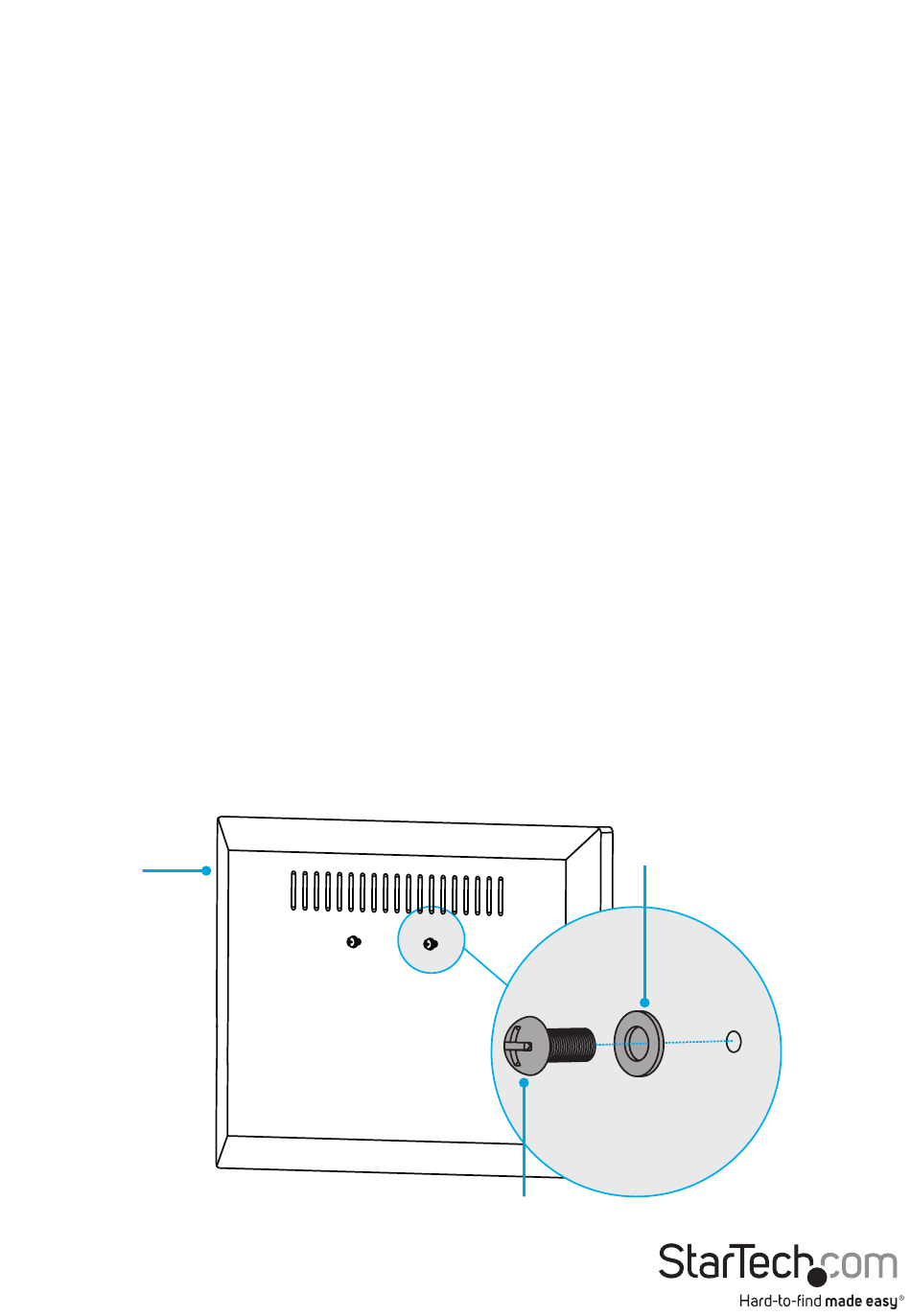

figure 9
Monitor
Instruction manual
M4x12 mm screw
or
M5x12 mm screw
11
Washer
