Summary of Contents for StarTech.com ARMDUOVS

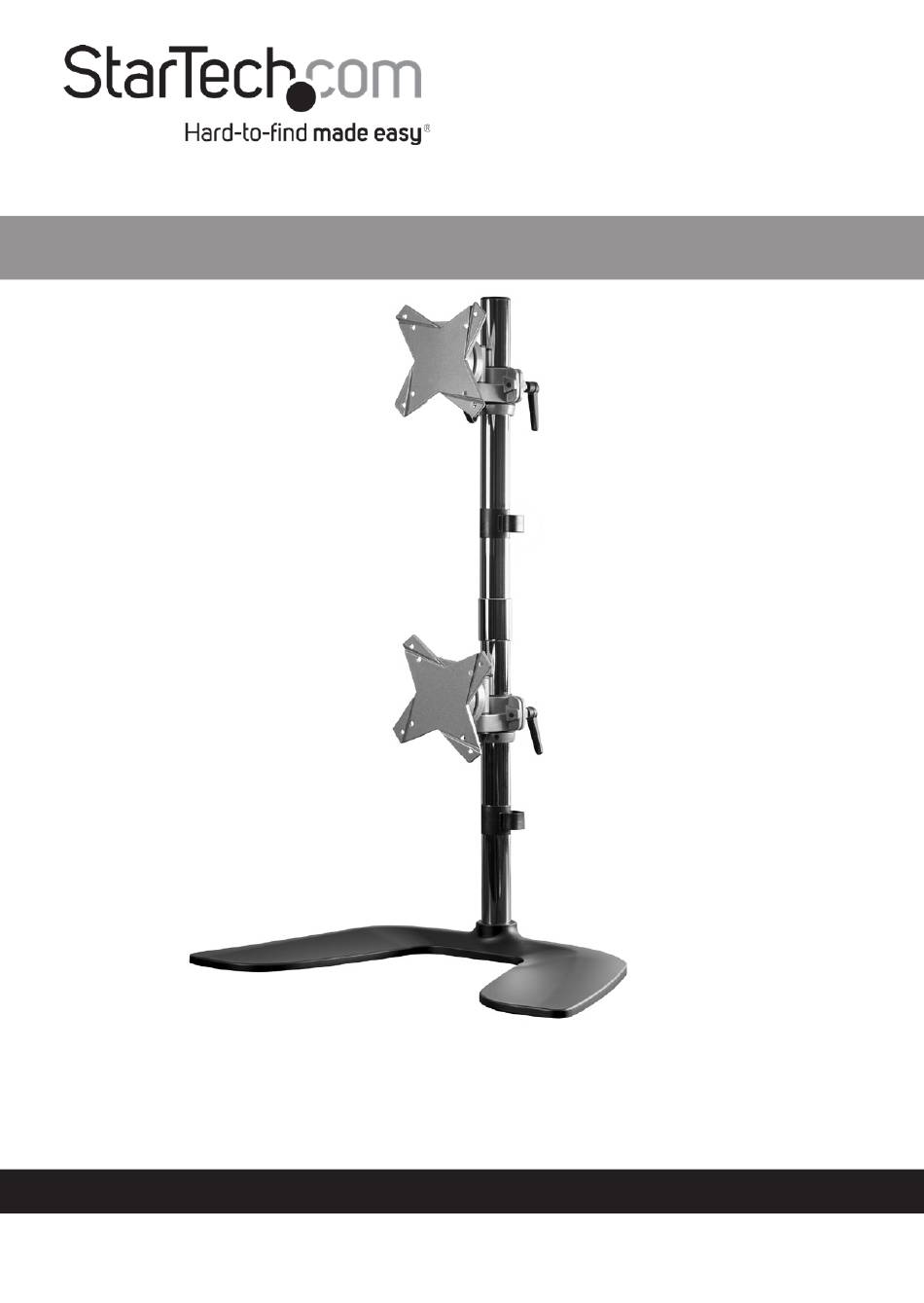

- Page 1 Vertical Dual Monitor Stand - Aluminum User Manual SKU#: ARMDUOVS For the latest information and specifications visit www.startech.com/ARMDUOVS Manual Revision: 05/17/2019...
- Page 2 This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual...
- Page 3 • Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 4: Warning Statements
Personen oder Schäden an Geräten führen. Dieses Produkt ist für folgendes Gewicht geeignet: 8 kg per monitor. • Das Produkt darf nicht bedient werden, wenn Teile fehlen oder beschädigt sind. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 5 Dit product ondersteunt het volgende gewicht: 8 kg per monitor. • Gebruik dit product nooit als er onderdelen ontbreken of beschadigd zijn. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 6 注意 • 必ず取扱説明書に従って本製品の組み立てを行って下さい。 取り扱いを誤 った場合に、 傷害を負う恐れや物的損害が発生する恐れがあります。 • 取り付けるモニターの重量が、 本製品で定められた最大積載重量を超えな いようにして下さい。 最大積載重量をオーバーした場合、 傷害を負う恐れや モニターや本製品に損害が発生する恐れがあります。 本製品は、 モニター1 台あたり10kgまで支持できます。 • 本製品で使用している部品の一部が紛失していたり損傷している状態で使 用するのは絶対に止めて下さい。 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 7: Table Of Contents
Adjust the Monitor Height ........................16 Adjust the Swivel ............................17 Adjust the Tilt and Rotation ........................18 Quickly Removing a VESA Mount ......................19 Quickly Attaching a VESA Mount ......................20 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 8: Product Information
M5 x 30 Screws 3 mm Hex Key 3 mm Hex Key with Screwdriver Spacers x 16 User Manual x 1 4 mm Hex Key Tip x 1 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Product Diagram
Product Diagram VESA Mount Height- Adjustment Knob Cable-Management Hook Collar Cable-Management Clip Upper Pole Pole Connector VESA Mount Height- Adjustment Knob Cable-Management Hook Collar Cable-Management Clip Lower Pole Base To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Product Dimensions
Product Dimensions To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 11: Technical Specifications
75x75 100x100 Weight Capacity Up to 17.6 lb. (8 kg) Per Monitor Tilt +150 to -150 Maximum Screen Size 27” (686 mm) Rotate 3600 Swivel +150 to -150 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 12: Requirements
Two Monitors • Note: Both Monitors must conform to the size, weight, and VESA pattern requirements (see Technical Specifications). Phillips Head Screwdriver • (Optional) Two People for Installation • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 13: Assembly
Place the Cable-Management Hooks onto the corresponding circular indentations on the VESA Mounts. Insert the Cable-Management Hook Screws through the Cable-Management Hooks and into the VESA Mounts. (Figure 1) Figure 1 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 14: Attach The Lower Column
3 mm Hex Key. Screw the Lower Pole onto the Base. Tighten the Hex Screws that are located on the Base using the 3 mm Hex Key. (Figure 2) Figure 2 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 15: Attach The Lower Vesa Mount
Note: Do not tighten the Height-Adjustment Knob yet. Figure 3 Attach the Upper VESA Mount Loosen the Hex Screws on the Pole Connector using the 3 mm Hex Key. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 16 Connect the Lower Pole to the Upper Pole using the Pole Connector: Screw the Pole Connector onto the Lower Pole. (Figure 4) Figure 4 Screw the Upper Pole into the Pole Connector. (Figure 5) Tighten the Hex Screws on the Pole Connector using the 3 mm Hex Key.
- Page 17 Figure 5 Figure 6 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 18: Attach The Monitors
ARMDUOVS is designed to be used with Monitors that are the same size and weight. If you attach Monitors that are different sizes and weights to the ARMDUOVS, you do so at your own risk. To accommodate different Monitor designs, ARMDUOVS comes with four sets of Screws that are different lengths and diameters. - Page 19 Mount align with the VESA Mounting Hole Pattern on the back of your Monitors. (Figure 8) Figure 8 Position four of the Washers over the holes on each of the VESA Mounts. (Figure 9) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 20 Monitor, use the Spacers to close the gap between your Monitor and the VESA Mount. Insert four of the appropriately sized Screws through the Washers, the VESA Mounts, and into each of the Monitors. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 21 Collar sits flush with the corresponding VESA Mount. Tighten the two Flat-Head Screws that are located on each Collar, using the 3 mm Hex Key with Screwdriver Tip. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 22: Cable Management
Do not attempt to complete this task by yourself. Tipping hazard! ARMDUOVS is free-standing and when you attach Monitors to it, you increase the tipping hazard. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 23: Operation
VESA Mounts. Tighten the two Flat-Head Screws on each of the Collars, using the 3 mm Hex Key with Screwdriver Tip. Note: Do not over-tighten these Screws. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 24: Adjust The Swivel
Swivel the Monitor to the desired position. Tighten the 4 mm Hex Screw using the 4 mm Hex Key. Note: Do not over-tighten the 4 mm Hex Screws. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 25: Adjust The Tilt And Rotation
Loosen the three Hex Screws on the rear of the VESA Mounts using the 3 mm Hex Key. (Figure 13) Figure 13 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 26: Quickly Removing A Vesa Mount
Note: Do not over-tighten the Hex Screws. Quickly Removing a VESA Mount Remove the two Hex Screws on the rear of the VESA Mounts using the 3 mm Hex Key. (Figure 14) Figure 14 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 27: Quickly Attaching A Vesa Mount
Insert the two Hex Screws through the Hex Screw Holes on the VESA Mount Holder and into the Hex Screw Holes on the VESA Mount. Using the 3 mm Hex Key, tighten the Hex Screw. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 28 Limitation of Liability In no event shall it be the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
- Page 29 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
