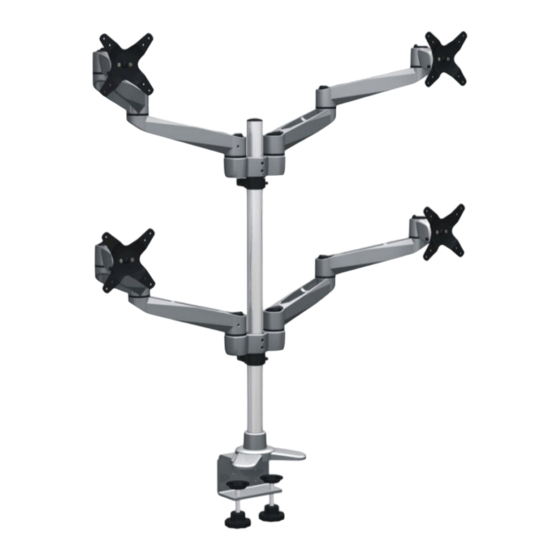

- Page 1 Quad Monitor Mount | Full Motion | Premium Actual product may vary from photos User Manual SKU#: ARMQUADPS For the latest information and specifications visit www.startech.com/ARMQUADPS Manual Revision: 09/16/2019...
-
Page 2: Compliance Statements
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual... -
Page 3: Warning Statements
Il prodotto è in grado di supportare i seguenti pesi: 45 kg. • Il prodotto è destinato all’uso in ambienti interni. Se ne sconsiglia l’impiego in ambienti esterni. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 4 • Dit product is alleen bedoeld voor binnengebruik en mag niet buiten worden gebruikt. 注意 • 必ず取扱説明書に従って本製品の組み立てを行って下さい。 • 本製品で定められた最大積載重量を超えないようにして下さい。 最大積載重量をオーバーした 場合、 怪我をする恐れや器物破損の恐れがあります。 本製品は、 モニター1台あたり45kgまで支 持できます。 • 本製品は、 室内での使用を想定しています。 戸外では使用しないで下さい。 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 5: Safety Statements
Säkerhetsåtgärder • Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 6: Table Of Contents
Attaching a Monitor Using the VESA Mount ................... 24 Attaching the Monitor Mount ......................25 Removing the Monitor Mount .............26 Adjusting the Monitor Tilt ..............27 Routing the Cables .................27 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 7: Product Diagram
Product Diagram Monitor Mount (x 4) Support Pole Swivel Arm (x 8) C-Clamp Swivel Arm Shoulder Cable-Management (x 2) Clip To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 8: Product Dimension
Product Dimension To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Product Rotation
Product Rotation To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Product Information
100x100 Tilt +900 to -150 Screen Size Maximum 27 in. (685 mm) Rotate 3600 Swivel 3600 Weight/Load Capacity 99.2 lb. (45 kg) Arm Extension 16.53 in. (420 mm) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 11: Package Contents
Package Contents Swivel Arms VESA Monitor Mounts Qty: Eight Qty: Four Swivel Arm Shoulder Support Pole w/Decorative Plate Qty: Two Qty: One To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 12 M3 Hex Key EVA Pad Qty: Four Qty: One Thumb Screws Lower Base Qty: Eight Qty: One Grommet Base Grommet Clip Qty: One Qty: One To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 13 Upper Base M5 x 14 mm Screw Qty: One Qty: Ten Cable Management Clip Qty: Four To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 14: Installation
Attaching the Grommet Base to the Support Pole Slide the four Pegs on the Decorative Plate (attached to the Support Pole) into the four Peg Holes on the Grommet Base. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 15 EVA Pad to the bottom of the Grommet Base, to cover the four M5 x 14 mm Screws to protect the mounting surface. Applying the EVA Pad To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 16 Hand Screw on the Lower Base. Removing a Hand Screw from the Lower Base Slide the Grommet Clip over the Hand Screw. Sliding the Grommet Clip onto the Hand Screw To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 17 Insert the Hand Screw with Grommet Clip through the Grommet Hole in the Mounting Surface and into the Grommet Base. Hand tighten the Hand Screw, securing the Support Pole in place. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 18: Using The C-Clamp
C-Clamp with the Mounting Holes on the Support Pole. Insert four M5 x 14 mm Screws through the Mounting Holes on the Upper Base and into the Mounting Holes on the Support Pole. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 19 Slide the four Pegs on the Decorative Plate (attached to the Support Pole) into the four Peg Holes on the Upper Base. Sliding the Pegs into the Peg Holes To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 20 Note: The thickness of the mounting surface must be be- tween .79” - 3.5” (20 mm - 90 mm). Use the M3 Hex Key to tighten the M5 x 14 mm Screws. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 21 C-Clamp over the edge of the mounting surface. Sliding C-Clamp over the Edge of Mounting Surface Using the Hand Screws tighten the C-Clamp until the C-Clamp is pressed tightly against the mounting surface. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 22: Attaching The Monitor Mount
Cable Management Clip. Slide the Swivel Arm Shoulder onto the Support Pole, so that it is resting on the second Cable-Management Clip. Sliding the Monitor Shoulder over the Support Pole To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 23 M3 Hex Key. Be careful not to over-tighten the Swivel Arm Shoulder. Tightening the Swivel Arm Shoulder Repeat steps 1 - 4 to install the second Swivel Arm Shoulder. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 24 Slide the Mounting Hole on Swivel Arm 1 over the Mounting Peg on the Swivel Arm Shoulder until it clicks into place. Sliding the Swivel Arms into Place To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 25: Attaching A Monitor Using The Vesa Mount
Note: When mounting the VESA mount the orientation of the Monitor is important. Insert the Thumb Screws through the Monitor Mount and into the back of the Monitor. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 26: Attaching The Monitor Mount
While supporting the weight of the Monitor, carefully slide the Mounting Hole on the Monitor Mount over the Mounting Peg on the Swivel Arm until it clicks into place. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 27: Removing The Monitor Mount
Sliding the Thumb Clip towards the Monitor Mount While holding the Thumb Clip and the weight of the Monitor Mount, lift the Monitor Mount up, sliding the Mounting Peg out of the Mounting Hole. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 28: Adjusting The Monitor Tilt
Thread the Cable through the hole in the Swivel Arms. Run the Cable through the Cable-Management Clip on the side of the Support Pole. Repeat steps 1 - 2 for any additional Monitors. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 29: Warranty Information
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 30 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
