Dual-monitor desk mount

Table of Contents

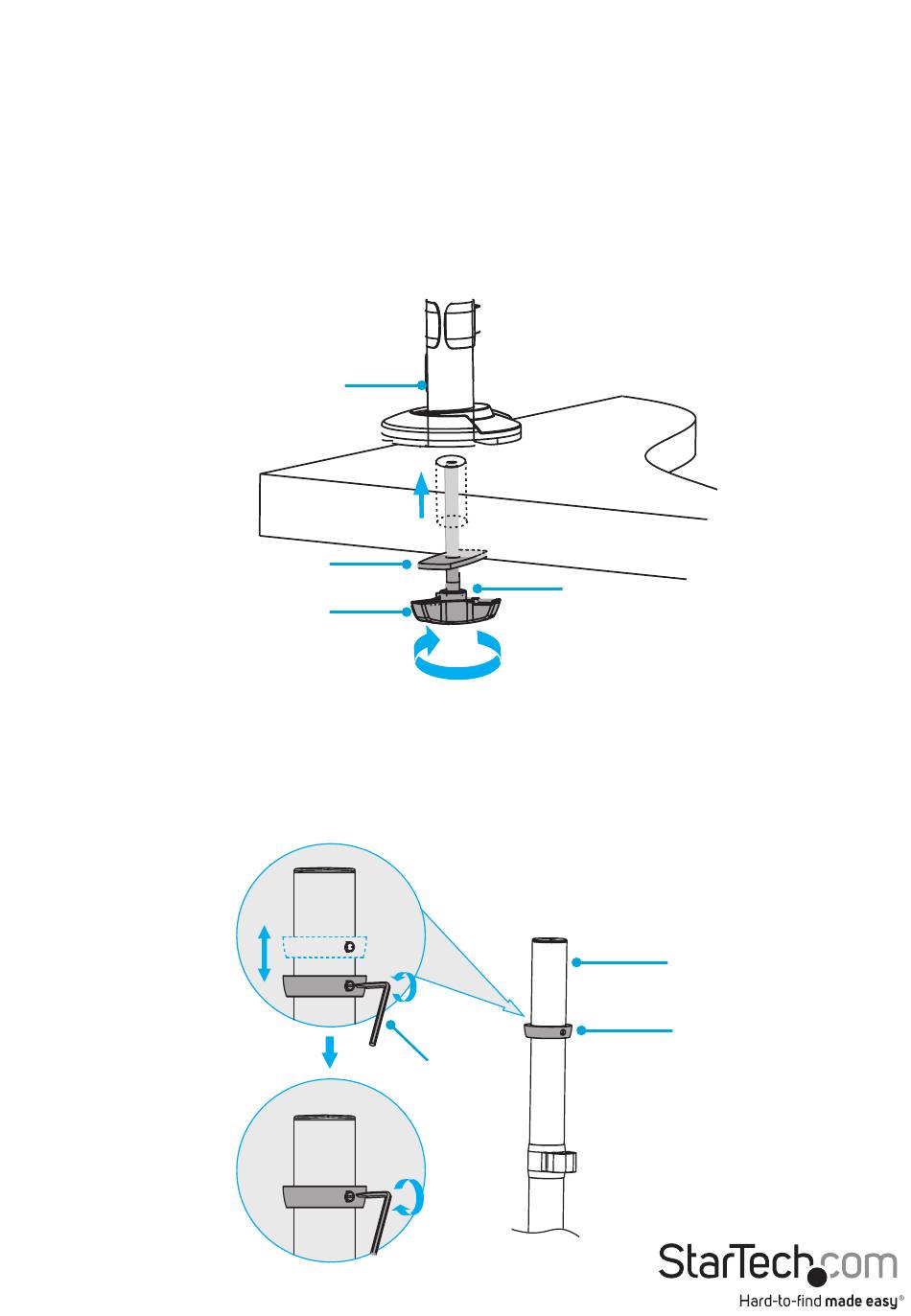

6. Thread the Grommet-Mounting Plate onto the Rod.

7. Place the assembled Column and Grommet-Mounting Adapter over the

grommet hole in the Mounting Surface. On the underside of the Mounting

Surface, insert the Rod up through the grommet hole and into the Column.

Note: The Grommet-Mounting Adapter can accommodate a grommet hole that is

between 10.5 and 50 millimeters (0.41 and 1.96 inches) in diameter.

Note: The Grommet-Mounting Adapter can accommodate a Mounting Surface that

is between 10 and 80 millimeters (0.4 and 3.1 inches) thick.

8. Turn the Knob clockwise to tighten. (Figure 13)

Figure 13

Grommet-

Mounting Plate

Attach Monitor Arms to the Column

1. Use the Hex Key Screwdriver to loosen the two screws in the Collar.

2. Slide the Collar to the height that you want the two Monitors to sit at, and use the

Hex Key Screwdriver to tighten the two Screws in the Collar. (Figure 14)

Figure 14

User Manual

Column

Knob

3 mm hex key

Rod

Column

Collar
