Programmable Pulse - Single Trigger; Single Trigger Setup - Arbiter Systems 1092A Operation Manual

7.8 Setting Programmable Pulse Mode 43
7.8.5 Programmable Pulse – Single Trigger
Use the "Single Trigger" mode to generate a pulse once per year at the specified Julian Day, hour,
minute, second and fractional seconds. For reference, many calendars indicate the Julian Day.
Refer to Section 7.8 above for additional detail on the Programmable Pulse mode, and entering
numerical values. For RS-232 command, see Section 10.2.12.

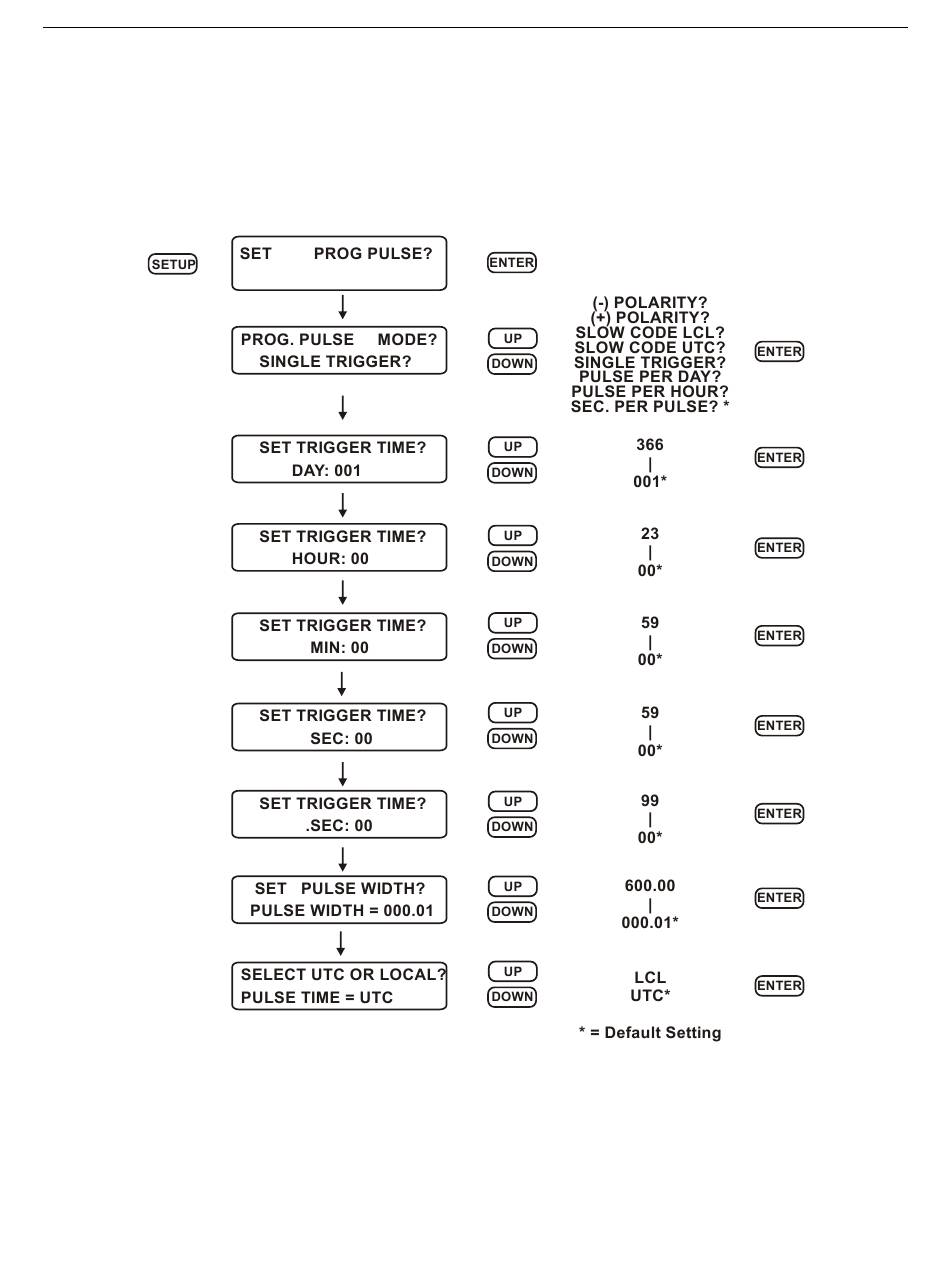

Figure 7.13: Single Trigger Setup
