C.7

Option 08: Inlet Power Supply Description

C.7.1

10 to 60 VDC ONLY, Terminal Power Strip, SWC

Option 08 replaces the standard IEC-320 power inlet module with a three-position, screw-type
terminal block, including Surge Withstand Capability (SWC). With DC ONLY inlet voltages from
10 to 60 VDC, this feature is intended for use in installations where it is necessary or desirable to
have the instrument power hard-wired.
WARNING: Do not apply AC voltages to the Option 08 terminals.

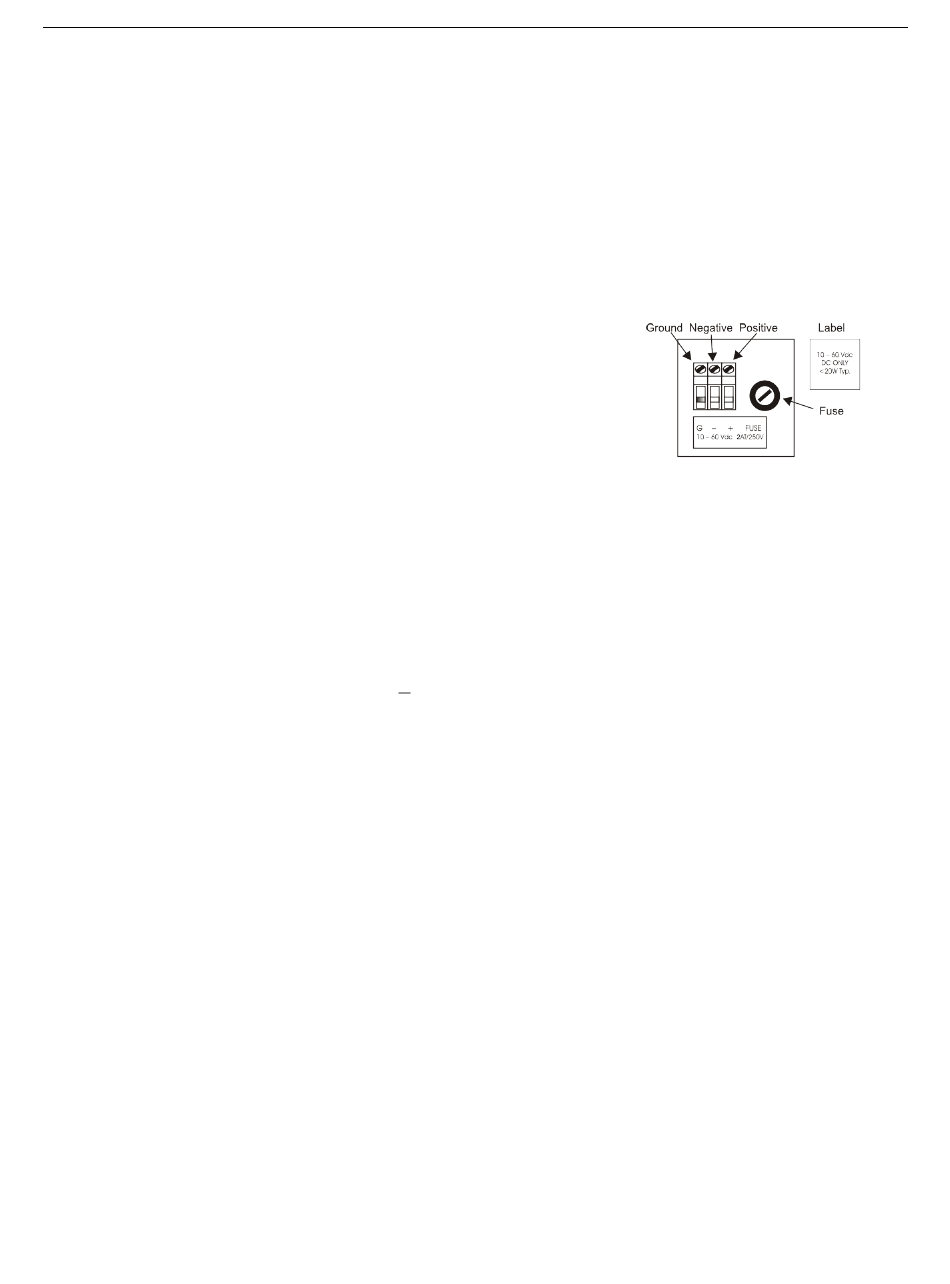

Figure C.5: Option 08 Power Supply Inlet
Description
C.7.2 Specifications
Input Power
DC Voltage:
Input Power:
Terminal Strip
Terminal Assignment:
Block Size:
Block Material:
Screw Size:
Screw Material:
Terminal Spacing:
Approvals:
Fuse
Type:
Current Rating:
Voltage Rating:
Size:
Surge Withstand Protection (SWC)
Provides input Surge Withstand Capability (SWC) in compliance with both ANSI C37.90 and IEC
801-4.
10 to 60 VDC
< 20 Watts, typical
Ground, ( ), (+)
Left to right, viewed from rear
49 mm W x 15 mm H x 16.5 mm D
(1.9" x 0.6" x 0.6")
Glass-filled thermoplastic
6–32 x 1/4"
Cadmium-plated steel
9 mm (0.35")
U.L. recognized; C.S.A. approved
Bussman GDC-2A
2 Ampere, time lag
250 Volts
5 mm x 20 mm
