2.3 Rear Panel Identification and Connectors
Enter
Used for confirming changes made within Setup menus. Generally, pressing Enter also advances to
the next parameter, or returns to the previous menu level. In numeric data entry mode, moves the
cursor to the right.
2.3 Rear Panel Identification and Connectors
This section contains information to assist you in identifying where to connect inlet power, the GPS
antenna cable and all of the input and output cables on the Model 1092A/B/C and 1093A/B/C
series clocks.

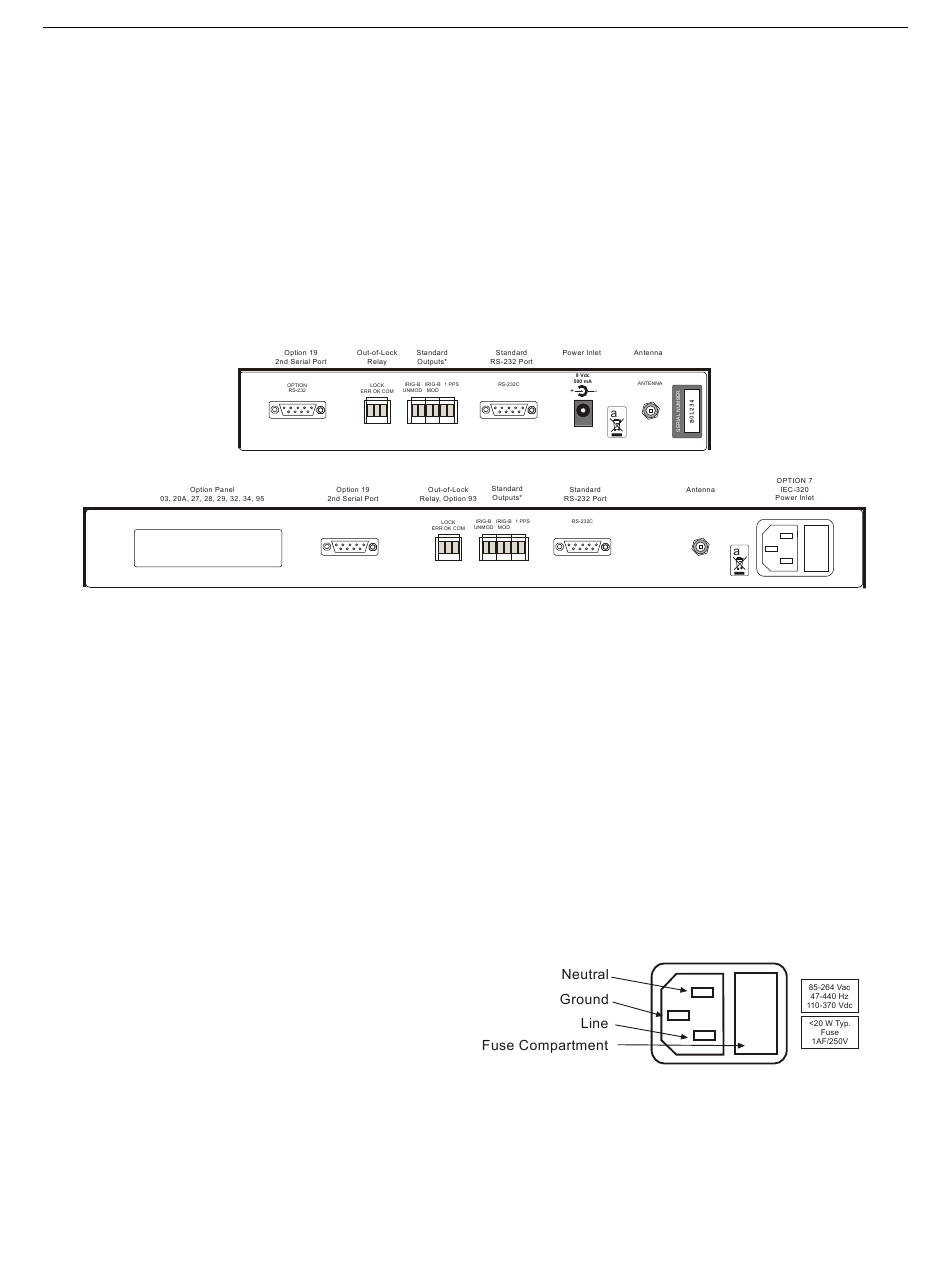

Figure 2.2: Model 1092A/B/C and 1093A/B/C Rear Panel Description*
*Note: Optional outputs may be shown.
2.3.1

Power Inlet

To cover all of the possible inlet power conditions, the Model 1093A/B/C has three optional power
supplies. The Model 1092A/B/C series clocks have an external power supply that connects to a
3.5 mm mini connector on the rear panel. Carefully examine the paperwork you received to make
sure you have correctly identified the inlet connection. The supply types described below apply to
the 1093A/B/C only.
Option 07. IEC-320 supply with a range of 85 to 264 VAC, 47 to 440 Hz and 110 to 370 VDC
(see Figure 2.3).
Figure 2.3: Option 07 Power Supply Inlet
Connector
Option 08. 10 to 60 VDC ONLY, Terminal Power Strip with Surge Withstand Protect Circuitry
(SWC) power (see Figure 2.4).
