C.13 Option 29: Four Additional Outputs; Dry Contacts; +25/50 VDC
C.13.4

Output Jumper Setting Changes

1. Set Line Power switch to OFF position (if equipped). Disconnect the power cord from rear-
panel.
2. Remove rack-ears (if equipped) and remove top cover using a T-25 Torx driver (4 screws).
3. Locate the appropriate Jumper using Figure C.9 and move the jumper to the desired setting.
4. Replace the top cover and rack-ears (if equipped).
5. Connect the power cord to the rear-panel and set the Line Power switch to ON position (if
equipped).

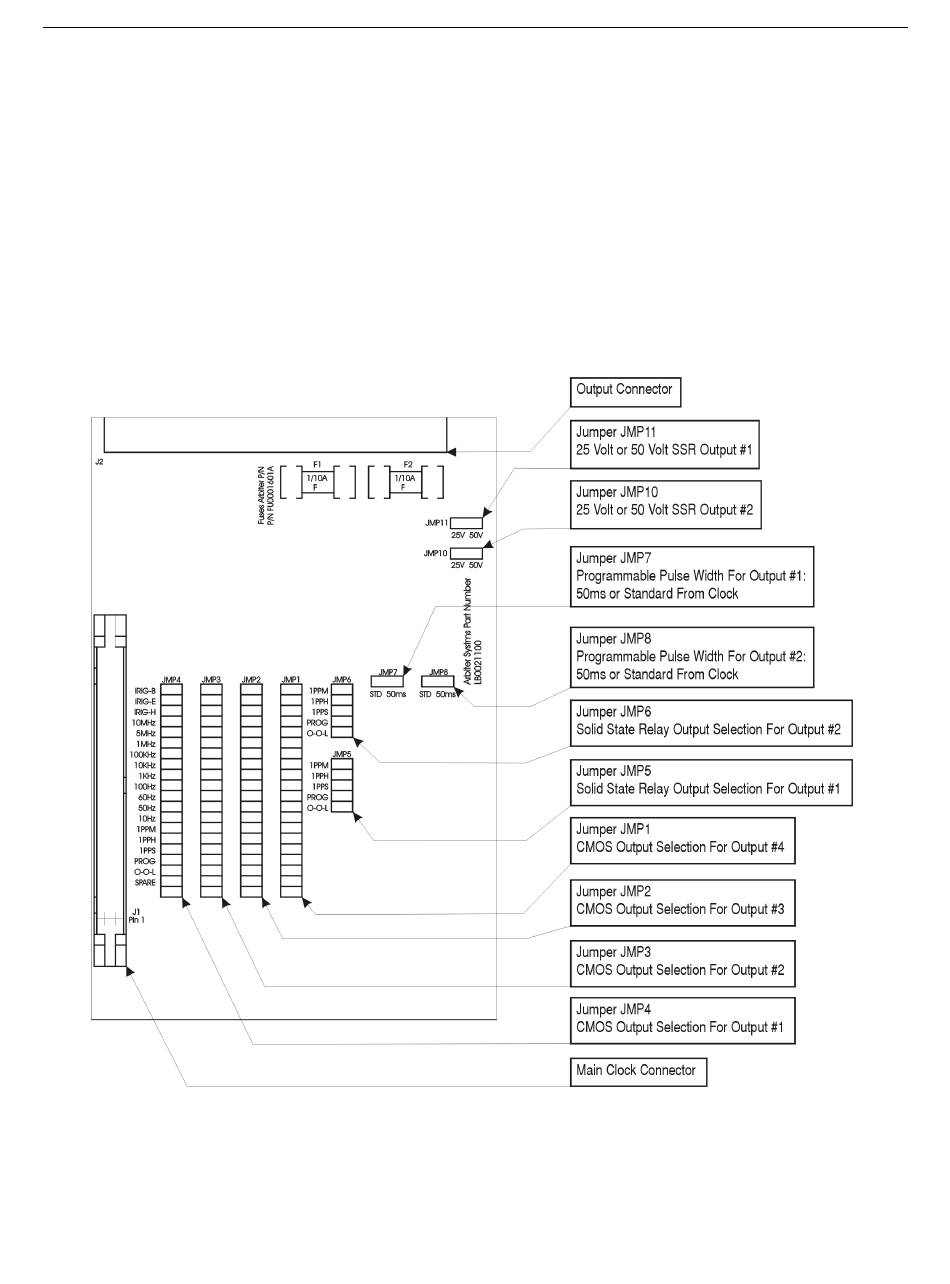

Figure C.9: Option 29 Jumper Locations
