C.14 Option 32/33: Internal NTP Server – Obsoleted by Opt34
C.14.2

Jumper Settings.

There are five jumpers on Option 32/33. Jumper 1 (JMP1) is determined by the clock model;
Jumper 2 (JMP2) determines board operation with JMP3 and JMP4; Jumper 3 (JMP3) determines
board operation with JMP2 and JMP4; JMP2 and JMP3 always move as a pair; Jumper 4 is used
with configuring NTP servers over the RS-232 port; Jumper 5 sets the board for Option 32 or 33.
See jumper settings in Table C.8.
Jumper Position
JMP1
JMP2
JMP3
JMP4
JMP5
Table C.8: Option 32/33 Jumper Truth Table – *Must set JMP4 into the Configuration mode – "B"
position for Rev B or later boards, "A" position for Rev. A boards.
Option Mode (Rev.B and following)
A Determined by Model 1088B
B Det. by Model 1084A/B/C or 1093A/B/C
A NTP Server(s)
B Clock serial port
C Configure NTP Server 1* via RS-232 only
D Configure NTP Server 2* via RS-232 only
A NTP Server(s)
B Clock serial port
C Configure NTP Server 1* via RS-232 only
D Configure NTP Server 2* via RS-232 only
A NTP Server(s)
B NTP Configuration
A Option 33
B Option 32

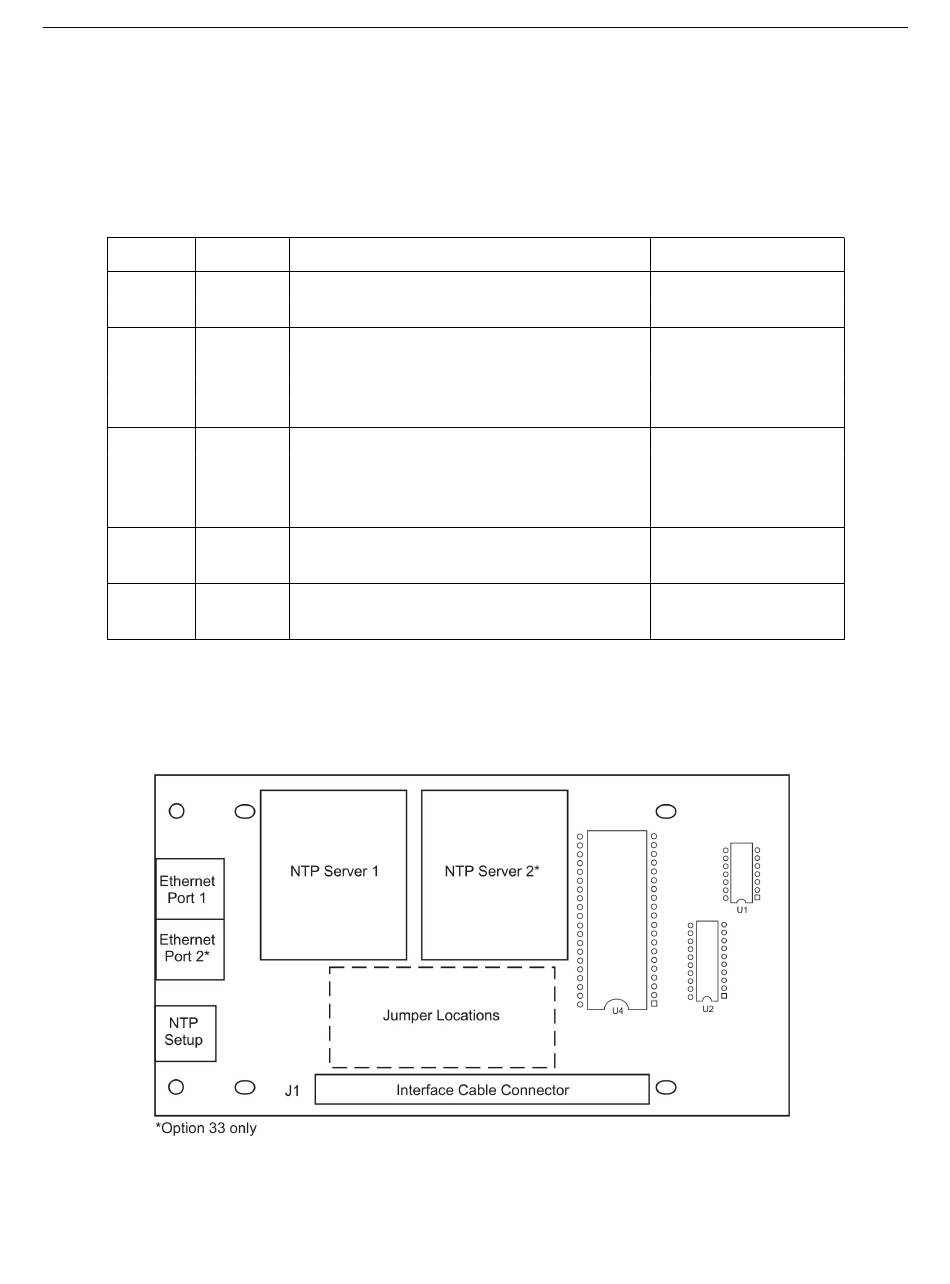

Figure C.12: Option 32/33 Board, Jumper Locations
Rev.A Board Modes
(same)
(same)
(same)
(same)
(same)
(same)
(same)
(same)
(same)
(same)
NTP Configuration
NTP Server(s)
(same)
(same)
