4.1 GPS Antenna Installation
Antenna mounting procedure:
1. Thread the RG-6 antenna cable through the plastic pipe.
2. Tighten the Type F male connector to the female connector on the antenna. WARNING!
Do not spin the antenna onto cable. Attach and tighten using cable nut.
3. Thread the plastic pipe into the antenna mounting nut.
4. Mount the plastic pipe and antenna/cable assembly to a fixture.
4.1.2

Optional Antenna Mounting Bracket, Kit P/N AS0044600

The AS0044600 antenna mounting kit is designed specifically for use with antennas shipped with
Arbiter Systems GPS-controlled clocks. The hardware included with the bracket allows installation
of the antenna on a mast or pipe up to about 2–in. in diameter, and a different clamp may be
substituted for use with a larger diameter pipe. Also, the bracket can be mounted to a wall, a roof,
or any other flat surface.
For complete details on this product request Installation Instructions for Arbiter Systems GPS
Antenna Mounting Bracket on document number PD0024700A. All metallic hardware is stainless
steel.
Qty
1
1
1
1
1

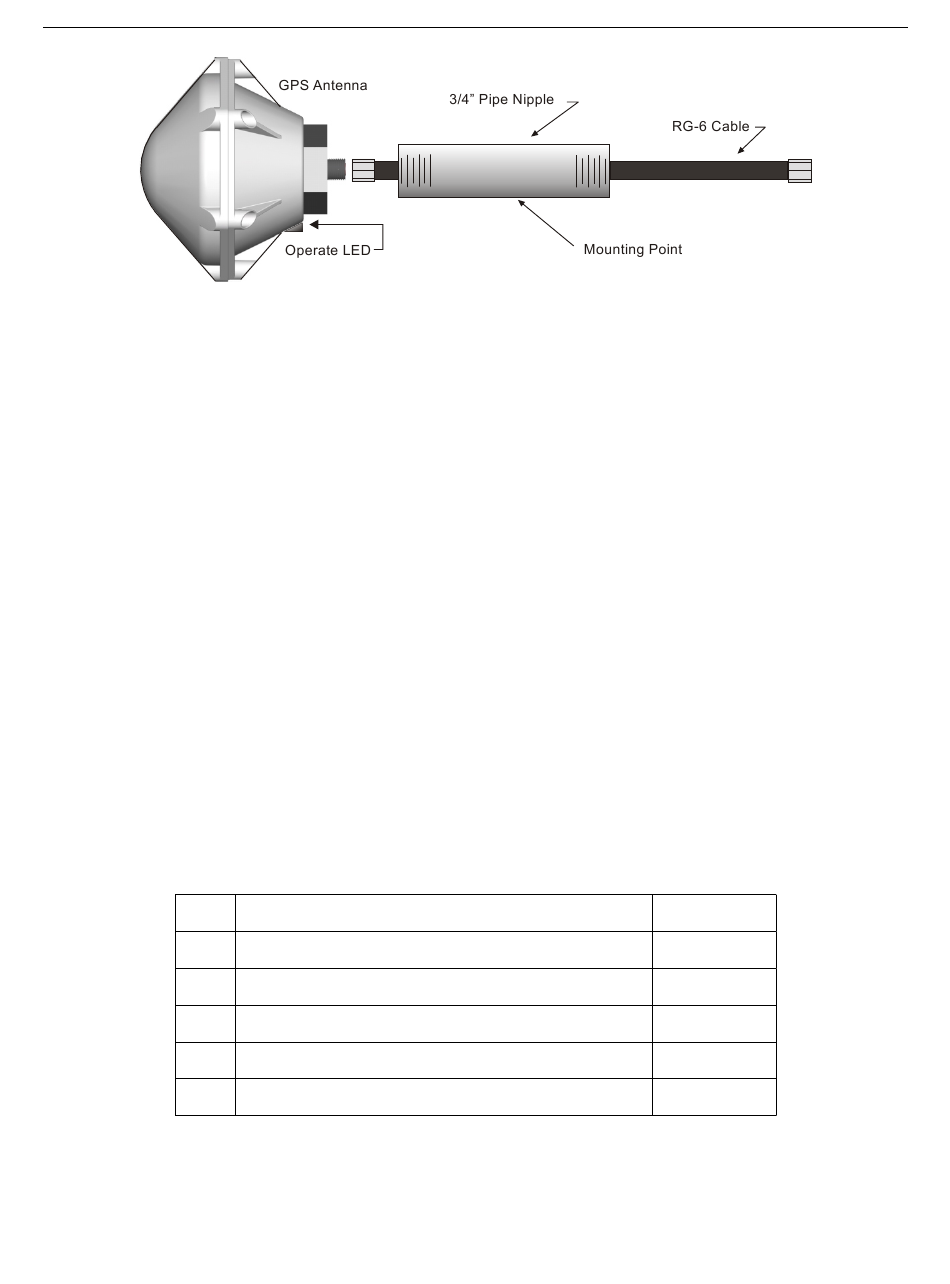

Figure 4.1: Antenna Assembly for Mounting
Description
GPS antenna mounting bracket
U-bolt, 1-1/8–in., with 2 hex nuts
3/4 x 4–in. threaded pipe, PVC, schedule 80
Hose clamp, worm drive
Mounting bracket stabilizer
Table 4.1: Antenna Mounting Bracket Parts List
ASI P/N
HD0052700
HP0014700
HP0014804
HP0014900
HD0054200
15
