C.15 Option 34: NTP/PTP Server
149
Configure SNMP
Follow these instructions to configure SNMP operation in the Option 34. Figure C.24 illustrates
the different selections for enabling the service and selecting traps (notifications). For definitions
of SNMP "Configure" selections, see Section C.15.5.

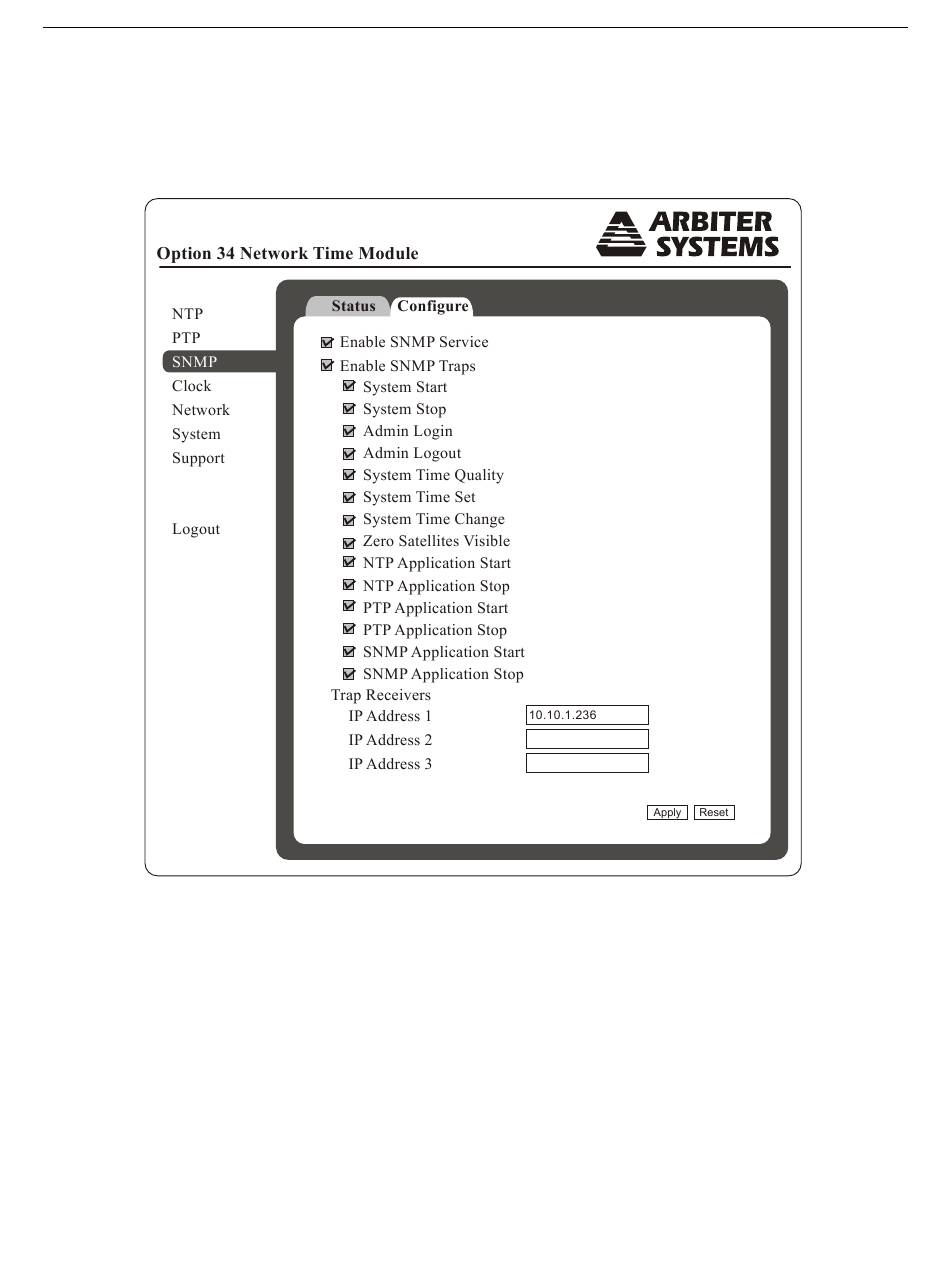

Figure C.24: SNMP Configuration Page
Checking the box enables the specific item; unchecking disables the specific item in the SNMP
Configure page. For example, checking the "Enable SNMP Service" turns ON the service. Enabling
SNMP Traps and checking specific SNMP traps (or notifications) will not send any notification
unless a Trap Receiver is specified by an IP address. Make sure to click the Apply button or the
changes will be lost.
