96

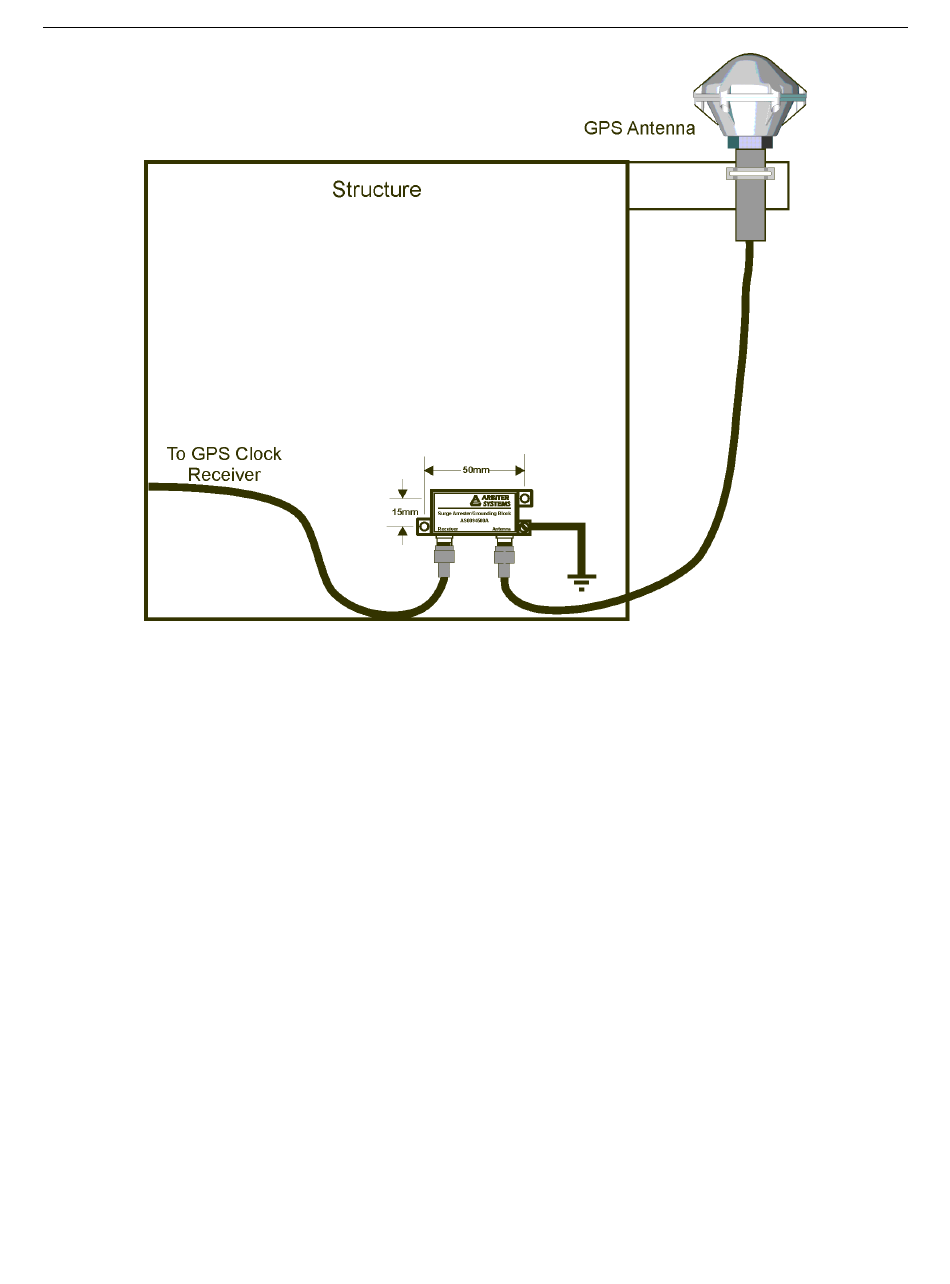

Figure B.2: Suggested Mounting of the AS0094500 Surge Arrester
B.4
Physical Dimensions
Overall:
Mounting Hole Dim:
Mounting Hole Dia:
F Connector Dim:
Weight:
59mm x 38mm x 18mm (2.32in x 1.49in x 0.71in) LxWxH
50mm x 15mm
4mm (0.157in)
24mm, center to center
48.2 g (1.7 oz)
Using a Surge Arrester
