How to Install

3 How to Install

3.1 Connecting the Bus Line

Terminate the bus line at both ends of each segment. A
mismatch of impedance may result in reflections on the
line resulting in corrupt data transmission.
The Profibus Option Card contains a suitable termination.
To activate the termination, turn on Switch 1 on the
Profibus converter option. By default, the switch is turned
off.
NOTICE
Notice that pin numbers are colour
coded on the Profibus connector.
®
Unlike the VLT 5000, the FC 302 Profibus connectors are
colour-coded to avoid swapping the bus wires.

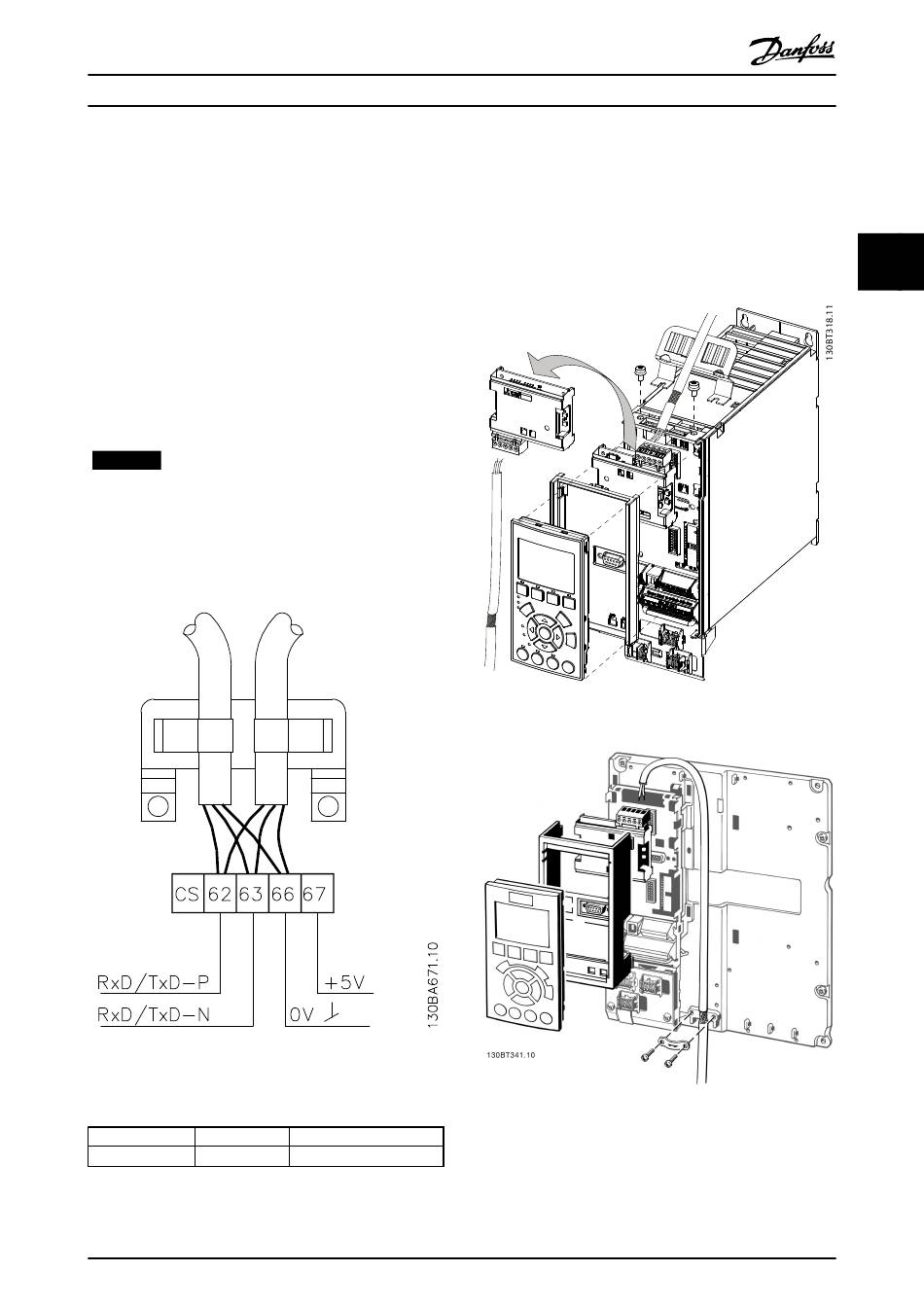

Illustration 3.1 Connecting Bus Wires to VLT PROFIBUS
Converter MCA 114
Profibus B 62 = RxD/TxD
Profibus A 63 = RxD/TxD
Table 3.1 Correct Colour-Coding
®
VLT AutomationDrive FC 302 PROFIBUS Converter Operating Instructions
Positive, red cable
Negative, green cable
MG34N202 - Rev. 2013-10-15
3.2 How to Install Option in Frequency
Converter
Illustration 3.2 Installing Fieldbus Option
Illustration 3.3 Cable Holders
1. Remove the LCP from the FC 302.
2. Remove the frame below the local control panel.
3 3
