How to Install

3 How to Install
3.1.1 The EtherNet/IP Option
3 3
Ethernet Port 1
MS LED
NS LEDs

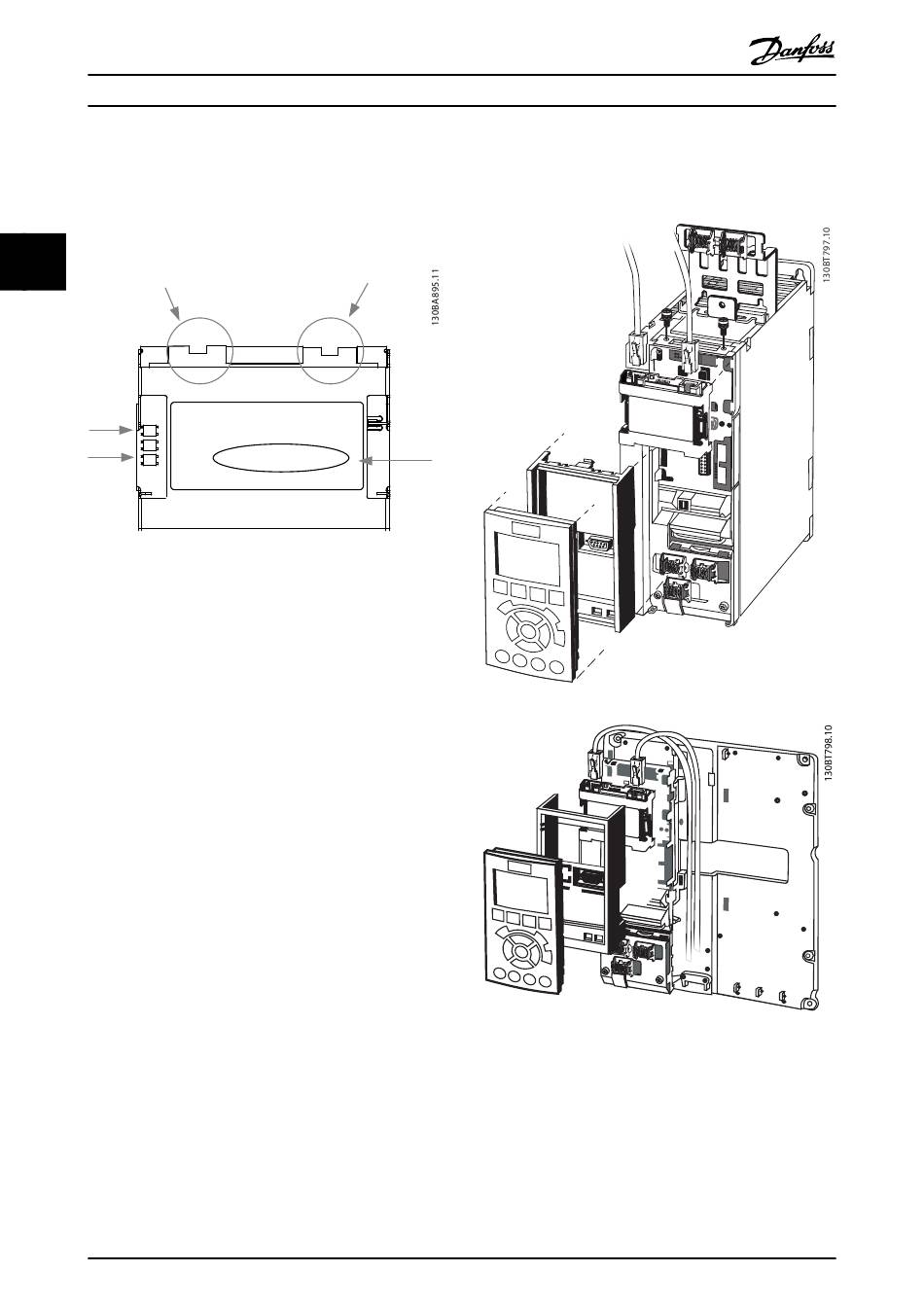

Illustration 3.1 Overview of the option
3.1.2 How to Install Option in Frequency
Converter
Items required for installing a fieldbus option in the
frequency converter:
- The fieldbus option
- Fieldbus option adaptor frame for the frequency
converter. This frame is deeper than the standard
frame, to allow space for the fieldbus option
beneath
- Strain relief (only for A1 and A2 enclosures)
6
Ethernet Port 2
Ethernet Port 1
Ethernet Port 2
MCA 121 Option A
MS
EtherNet/IP 130B1119
NS1
MAC: 00:1B:08:XX:XX:XX
NS2
SW. ver. 1.00
MG.90.J3.02 - VLT
MCA 121 EtherNet/IP
MAC
address
Instructions:
-
-
-
-
®
is a registered Danfoss trademark
Et he rN
et Po rt1
M CA 12
Et he rN
1
et Po rt2
Et he rN
Op tio n
et /IP
M S A
13 0B 11
M S1 19
MA C- 00
M S2
-1B -08 -00
-00 -22
SW .ve r.
Remove LCP panel from the frequency converter.
Remove the frame located beneath and discard it.
Push the option into place. The Ethernet
connectors must be facing upwards.
Remove both knock-outs on the fieldbus option
adaptor frame.
