Chapter 2: Jumpers and Connectors

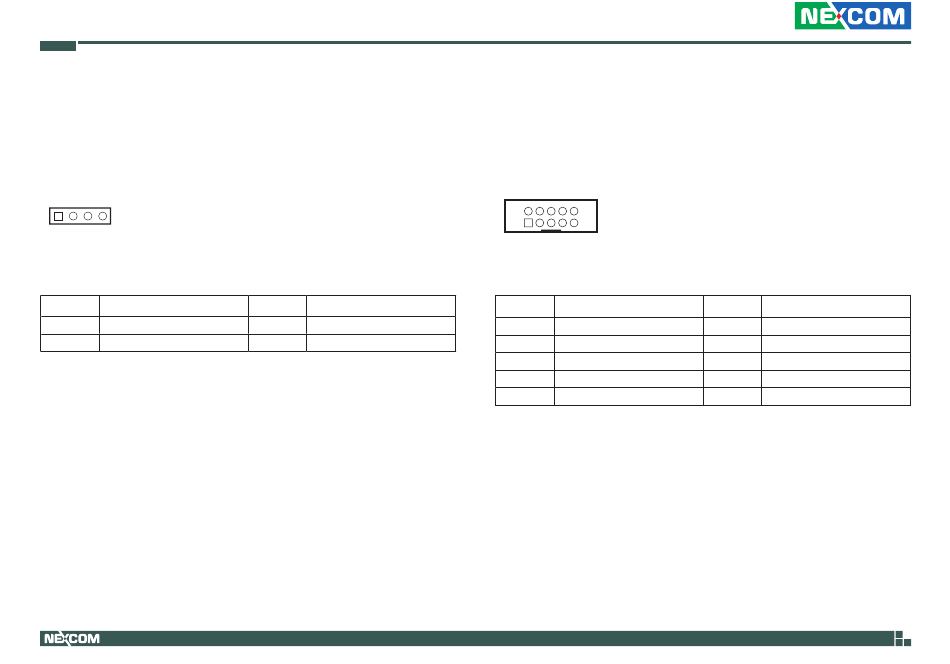

MCU Debug I/F
Connector type: 1x4 4-pin header, 2.54mm pitch
Connector location: JP1
1
4
Pin
Definition
1
VCC3
3
MCU_SBWTDIO
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
MCU_SBWTCK
4
GND
MCU LED Indicator Connector
Connector type: 2x5 10-pin header, 2.0mm pitch
Connector location: CN1
10
2
1
9
Pin
Definition
1
MCU_LSENPW
3
MCU_LSEN
5
MCU_PIRC
7
MCU_BKC
9
GND
55
Pin
Definition
2
MCU_LED_5
4
MCU_LED_4
6
MCU_LED_3
8
MCU_LED_2
10
MCU_LED_1
IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual
