Chapter 2: Jumpers and Connectors

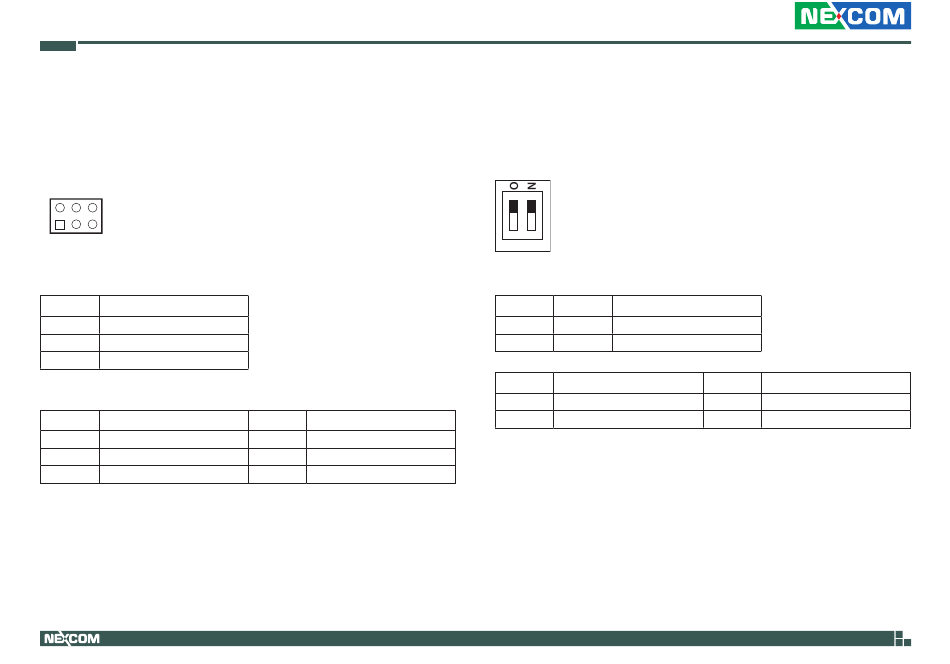

RI Feature Selection (COM4)

Connector type: 2x3 6-pin header, 2.0mm pitch
Connector location: JP13
2 6
1 5
Pin Settings
1-2 On RI (Default)
3-4 On VCC5
5-6 On +12V
1-2 On: default
Pin Definition
1 SP4_PSRI#
3 SP4_PSRI#
5 SP4_PSRI#
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 SP4_RI#
4 ISO_VCC5
6 ISO_+12V

Dimming Type Select

Connector type: 2-pin DIP switch
Connector location: SW1
1 2
SW1-1 SW1-2
OFF ON
ON OFF
Pin Definition
1 PWM_dimming
3 PL_BKLTCTRL
41
Settings
CCFL Mode
PWM Mode
Pin Definition
2 CCFL_dimming
4 PL_BKLTCTRL
