Chapter 2: Jumpers and Connectors

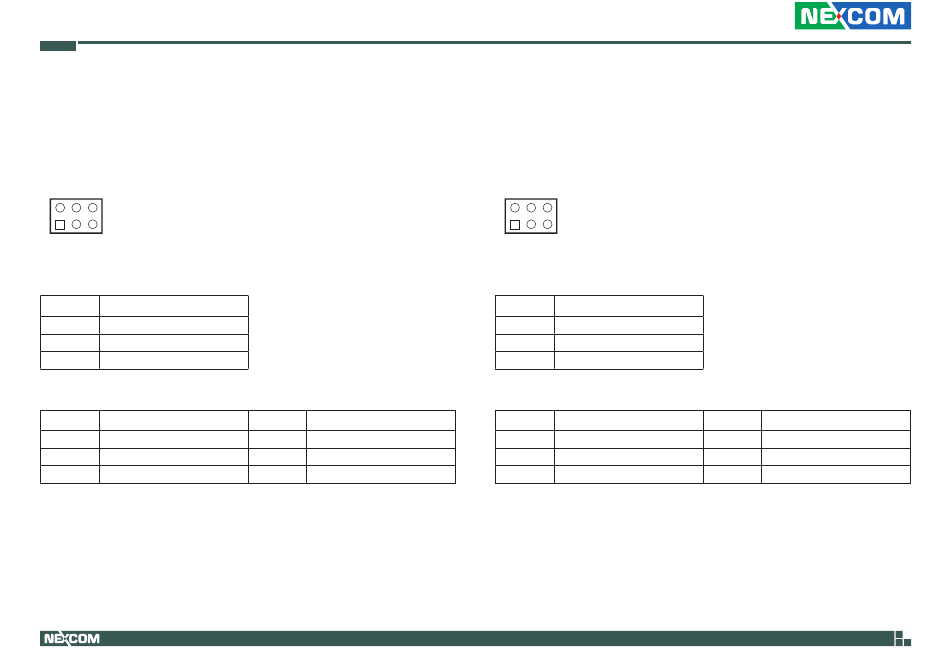

RI Feature Selection (COM2)

Connector type: 2x3 6-pin header, 2.0mm pitch
Connector location: JP8
2 6
1 5
Pin Settings
1-2 On RI (Default)
3-4 On VCC5
5-6 On +12V
1-2 On: default
Pin Definition
1 SP2_PSRI#
3 SP2_PSRI#
5 SP2_PSRI#
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 SP2_RI#
4 ISO_VCC5_A
6 ISO_+12V

RI Feature Selection (COM3)

Connector type: 2x3 6-pin header, 2.0mm pitch
Connector location: JP9
2 6
1 5
Pin Settings
1-2 On RI (Default)
3-4 On VCC5
5-6 On +12V
1-2 On: default
Pin Definition
1 SP3_PSRI#
3 SP3_PSRI#
5 SP3_PSRI#
40
Pin Definition
2 SP3_RI#
4 ISO_VCC5
6 ISO_+12V
