Chapter 2: Jumpers and Connectors

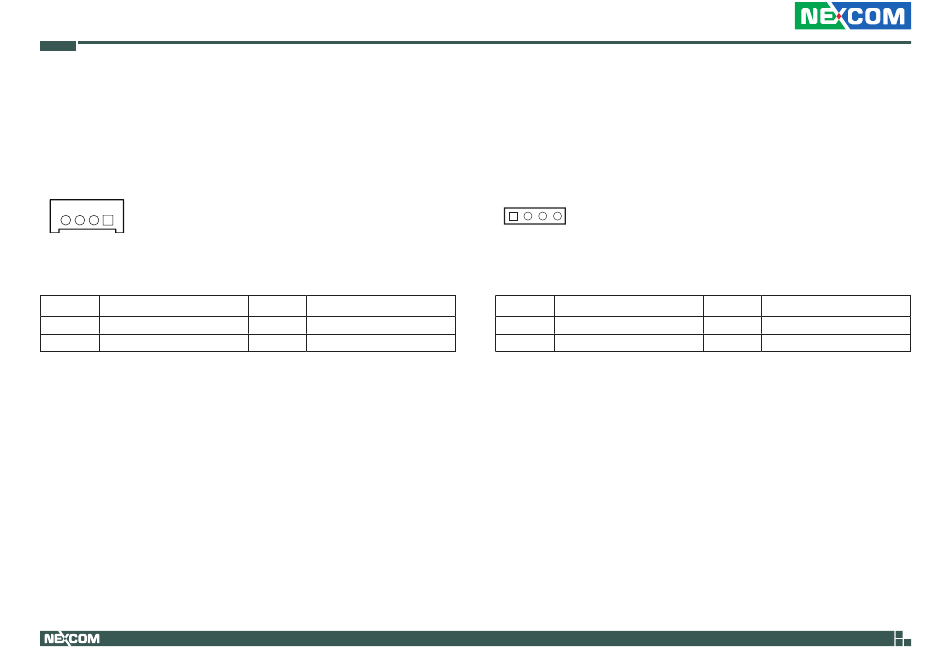

USB Connectors

Connector type: 1x4 4-pin header JST, 2.0mm pitch
Connector location: J9 & J10
4 1
Pin Definition
1 5VSB
3 HUBUSB_DP1
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 HUBUSB_DN1
4 GND

Speaker-out Connector

Connector type: 1x4 4-pin header, 2.0mm pitch
Connector location: JP11
1 4
Pin Definition
1 AUDIO-OUT-LR+
3 AUDIO-OUT-RR+
49
Pin Definition
2 AUDIO-OUT-LR-
4 AUDIO-OUT-RR-
