Chapter 1: Product Introduction
Knowing Your IPPC 1560T Series

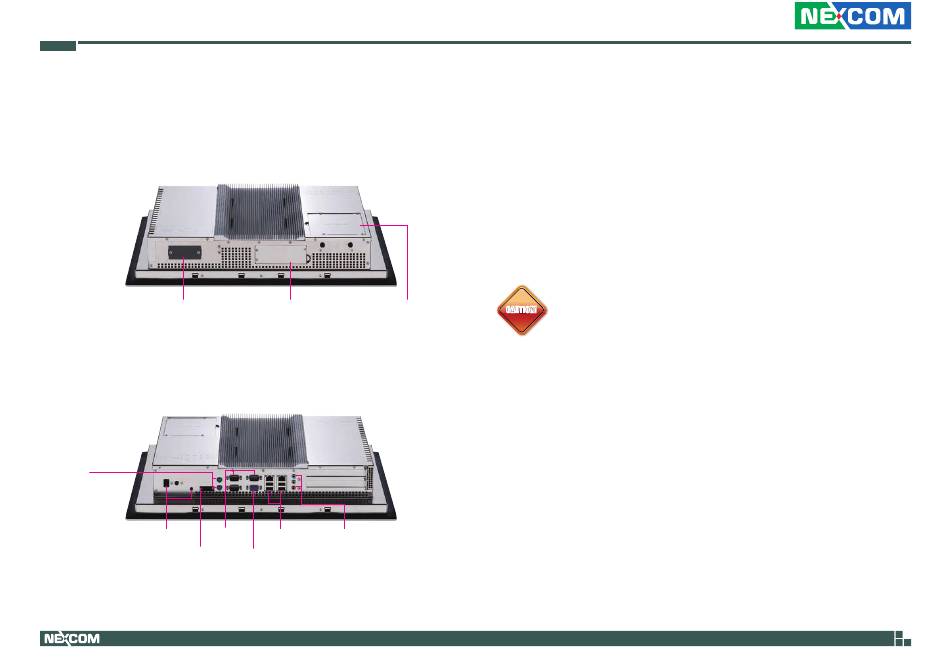

IPPC 1560TP2E-DC Rear Top
Fieldbus (Universal Kit)
IPPC 1560TP2E-DC Rear Bottom
PS/2
KB/MS
Power &
COM1~3
Reset Switch
DC Input
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Fieldbus (Special Kit)
2.5" HDD/SDD
Drive Bay
LAN & USB
Audio Connectors
VGA
Fieldbus (Universal Kit and Special Kit)
Expansion slots for add-on fieldbus modules.
2.5" HDD/SDD Drive Bay
Used to install a 2.5" HDD/SSD.
Power Switch
Press to power-on or power-off the system.
Reset Switch
Press this button to restart the system.
DC Input
Used to plug a DC power cord (terminal block connector).
Please use 12-28 AWG wire size and tighten the terminal block
CAUTION!
CAUTION!
CAUTION!
with a torque value of 4.5 lb-in.
PS/2 KB/MS
Used to connect a PS/2 keyboard and a PS/2 mouse.
COM 1 to COM 3
COM 1 and COM 2 ports have 2.5kV isolated protection and support
RS232/422/485 compatible serial devices.
COM 3 supports RS232 and 5V, 12V or RI by selection.
VGA
Used to connect an analog VGA monitor.
LAN
Used to connect the system to a local area network. LAN1 supports Wake
up on LAN.
USB
Used to connect USB 2.0/1.1 devices.
Audio Connectors
Line-in, mic-in and line-out ports used to connect audio devices such as
external microphones, speakers and headphones.
13
IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual
