Chapter 1: Product Introduction

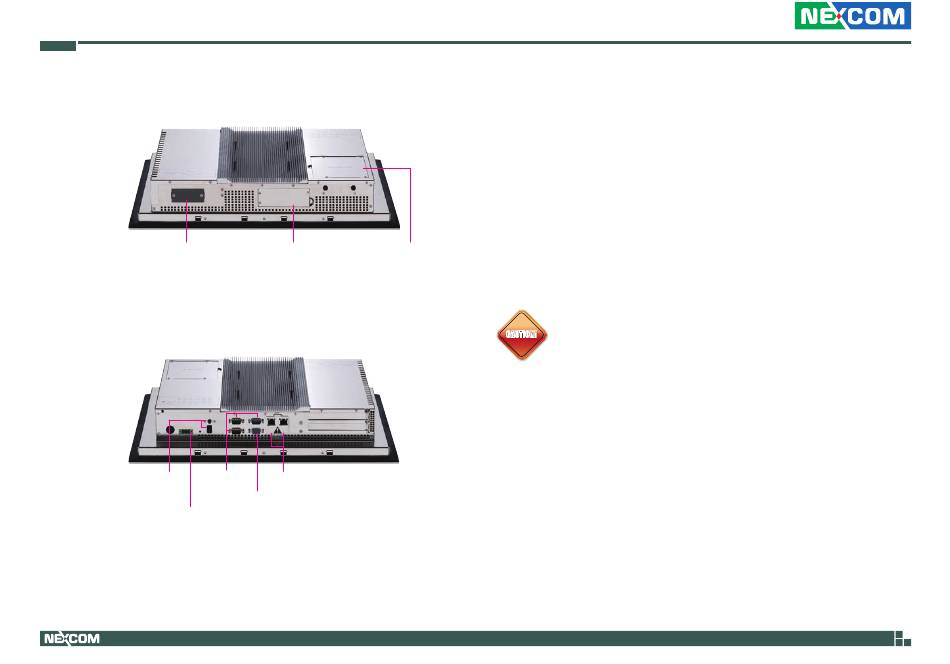

IPPC 1560TE Rear Top

Fieldbus (Universal Kit)

IPPC 1560TE Rear Bottom

Power & COM1~3
Reset Switch
DC Input
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Fieldbus (Special Kit) 2.5 HDD
Drive Bay
LAN
VGA
Fieldbus (Universal Kit and Special Kit)
Expansion slots for add-on fieldbus modules.
2.5" HDD/SDD Drive Bay
Used to install a 2.5" HDD/SSD.
Power Switch
Press to power-on or power-off the system.
Reset Switch
Press this button to restart the system.
DC Input
Used to plug a DC power cord.
Please use 12-28 AWG wire size and tighten the terminal block
CAUTION! CAUTION!
CAUTION!
with a torque value of 4.5 lb-in.
COM 1 to COM 3
COM 1 and COM 2 ports have 2.5kV isolated protection and support
RS232/422/485 compatible serial devices.
COM 3 supports RS232 and 5V, 12V or RI by selection.
VGA
Used to connect an analog VGA monitor.
LAN
Used to connect the system to a local area network. LAN1 supports Wake
up on LAN.
