Chapter 1: Product Introduction

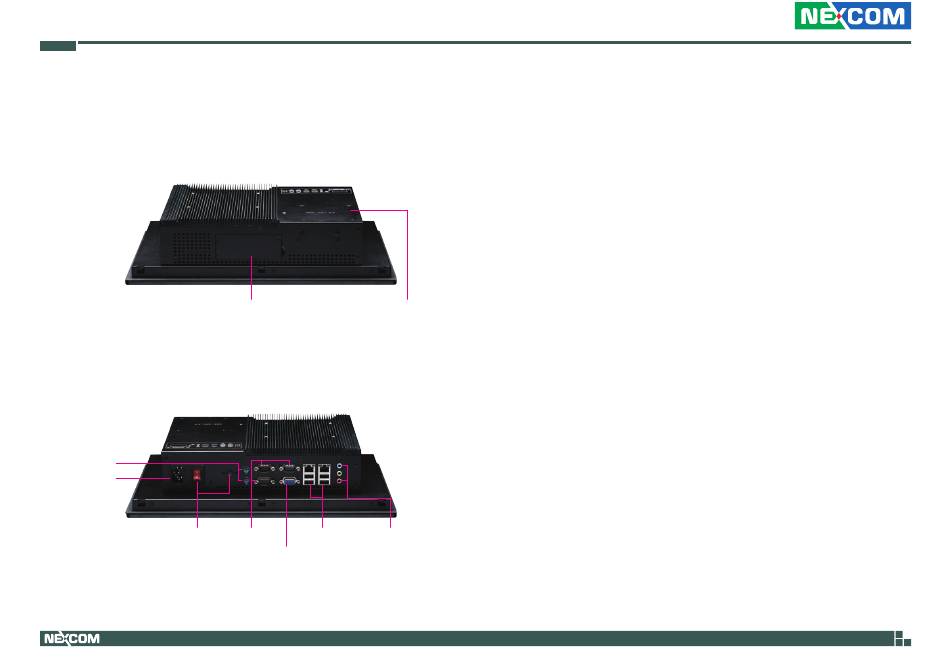

Knowing Your APPC 1560T

APPC 1560T Rear Top

Fieldbus (Special Kit)

APPC 1560T Rear Bottom

PS/2
KB/MS
AC Input
Power &
Reset Switch
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
2.5" HDD/SDD
Drive Bay
COM1~3 LAN & USB Audio Connectors
VGA
Fieldbus (Special Kit)
Expansion slots for add-on fieldbus modules.
2.5" HDD/SDD Drive Bay
Used to install a 2.5" HDD/SSD.
Power Switch
Press to power-on or power-off the system.
Reset Switch
Press this button to restart the system.
AC Input
Used to plug a AC power cord.
PS/2 KB/MS
Used to connect a PS/2 keyboard and a PS/2 mouse.
COM 1 to COM 3
COM 1 and COM 2 ports have 2.5kV isolated protection and support
RS232/422/485 compatible serial devices.
COM 3 supports RS232 and 5V, 12V or RI by selection.
VGA
Used to connect an analog VGA monitor.
LAN
Used to connect the system to a local area network. LAN1 supports Wake
up on LAN.
USB
Used to connect USB 2.0/1.1 devices.
Audio Connectors
Line-in, mic-in and line-out ports used to connect audio devices such as
external microphones, speakers and headphones.
